Fiber Optic OM3 OM4 MTP MPO to LC Breakout Cable 8F 12F 24F 3.0mm LSZH

Categories MPO MTP
Brand Name: TAKFLY
Model Number: MPO/MTP Patch Cord
Certification: CE, ROHS, REACH, CPR, ANANTEL, ISO9001, ISO14001
Place of Origin: Shenzhen, China
MOQ: 1 Piece
Price: USD
Payment Terms: T/T, Western Union, Paypal etc.
Delivery Time: 3-7 Working Days After Received The Payment
Packaging Details: Plastic bags + Cartons
Product name: Fiber Optic OM3 OM4 MTP MPO to LC Breakout Cable 8F 12F 24F 3.0mm LSZH
Connector: MPO / MTP / LC / SC / FC / ST etc.
Fiber Count: 8, 12, 16, 24 or Customized
Cable Length: 1M. 2M . 3M . 5M. 10M or Customized
Fiber type: SM(G652、G657);MM(OM1-OM5)
Insertion loss(dB): Standard:≤0.7(Max) Low Loss:≤0.35(Max)
Test Wavelength: SM:1310/1550nm ; MM:850/1300nm
Outer Sheath Material: PVC、LSZH、TPU
Application: FTTH FTTB FTTX Network, Telecom network, Data Center, fiber patch cord for Telecom, Fiber Optic Tool
Bending radius (Static/Dynamic): 10D/20D
Operating temperature: -20 to 70℃
Storage Temperature: -40 to 80℃
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Fiber Optic OM3 OM4 MTP MPO to LC Breakout Cable 8F 12F 24F 3.0mm LSZH

Fiber Optic OM3 OM4 MTP MPO to LC Breakout Cable 8F 12F 24F 3.0mm LSZH


Fiber Optic Breakout Cable MTP/MPO-LC - Applications:
Asynchronous Transmission Mode(ATM)
Gigabit Ethernet
Active Deviced/Transceiver Interface
CATV, Video and Multimedia
Premise Installations
Telecommunication Networks
Parallel optical interconnect between PC Cards and patch panels
Interconnection for O/E modules
Industrial & Military
Optical Switch interframe connections
Fiber Optic Breakout Cable MTP/MPO-LC - Features:
Precision molded MT ferrule
High precision guide pins for exact alignment
Compact design, up to 4,8,12,24 fibers
IEC 61754-7 Compliant
EIA/TIA-604-5 Compliant

Fiber Optic Breakout Cable MTP/MPO-LC - Specifications:

ItemLC,SC,ST,FC.......MPO/MTP
End face typePC,UPC and APCPC and APC
Fiber typeSM(G652,G655,G657);MM(OM1-OM5)
Core number12,24
Cable Diameter0.9,2.0,3.0

Mini Round cable:Max4.5mm;

Ribbon cable:Max3.0*5.0mm

Insertion loss(dB)≤ 0.3

Standard:≤0.35/0.7(Typical/Max)

Low Loss:≤0.2/0.35(Typical/Max)

Return loss(Min)

UPC SM:40dB APC SM:60 dB

PC MM:25 dB

SM: APC:60dBMM: PC:20dB

Test Wavelength

(nm)

SM:1310/1550

MM:850/1300

Repeatability≤ 0.1dB
Durability≤ 0.2dB
Interchangeability≤ 0.2dB

Operating

Temperature

-20℃~70℃

Storage

Temperature

-40℃~80℃

Outer Sheath

Material

PVC,LSZH

Bending radius

(Static/Dynamic)

10D/20D
LengthCustomized

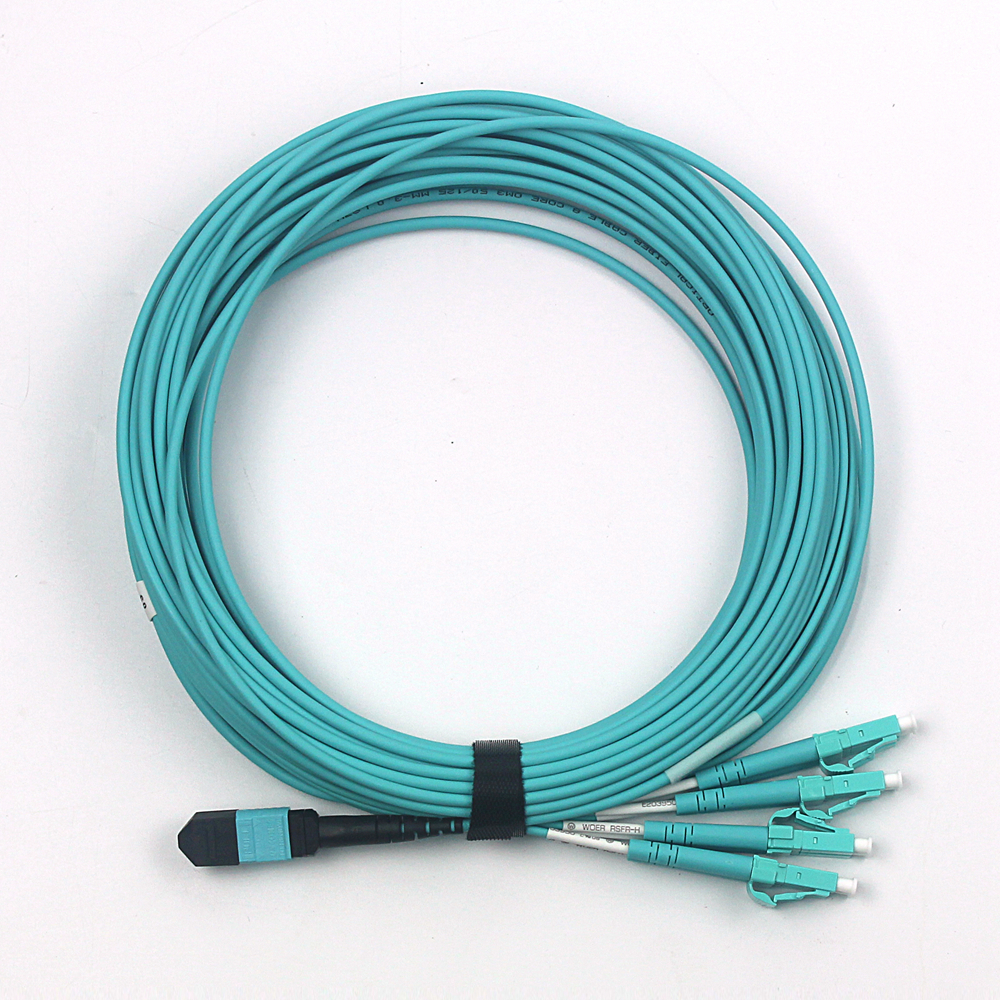

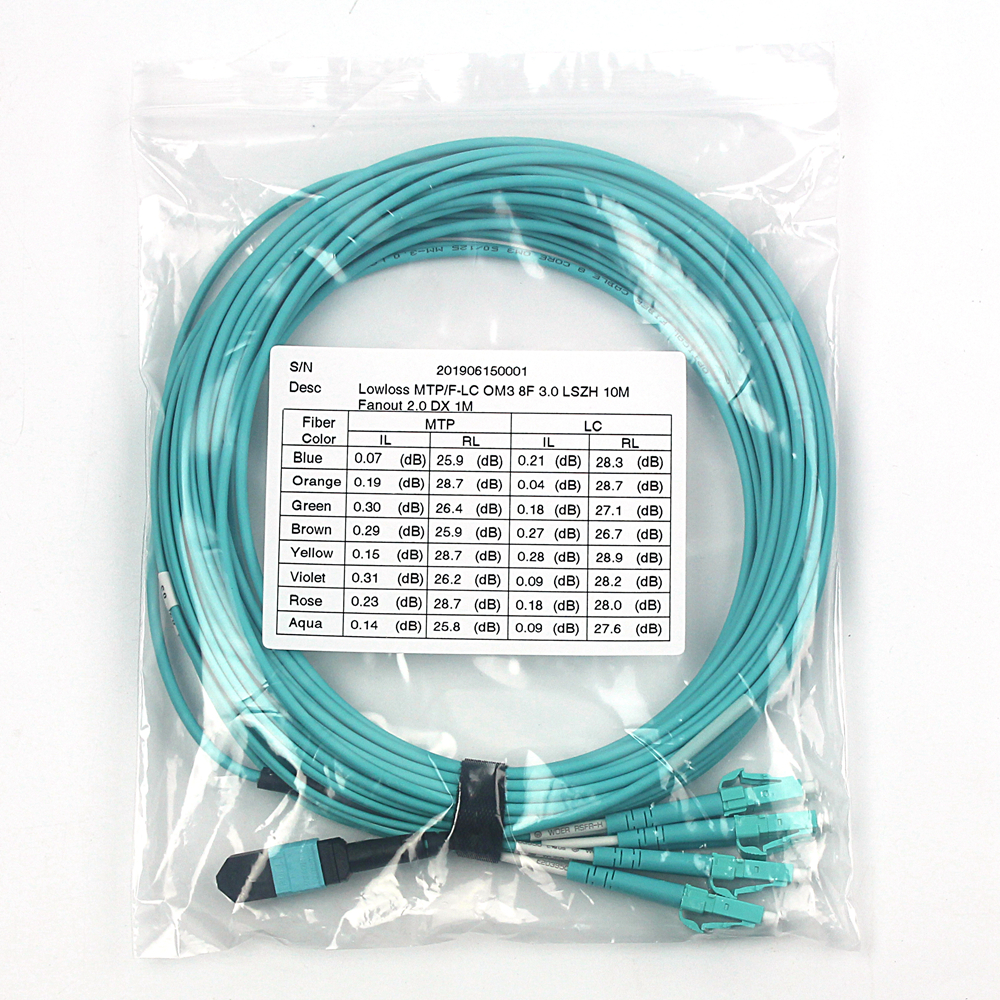

Fiber Optic Breakout Cable MTP/MPO-LC - Product Pictures:


Fiber Optic Breakout Cable MTP/MPO-LC - Applications:


Fiber Optic Breakout Cable MTP/MPO-LC - TAKFLY Overview


Fiber Optic Breakout Cable MTP/MPO-LC - TAKFLY Services:
1.Order inquiry: Keep working 24 hours to gurantee the first reply to clients,no Cellphone power off all the day
2.Order production: Keep very close touch with production department to gurantee the right delivery time to clients
3.Before shipment: Our sales would double check the order quantity,package and strength of cartons to avoid lost and damage
4.After shipment: Keep tracking shipping status and reporting to clients
5.Shipment: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR etc.


If you interest or have any question, Why not send inquiry? Welcome & Just Do It !!!
