Automatic Remote Control Door Opener Sliding Door Opener For 1000kg Chain Driven

Categories Automatic Door Openers
Brand Name: SONGRUI
Model Number: SL1000ACL
Certification: CE
Place of Origin: China
MOQ: 50 SETS
Price: Negotiable
Payment Terms: T/T
Supply Ability: 10000 Set/Sets per Month
Delivery Time: 5-8 WORK DAYS
Packaging Details: 340*290*373cm
Power supply: 220V/50Hz;110V/60Hz
Motor power: 280W
Gate moving speed: 11-13m/min
Maximum weight: 600kg
Remote control distance: ≥30m
Limit switch: Spring limit switch / Magnetic limit switch
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

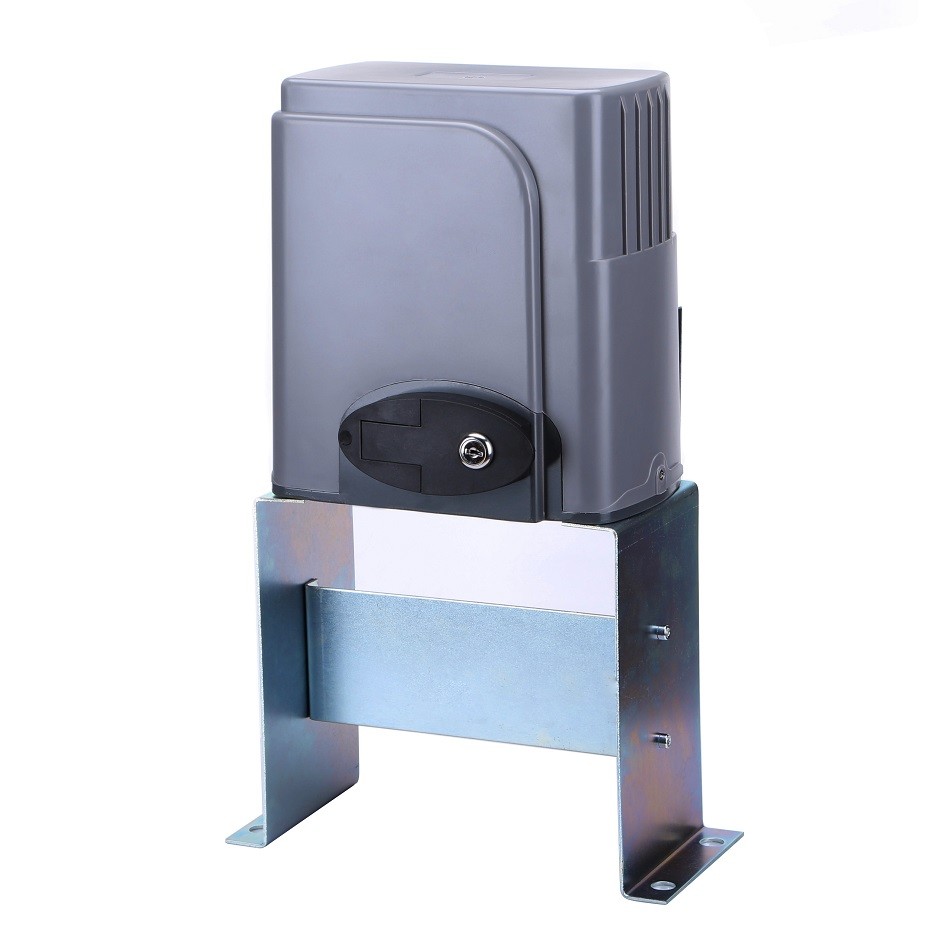

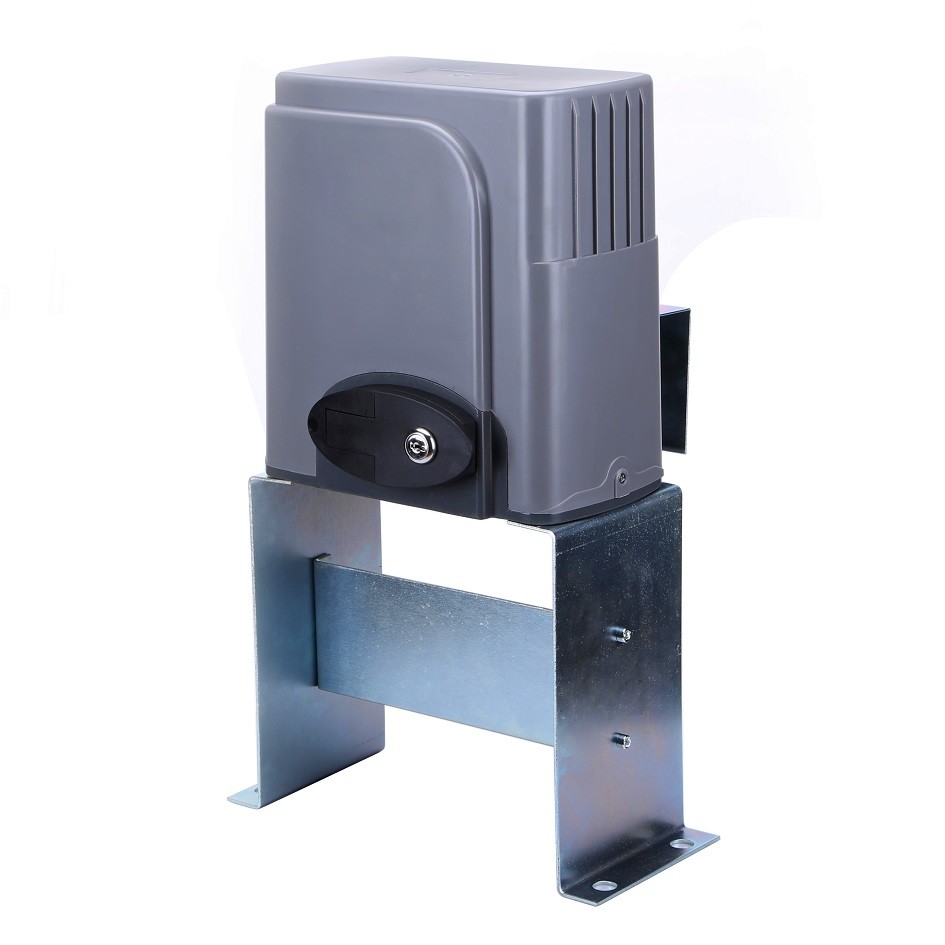

Automatic Remote Control Door Opener Sliding Door Opener For 1000kg Chain Driven


Automatic Remote Control Door Opener/Sliding Door Opener for 1000kg Chain Driven
Chain driven sliding gate opener is widely used in Europe and America.

Main Features:
1. AC motor with built-in control unit.
2. Keypad / single button interface.
3. Alarm lamp, photo beam & safty beam interface.
4. User can select auto-close function.
5. Soft start and slow stop. (Smart version)
6. Auto-reverse function when hitting obstacle during closing. (Smart version)
7. Manual key release design for emergency purposes.

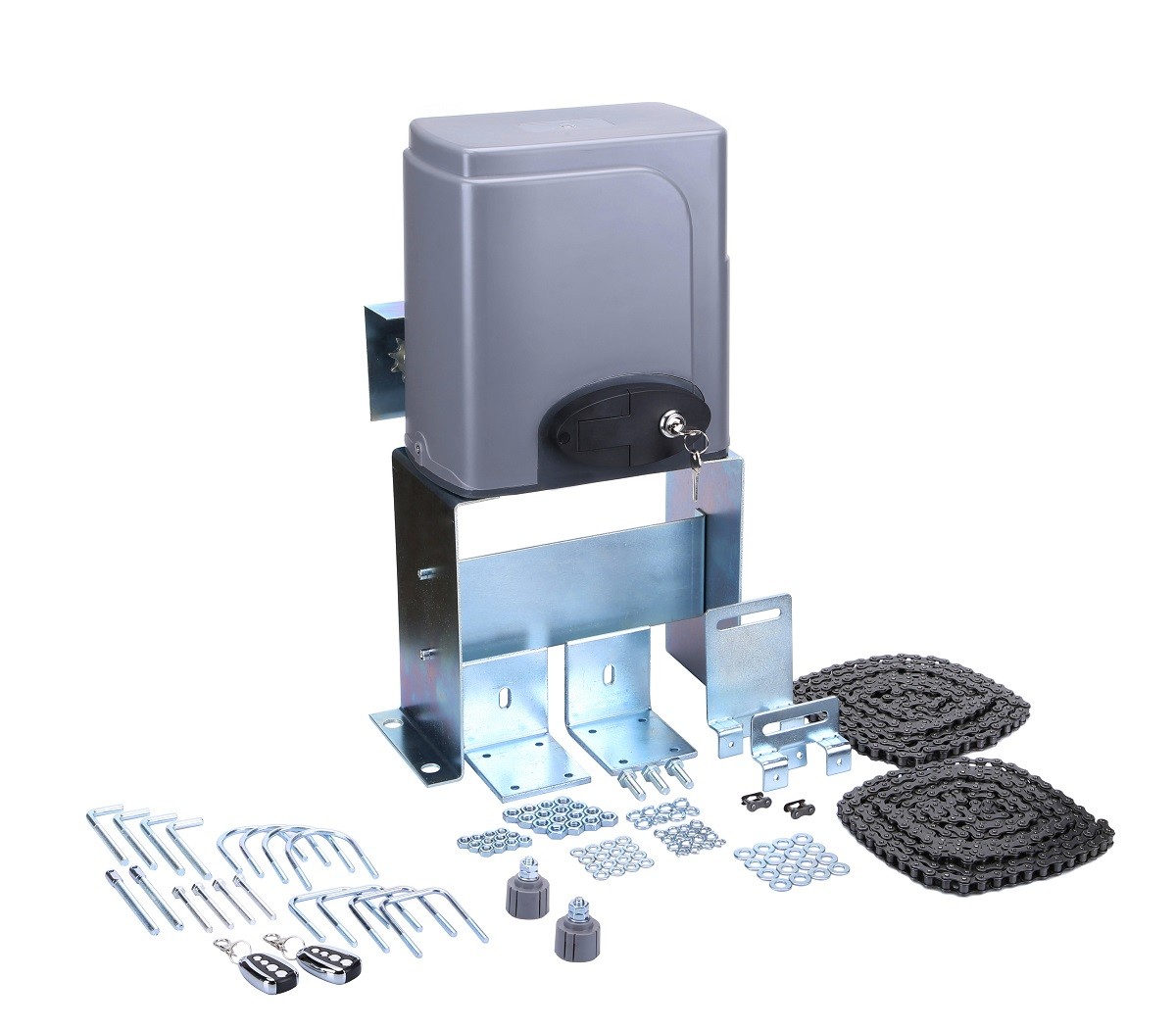

Standard unit:

  • SL1000ACL main engine 1PC
  • Control board 1SET
  • Remote control 2PCS
  • Manual release key 2PCS
  • Chain 20FT
  • User manual 1PC
Mounting accesories(unassembled baseplte,screws &nuts, limit switch blocks) 1SET


Main technical parameters:

Unit ModelSL1000ACSL1000ACLSL1500ACSL1500ACL
Power SupplyAC220V/50Hz; AC110V/60Hz
Maximum Gate Weight1000kg1500kg
Motor Power400W550W
Output Torque22N.m32N.m
Output Shaft Height50mm
Limit Switchmagnetic limit switch or spring limit switch
Gate Moving Speed11-13m/min
Remote Control Range≥30m
Recording of Up Remotes25
Frequency433.92MHz
Work DutyS2 15min
Noise≤58db
Working Temperature-20℃~+50℃
Driving ModeGearChainGearChain
Package Weight13kg22.50kg14kg23.50kg

Our service:

Welcome OEM&ODM orders

1. Logo printing on products;
2. Customized color box or carton;
3. Any your ideas on products we can help you to design and put it into production.
