Home > Industrial Filtration Equipment >

GMP Auxiliary Machine 18-90m2 Pulse Jet Fabric Filter With Hop Pocket

Categories Auxiliary Machine
Brand Name: JingSu ShengMan
Model Number: RLY
Certification: CE and ISO9001
Place of Origin: China
MOQ: 1set
Price: USD20000-USD300000
Payment Terms: L/C, T/T
Supply Ability: 10sets
Delivery Time: 60-90days
Packaging Details: Plywood Cases
Condition: New
Warranty: 1 year
Voltage: Customized
Machine Type: pluse filter
Heating System: Steam,Electronic,oil
Standard: GMP
Material: stainless steel
dimension: requirement from customer
application: pharmaceutical, food, chemical
filtering area: 18-90㎡
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

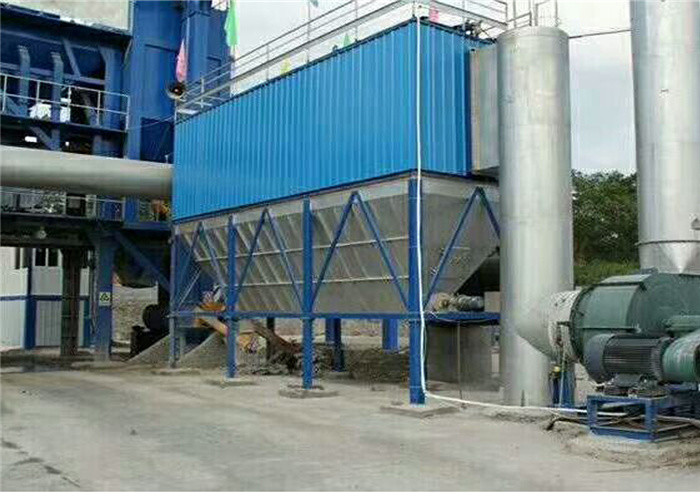

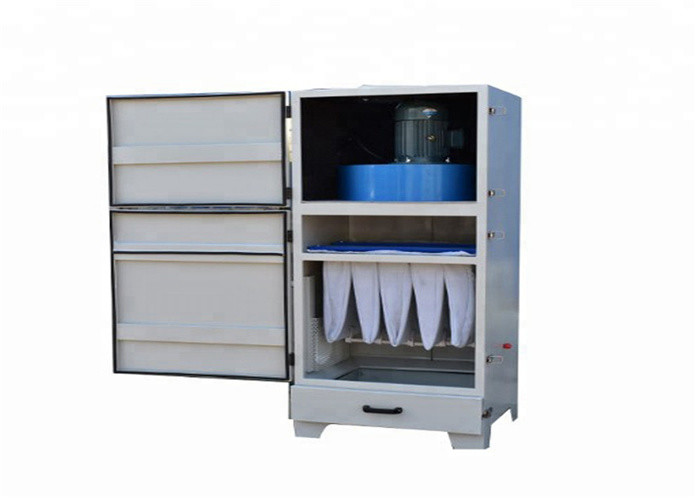

GMP Auxiliary Machine 18-90m2 Pulse Jet Fabric Filter With Hop Pocket

MC series pluse filter with hop-pocket for food, feed, chemical, building material amd other industries

Descriptions

On the basis of MC-I spec, the square spec pulse dust filter with cloth bag MC-II is the amended and improved one. In addition to the advantages that I spec is high in the dust removing efficiency, big in the air capacity, stable in the performance, easy in operation and maintenance, MC-II has the better result than MC-I. Such as: it is not easy to build up the powder and its application is wide and so on. The device is widely used for the ventilation, dust removing and powder restoration in the grain, food, feed, metallurgical, chemical, building material, medical and other industries.



Technical Parameters


parametersspecMC24MC36MC48MC60MC72MC84MC96MC120
Filtering area(m2)1827364554637290
Filtering bag number(piece)24364860728496120
Filtering air speed(L/m2.s)20-4020-4020-4020-4020-4020-4020-4020-40
Filtering air volume(m3/h)1300-26001950-39002600-52003240-64803900-78004550-91005200-105006500-13000
Max. Overall dimension (mm)L10001400180022002600300035604360
W×H1450×37001450×38501450×4100
Dust removerPulse valve number4681012141620
Compressed air consumption(m3)0.07
-0.30
0.11
-0.40
0.15
-0.50
0.18
-0.60
0.22
-0.60
0.25
-0.90
0.29
-0.90
0.37
-0.90
Compressure air pressure
(kg/cm2)
5-7

Note: because the raw material exist in difference, the output in the table is for reference only




Pre-service:
As a good and rich experience supplier, we should offer customer the best quality and best price of the machine.
1. Introduce the suitable product to the customer in detail, answer the question raised by customer carefully.
2. Make the suitabe project as the customer requirement and make sure the machine is suitable for the material.

Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (
2). Delivery on time. (3). Provide full set of documents as customer’s requirements.


After-sale service:
Provide considerate services to minimize clients’ worries.

1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.


Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.

2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.

3. Send every client a preferential quotation.



Jiangsu Shengman Drying Equipment Engineering Co.,Ltd, established in 2011, known as a local leading high-tech enterprise, is located in Zhenglu town, Changzhou, Jiangsu, China. Shengman is a large-scale production enterprise in China drying industry with a registered capital of 35,000,000 RMB, specialized in designing &manufacturing various kinds of dryers, granulators, mixers, grinders ,dust removers, etc. Shengman owns an area of over 200,000㎡, and realizes annual sales of over 70,000,000RMB for consecutive years. Shengman has passed European Union CE authentication, ISO 9001 quality management system certification and got good bank credit for AAA. Now Shengman has been one of the largest drying equipment production enterprises in East China and keeping leading the drying industry’s development.
