Name: 524V 24mm Planetary Brushless DC Gear Motor Applied In Cordless Drill
Brand: SECORE
Price: 1 USD

Home > DC Motor >

5-24V 24mm Planetary Brushless DC Gear Motor Applied In Cordless Drill

Categories	Brushless DC Gear Motor
Brand Name:	SECORE
Model Number:	BLS2418I-GB
Certification:	CE, RohS
Place of Origin:	China,Guangdong
MOQ:	500
Price:	Negotiated The Price
Payment Terms:	T/T, D/A
Supply Ability:	100000pcs per month
Delivery Time:	15-18 working days
Packaging Details:	500pcs per carton or as request
Speed RPM:	5000-7000 or customized
Rated voltage:	6-24V
Rated Torque:	0.1~0.3（NM）or as request
Type:	gear BLDC motor, brushless electric motor, planetary motor
Typical application:	cordless drill, pump,personal care etc
Continuous current:	0.1-0.6A
Model number:	BLS2418I-GB
Dimension:	∮24*18（mm）
Construction:	pernanent magnet
Commutation:	brushless

Contact Now

Add to Cart

Company Info.

Shenzhen Secore Technology Co.,Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

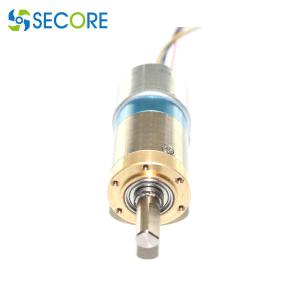

5-24V 24mm Planetary Brushless DC Gear Motor Applied In Cordless Drill

5-24V 24mm brushless dc planetary gear motor applied in cordless drill

Main features:

Size: φ24.0* 36.0mm-24.0*57mm

Built-in driver

PWM pulse wide speed range

Clockwise/counter-clockwise rotation

FG speed feedback signal

Low EMC

Low noise

Long life: 20000hrs Min.

Over-current protection

Over-voltage protection

Under-voltage protection

OEM and ODM orders are welcome

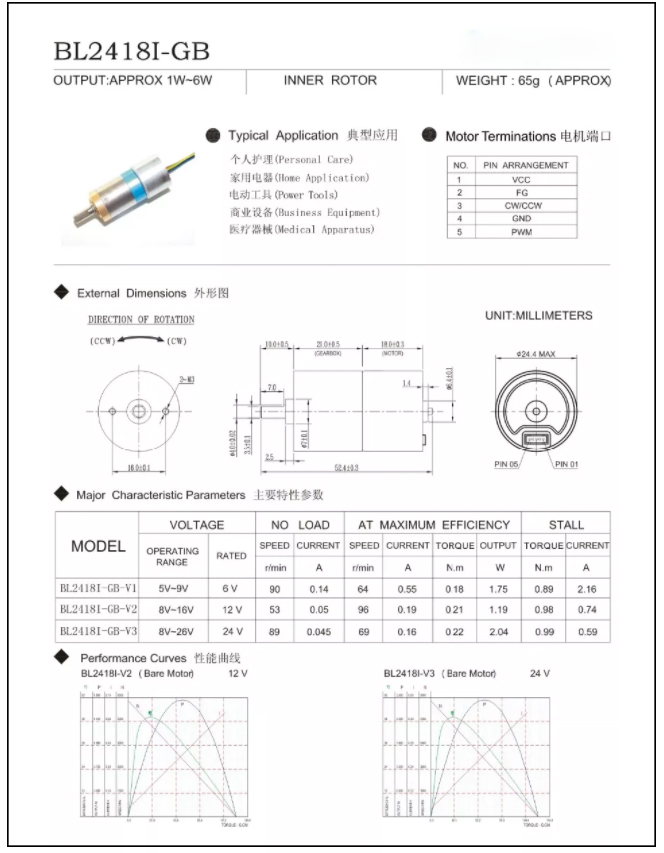

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY				STALL
	OPERATING RANGE	RATED	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
	OPERATING RANGE	RATED	r/min	A	r/min	A	N.m	W	N.m	A
BLS2418I-GB-V1	5V~9V	6V	90	0.14	64	0.55	0.18	1.75	0.89	2.16
BLS2418I-GB-V2	8V~16V	12V	53	0.05	96	0.19	0.21	1.19	0.98	0.74
BLS2418I-GB-V3	8V~26V	24V	89	0.045	69	0.16	0.22	2.04	0.99	0.59

More models for further reference:

Model #	BLS2413O	BLS2713O	BLS2717O	BLS2719O	BLS2717O	BLS4225O	BLS4548F	BLS5550F
Type	BLDC Motor	BLDC Motor	BLDC Motor	BLDC Motor	BLDC Motor	BLDC Motor	BLDC Motor	BLDC Motor
Size (mm)	Φ24.0*H13	Φ27.0*H13	Φ27.0*H17	Φ27.0*H19	Φ37.0*H17	Φ42.0*H26	Φ45.4*H55	Φ55.0*52.0
Voltage (V)	5~26VDC	5~26VDC	5~26VDC	5~26VDC	8~26VDC	8~26VDC	8~25.2VDC	8~25.2VDC
RPM	10,000~20,000	6000~15,000	5000~30,000	5000~30,000	5000~30,000	5000~40,000	30,000~100,000	30,000~100,000
Power (W)	20W	20W	35W	45W	65W	130W	120W	250~300W
Weight(g)	50g	55g	60g	65g	70g	125g	100g	150g
Typical application	sweeper, vacuum cleaner	sweeper, drive wheel chair	small power window cleaner, vacuum cleaner	high power sweeper, window cleaner	high power window cleaner	Hand-held vacuum cleaner	High-speed handheld vacuum fan	High-speed handheld vacuum fan

Model #	BLS2418I	BLS2419I	BLS2430I	BLS2838I	BLS3640I	BLS2413O	BLS4220O
Type	inner BLDC Motor	inner BLDC Motor	inner BLDC Motor	inner BLDC Motor	inner BLDC Motor	outer BLDC Motor	outer BLDC Motor
Size (mm)	Φ24.4*H18.1	Φ24.4*H19.0	Φ24.4*H30.8	Φ28.0*H37.6	Φ36.0*H40.0	Φ24.0*H13.0	Φ40.5*H21.0
Voltage (V)	3.7~26VDC	3.7~26VDC	3.7~26VDC	3.7~26VDC	3.7~26VDC	3.7~26VDC	100~240VDC
RPM	3000~10,000	3000~12,000	2000~12,000	3000~15,000	3000~10,000	3000~25,000	6000~25,000
Power (W)	3~5W	5W	6~10W	10~15W	20~30W	15~25W	130W
Weight(g)	30g	35g	50g	75g	150g	50g	130g
Typical application	electric razor, electric hair trimmer, hair curler	electric hair trimmer, hair curler	electric razor, electric hair trimmer	electric razor, electric hair trimmer	pet electric hair trimmer	household hair dryer	hair dryer

TO BE TAILORED

♦ Customized voltage, motor performance

♦ Customized mounting, shaft dimension, and lead configuration

♦ EMI/RFI suppression circuit

♦ Overload protection, thermal protection

♦ High temperature and waterproof option

♦ Integrated gearbox, controller, encoder and brake

If there is no suitable specifications, it can be customized according to actual needs.

About us

Shenzhen Secore Technology Co.,Ltd is professionally engaged in various of motors such as brushless dc motors, high voltage brushed dc motors, gear motors, integrates R&D, mass production, sales and service with 25 lean production lines( currently 3 automatic production lines ), monthly capacity of continuous growing 3 million units and annual average sales value 40 million dollars.

Typical Application:

-Office apparatus and medical devices

• Printer, Copier, Projector, Shredder

• Sphygmomanometer

- Power tool and fitness equipment

• Electric screwdriver, Electric hydraulic pliers, Electric scissors,

• Fascia gun, massage chair, treadmill

-Household appliances and personal care

• Air purifier, smart toilet, hair dryer, hair curler

• Blender, sweeper, window cleaner, small household appliances
