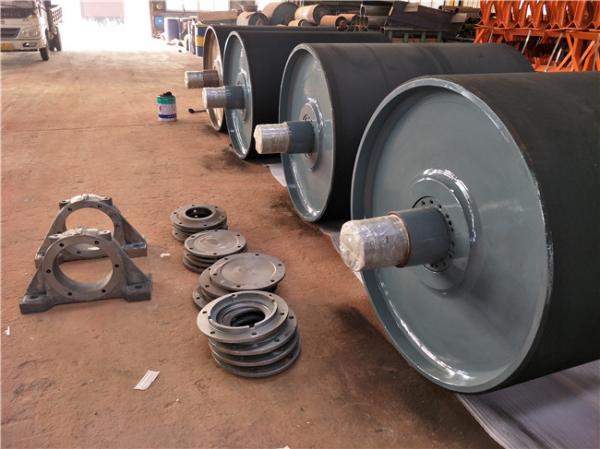

Belt Rubber Lagging Pulley

Belt Rubber Lagging Pulley

Rubber Lagging Drum Driving Conveyor Pulley for Chemical Fertilizer Plant

For the negative phenomena of ordinary pulley(taking drive pulley for example) such as belt slippage and deviation in the harsh environment applications,the paper proposes a new type of ceramic lagging pulley which vulcanizes left/right-handed rubber layers at both ends of the pulley in consideration of preventing conveyor belt from deviation and selects the reasonable ceramic pieces from the view of bionics,to maximize the traction of pulley and the friction on the contact surface of the pulley.The pulley adopts the herringbone ceramic lagging at the middle part and preserves sewage drainage trench on the entire surface,to increase the traction of the pulley and achieve the self-cleaning function of pulley.

The ceramic drum pad has an extremely effective function in humid or dirty environments, where sometimes slippage in the area of the conveyor belt can be observed. The ceramic has excellent water conductivity and the design allows the adhesive materials to be drained along the column. The ceramic inserts significantly increase the adhesion and friction between the drum and the belt and reduce the tension of the belt. The ceramic lagging sheet has an extremely effective function in a humid and dirty environment. It has an excellent water drainage ability and its special design allows the adhesive materials to drain along the columns. The ceramic sets significantly increase the adhesion and friction between the pulleys and the conveyor belts, while it also decreases the tension of the belts. It reduces the slippage and tilt risk, meanwhile, it has extremely high abrasion resistance. The belt tension can be reduced by using a ceramic lagging sheet. The water drainage ability is good and it has a long service life.

The driving drum pulley of an ordinary belt conveyor is generally composed of an independent motor, a reducer, and a drum. This type of driving structure has a large bearing range, but the body is heavy and covers a large area. It is not suitable for the narrow space at the top of the coal mixing tank. Therefore, the built-in electric drum can be used. Because the motor and reducer are built into the drum body, it has the characteristics of compact structure, small size, light weight, and neat appearance. It can be used in a small on-site working space, but due to multiple The belt conveyor needs to change direction continuously, can convey different materials separately, and the transportation volume is large, which determines that the drive mechanism of multiple equipment must have sufficient transportation performance and can change directions frequently to meet the needs of on-site production operations;

Pulley/Core Diameter - The outside diameter of the cylindrical body of a conveyor pulley, without coating.
Finish Diameter - The outside diameter of a coated pulley (core diameter + 2 times the coating/wrap thickness).
Face Width - The length of a pulley's cylindrical body. This area is intended to act as the contact surface for the conveyor belt.
Wall/Rim Thickness- The initial thickness of the tube, pipe, or formed plate that makes up the cylindrical body of the pulley.
End Disks - The plates welded on the ends of a pulley which act as the medium between the hub and rim.
Crown/Profile- A change in the shape of the pulley face designed for the purpose of enhancing belt tracking.
Shaft/Axle - The mounting mechanism for the pulley assembly.
Hub - The point of connection between the shaft and end disk or pulley wall.
Bore Diameter - The inner diameter of a pulley at the point where the shaft is inserted
Bearing Centers - The distance between the center lines of each bearing race in which a pulley is mounted.
Hub Centers - The distance between the center line of each hub contact surface.
Safety Factor - The capacity of a system or component to perform beyond its expected load

conveyor pulley Description

Drum Pulleys
30''-63'' FACE WIDTH
DIA.	XT HUB	QD HUB	MAX.BORE	FACE WIDTH (INCHES)
10''	XT25	SF	2 1/2	30,32,36,38,40,42,44,46,51
	XT30	E	3
	XT35	F	3 1/2
12''	XT25	SF	2 1/2	30,32,36,38,40,42,44,46,51
	XT30	E	3
	XT35	F	3 1/2
14''	XT25	SF	2 1/2	30,32,36,38,40,42,44,46,51
	XT30	E	3	30,32,36,38,40,42,44,46,51
	XT35	F	3 1/2	30,32,36,38,40,42,44,46,51,54,57,60,63
	XT40	JS	4	30,32,36,38,40,42,44,46,51,54,57,60,63
16''	XT25	SF	2 1/2	30,32,36
	XT30	E	3	30,32,36,38,40,42,44,46,51,54,57,60,63
	XT35	F	3 1/2
	XT40	JS	4
	XT45	MS	4 1/2	38,40,42,44,46,51,54,57,60,63
18''	XT25	SF	2 1/2	30,32
	XT30	E	3	30,32,36,38,40,42,44,46,51,54,57,60,63
	XT35	F	3 1/2
	XT40	JS	4
	XT45	MS	4 1/2
	XT50	NS	5	38,40,42,44,46,51,54,57,60,63
20''	XT25	SF	2 1/2	30,32,36
	XT30	E	3	30,32,36,38,40,42,44,46,51,54,57,60,63
	XT35	F	3 1/2
	XT40	JS	4
	XT45	MS	4 1/2
	XT50	NS	5	32,36,38,40,42,44,46,51,54,57,60,63
24''	XT30	E	3	30,32
	XT35	F	3 1/2	30,32,36,38,40,42,44,46,51,54,57,60,63
	XT40	JS	4
	XT45	MS	4 1/2
	XT50	NS	5
	XT60	PS	6	36,38,40,42,44,46,51,54,57,60,63
30''	XT30	E	3	30,32,36
	XT35	F	3 1/2	30,32,36,38,40,42,44,46,51,54,57,60,63
	XT40	JS	4
	XT45	MS	4 1/2
	XT50	NS	5
	XT60	PS	6
	XT70	WS	7	44,46,51,54,57,60,63
	XT80	WS	8	60,63
36''	XT35	F	3 1/2	30,32,36
	XT40	JS	4	30,32,36,38,40,42,44,46,51,54,57,60,63
	XT45	MS	4 1/2
	XT50	NS	5
	XT60	PS	6
	XT70	WS	7	36,38,40,42,44,46,51,54,57,60,63
	XT80	WS	8	54,57,60,63

Advantages
1. Wide range to meet even the toughest demands standard range for light- and medium-duty as well as specially engineered and extra-heavy-duty pulleys for special applications.
2. Precision manufacture and accurate assembly for low maintenance for continued operation, low total cost of ownership.
3. Advanced pulley design process incorporating Finite Element Analysis ensures all Joyroll pulleys are designed to world's best practice for consistent performance.Joyroll pulleys effectively and reliably transfer the drive motor load to the belt and provide support for changes in the belt direction.
4. Optimized, standardized bearing centers.
5. Weight-optimized designs.

6. Efficient locking elements.
7. High loading capacities.

Product Tags:


*From:	Your email address is incorrect!
*To:	HEBEI QINYI CONVEYING EQUIPMENT CO.,LTD
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Rubber Lagging Pulley
Brand Name:	QINYI
Model Number:	Rubber Belt Conveyor Head Pulley
Certification:	CE / ISO / FDA / SGS / TUV
Place of Origin:	china , cangzhou
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	5000 Ton/Tons per Month
Delivery Time:	10~15 days
Packaging Details:	Steel-strcuture pallet or wooden case
Product name:	Rubber Belt Conveyor Pulley
Application:	Coal mining industry, cement, harbor, crushing and screening ind
Length:	Depends on the belt width
Applicable industries:	Energy & Mining,Construction works ,Manufacturing Plant
Type:	Flat Belt,Carrying Roller,Head drive pulley
Life Time:	More Than 30000 Hours
Surface:	Rubber Lagging
Welding:	Mixed Gas Shielded Arc Welding
