| Categories | LED Driver Transformer |
|---|---|
| Brand Name: | J-STAR |
| Model Number: | JSPL-12024 |
| Certification: | CE ROHS SAA CB |
| Place of Origin: | CHINA |
| MOQ: | 100 |
| Price: | welcome your inquiry |
| Payment Terms: | T/T, Western Union, T/T, Western Unio, MoneyGram, D/P, D/A |
| Supply Ability: | 1000000 |
| Delivery Time: | 10-15DAYS |
| Packaging Details: | white inner box and carton |
| Material: | Plastic housing |
| IP Rate: | IP40 |
| Color: | Customerized |
| Usage: | LED Cabinet lamp 12V 2A |
| Warranty: | 3 years |
| DC Power: | 24W |
Ultra Thin 2A LED Strip Light Dimmable Transformer 24W For LED Cabinet Lights
Ultra Thin Led Driver 24W Multi Output AC to DC Power Supply For LED Cabinet Lights
Wholesale Smart Slim LED Driver 24W 12V DC 5A Multiple Output Port Interface LED Power Supply for Cabinet Lights
SPECIFICATION IP40
| MODEL | JSPL-12024C | |
| OUTPUT | DC VOLTAGE V | 12V |
| RATED CURRENT(A) | 2A | |
| VOLTAGE RANGE | 12±5% | |
| RATED POWER(W) | 24W | |
| RIPPLE&NOISE(mV ) | 500 | |
| LOAD REGULATION | ±5% | |
| INPUT | VOLTAGE RANGE(V) | 170～264 |
| FRE. RANGE(HZ) | 47～63 | |
| AC CURRENT(A) | 0.6～0.2 | |
| EFFICIENCY(Type) | 86% | |
| POWER FACTOR | 0.45-0.65 | |
| T.H.D | -- | |
| INRUSH CURRENT(A) | 30 | |
| LEAKAGE CURRENT((mA ) | 0.5mA /240VAC | |
| PROTECTION | OVER LOAD | automatically after fault condition is removed |
| SHORT CIRCUIT | Hiccup mode,fault condition is removed | |
| O.T.P | 130℃±10℃, | |
| OVER VOLTAGE | Shut down O/P voltage, recovers automatically after recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP.& HUMIDITY | -30℃~+50℃,20-90%RH |
| STORAGE TEMP.& HUMIDITY | -40℃~+80℃,10-95%RH | |
| DROP TEST | 1 Carton, 36 inches, 6 face, 8 corners | |
| SAFETY & EMC | SAFETY STANDARDS | EN61347-1,EN61347-2-13 |
| EMI CONDUCTION & RADIATION | Apliance to EN55015 | |
| HARMONIC CURRENT | Compliance to EN61000-3-2 CLASS C | |
| MTBF | ||

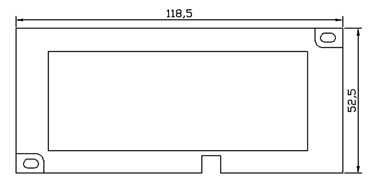

DIMENSION(mm) L*W*H (118mm*49mm*18mm)
| ||
| Weight(g) | 81 | |
APPLICATION: PIR/Door /Hand IR sensor, Mainly Applicated in LED
Cabinet, Home smart sensor lights,
Indoor controller lights, which will be more convinient for home lights.
PIR/Door /Hand IR sensor
Connection:
.
|
