ASTM NSS Lab Humidity Salt Spray Test Chamber Electronic Brine

ASTM NSS Lab Humidity Salt Spray Test Chamber Electronic Brine

ASTM NSS Lab Humidity Salt Spray Test Chamber Electronic Brine
ASTM NSS Lab Humidity Salt Spray Test Chamber Electronic Brine
Categories Salt Spray Test Chamber
Brand Name: BOTO
Model Number: BT
Certification: CE ISO
Place of Origin: CHINA
MOQ: 1 SET
Price: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000Set/month
Delivery Time: 20-30workdays
Packaging Details: PLY-WOODEN CASE
Power:: Electronic
Inner box size:: 600 * 450 * 400
Outer box size:: 1075 * 630 * 1185 * mm (w * D * h *)
Power supply:: 220 V single phase, 1.5 kW, 50 Hz
Technical basis:: operate and set according to JIS, ASTM, CNS, GB
Salt spray test:: NSS, ACSS.
Laboratory:: 35 ℃± 1 ℃.
Pressure air barrel:: 47 ℃± 1 ℃.
Time integrator:: 0 ~ 99999.99h
Pressure air tank:: 63 ℃± 1 ℃.
Contact Now
Company Info.
BOTO GROUP LTD
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ASTM NSS Lab Humidity Salt Spray Test Chamber Electronic Brine

Salt Fog Chamber Corrosion Tester Equipment Salt Spray Test Machine Salt Spray Test Chamber

Reference standard The brine spray test mainly refers to the reference standard: JIS, ASTM, CNS, GB standard parameter setting.


Application


Structure introduction

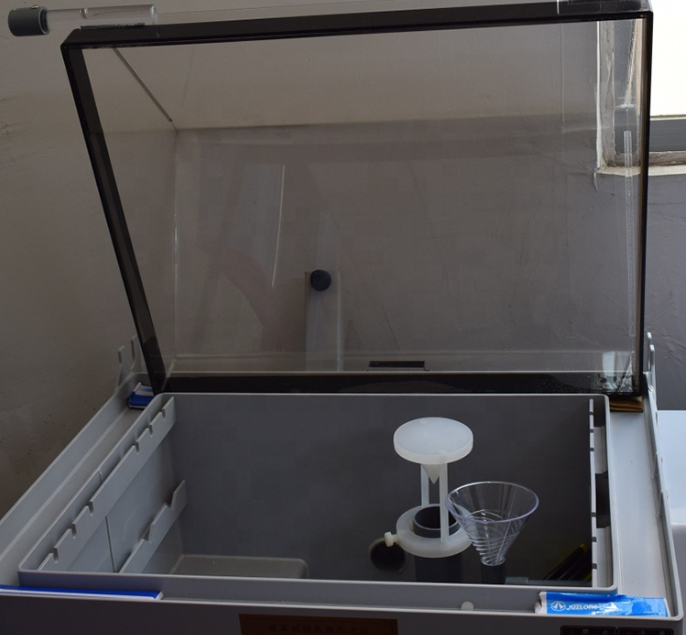

Box material
A test case is made of light gray PVC board with a thickness of 5mm and a durable temperature of 85 ℃. The structure is firm.
The second laboratory cover is sealed with transparent acrylic impact resistant plate with a thickness of 5mm. Double layer thickening inside and outside the edge to prevent distortion due to long-term high temperature. The thickness is 15mm.
It is easy to clean and operate.
The best heat preservation effect is achieved by using sus ා 304 stainless steel high pressure resistant barrel.
5. The test sample rack adopts the plane dividing type, which can adjust the angle arbitrarily, the fog falling on all sides is uniform, the fog receiving is completely consistent, the test results are accurate, and the number of test samples is large.

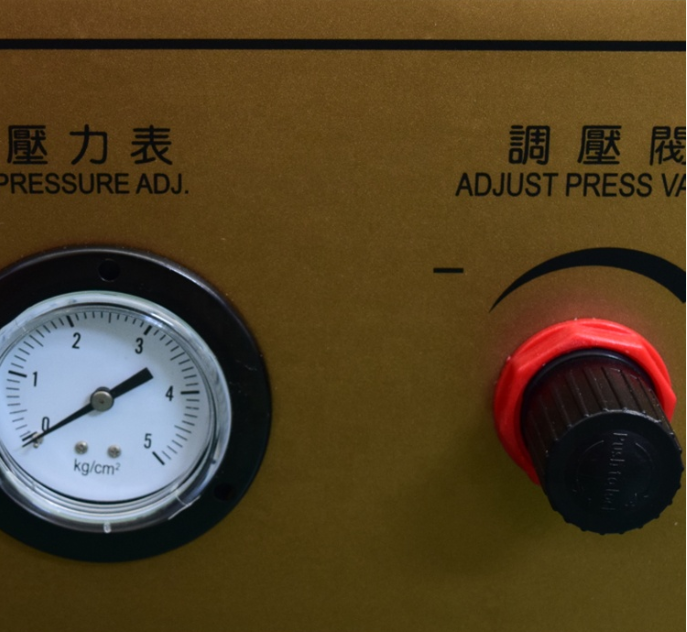

Air supply system
The air pressure is 1kg / cm2 and adjusted in two stages. The first section is about 2kg / cm2, which is equipped with inlet air filter and drainage function. The second stage is precisely adjusted 1kg / cm2, 1 / 4 pressure gauge, with accurate display.
Spray mode
One bernoult principle absorbs salt water and then atomizes. The atomization degree is uniform, and there is no blocking crystallization phenomenon, which can ensure the continuous test. The two nozzles are made of tempered glass, which can adjust the spray volume and the ejection angle. Three spray volume 1~2ml/h can be adjusted (ml/80cm2/h standard requires testing 16 hours for average). The metering cylinder adopts embedded installation, which is beautiful and neat in appearance, convenient for observation and reduces the installation space of the instrument.
PRODUCT SPECIFICATIONS
No
Item
Data
1
Model
zt-60
2
Inner box size
600 * 450 * 400 * mm (w * D * h *)
3
Outer box size
1075 * 630 * 1185 * mm (w * D * h *)
4
Power supply
220 V single phase 1.5 kW, 50 Hz
5
brine spray test
NSS and ACSS.
6
Laboratory
35 ℃± 1 ℃.
7
Pressure air barrel
47 ℃± 1 ℃.
8
Corrosion resistance test
CASS.
9
Laboratory
50 ℃± 1 ℃.
10
Pressure air barrel
63 ℃± 1 ℃
Product Effects


BOTO ADVANTAGE

Customers photos


OUR TEAM


Packing & Delivery

  • PP film first
    2. Vacuum package
    3. PP film again
    4. 10mm thickness PU foam to avoid collision
    5. Strong wooden case
    6. Standard BOTO MACHINE MARK


FAQ

1. How can we guarantee quality?
Continuous testing is performed after production is completed to ensure product stability.
All parts come from manufacturers of world-renowned brands.


2. What can you buy from us?
Checkweigher,Packing machine,CNC machine

3. why should you buy from us not from other suppliers?
We are a manufacturer with ISO9001, CE international certificates,
* 12+ years of production experience
* 10+ years of foreign trade experience
* 10+ national technology patents
* Exported more than 1,000 units without receiving complaints from customers

4. what services can we provide?
warranty: 12 months free warranty, life-long maintenance.
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
