Mechanical Design Wood Chips Rotary Dryer 3t/h

Mechanical Design Wood Chips Rotary Dryer Malaysia

The rotary dryer is a type of industrial dryer employed to reduce or minimize the liquid moisture content of the material it is handling by bringing it into direct contact with a heated gas. The dryer is made up of a large, rotating cylindrical tube, usually supported by concrete columns or steel beams. The dryer is inclined to slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through the dryer under gravity.

Product Features

1. Need large quantity of material for drying.

2. Level of mechanization is high, and capacity is large.

3. The resistance for fluid to pass through drum is low, and energy consumption is low.

4. Good adaptalility to the characters of materials.

5. Operation is stable, operating cost is low, uniformity of dried product is good.

Product Working Principle

When the damp raw material is fed from one terminal, it is turned over through blades that are distributed inside the cylinder and will be distributed uniformly in the drier and contact fully with the counter current hot air. In this way, the process of heat conduction is increased. During the period of dry, inder the effect of incine blades and hot air steam, raw material can be moved to dried and discharged from discharged form discharging valve.

Product Application

Rotary Dryers have many applications but are most commonly seen in the mineral industry for drying sands, limestone, stones and soil, ores, fertilizers, wood chips, coal, iron sulfate, filter cakes, sewage sludge, etc.

Technical Parameters

Item	Productive capacity(t/h)	Revolution(r/min)	Motor power(kw)	Install angle(o)	Temp. of final
Ø1.0x5.0	0.5-1.2	0.6-6	4	3-5	<1.5%
Ø1.2x6-10	1.5-3	0.6-6	5.5	3-5	<1.5%
Ø1.5x12-18	3-5.5	0.6-6	15	3-5	<1.5%
Ø1.8x12-18	5-6.5	0.6-6	18.5	3-5	<1.5%
Ø2.2x12-22	7-12	0.6-6	22	3-5	<1.5%
Ø2.4x15-20	9-15	0.6-6	30	3-5	<1.5%
Ø3.0x25	16	0.6-6	55	3-5	<1.5%

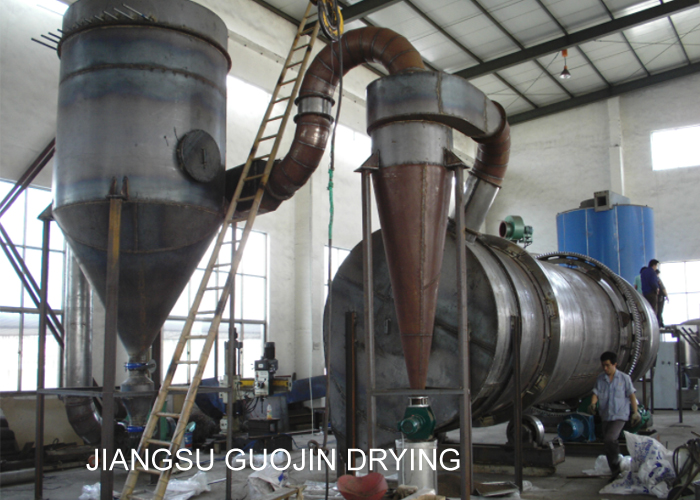

Production Show

Contact us

electrical, steam, natural gas or other
