IP65 IP Mesh Network

IP65 IP Mesh Network

IP65 IP Mesh Network
IP65 IP Mesh Network
Categories IP Mesh Network
Brand Name: Suntor
Model Number: ST9633NC
Certification: CE SGS RoHS
Place of Origin: Shenzhen China
MOQ: 1 SET
Price: Negotiation
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 1000SET/Month
Delivery Time: 15-20days
Packaging Details: Aircasing
Fre band: 1427-1447M
How long range: 200-500m in NLOS
Transmisison: IP Video output
Dimension: 163x113x54mm
Latency rate: 8-20ms
RF Power: 1/2 Watts
RF Rate: 70Mbps
Encrypted: AES128/256
Contact Now
Company Info.
Shenzhen Suntor Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

IP65 IP Mesh Network

IP65 IP Mesh Network


Industrial Unmanned Vehicles 70Mbps Ethernet Transmitter UGV Radio Links


Industrial UGV Unmanned Vehicles Transmission Radio Links Ethernet


UGV Radio links

Here download data sheet in pdf file

Specification of ST9633NC.pdf

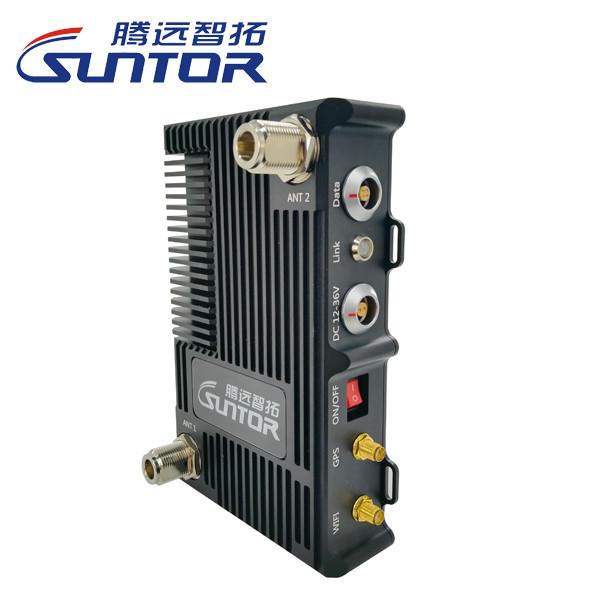

SUNTOR module ST9633NC is the professional transmission equipment for UGV ground control vehicles, the frequency is 1.4G Video Link for a car.
The advanced MESH design concept does not require a central gateway. Any one can realize the self-organizing network function. Any device in the group is offline, and the corresponding device will continue to communicate within the effective antenna coverage. The network does not drop. In practical applications, we can use ring network design without worrying about the problem of ring network blockage.

The system do not have fixed center node, all part of radios can be a center node, it can adhock networking all of members radios from different locations. It applied for , robot, maritime uav, mapping drones, oil and gas, green energy inspection.
If in ground to ground, the range would be 200-500meters in NLOS.
Product Application for UGV Radio links:
, UGV, robot, UAV
Product Parameters for UGV Radio links:

Range: 200-500meters NLOS in ground to ground,

1-5km open area in ground to ground, ＞20km in air to ground.

Frequency: Regular L Band 1.4GHz (1427.9-1447.9MHz),

Bandwidth: 5.0/10.0/20.0MHz

Consumption: ≤24W

Power supply: 24V(14V-36V)

Working temperature: -40℃～+75℃

Dimension: 202x85x30mm

Device Weight: 653g Battery: 200g


Power supply24V(14V-36V)
Bandwidth:5.0/10.0/20.0MHz
WaterproofIP65
EncryptionAES128/256
Weight653g
TransmisisonIP Video output
How long range200-500m in NLOS

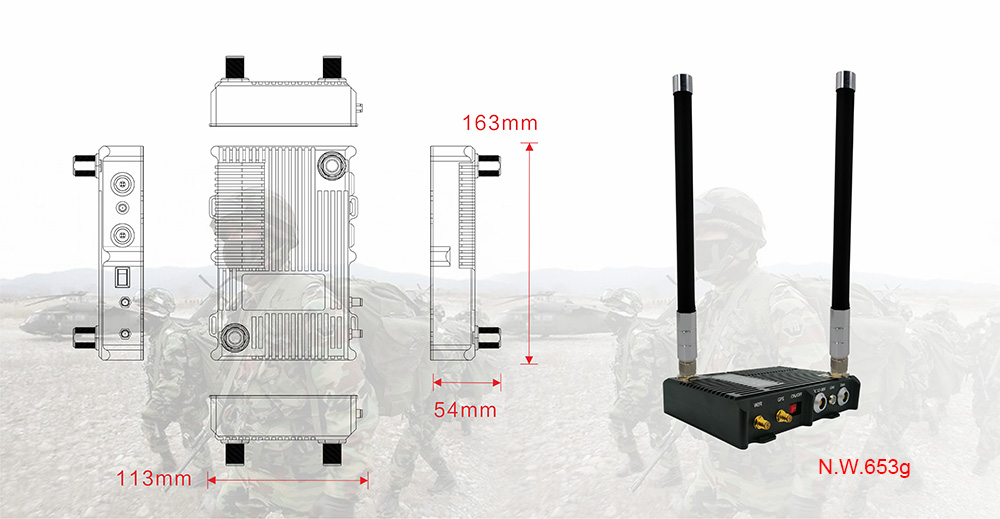

Dimension163x113x54mm
Product Parts List for UGV Radio links:
1. TNC Antenna x 2pcs
2. Wifi Antenna x 1pcs
3. GPS Antenna x 1pcs
4. Ethernet Cable x 1pcs
5. Power Cable x 1pcs
6. Power Adapter x 1pcs
