| Categories | Bitcoin Cooling System |
|---|---|
| Brand Name: | Shenglin |
| Model Number: | SHSL-D3 Series |
| Certification: | CE and Rohs |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | 600~32000 USD per unit |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 units per month |
| Delivery Time: | 35~40days |
| Packaging Details: | Stretch film and Pallet |
| Tube material: | Copper tubes |
| Fin material: | Hydrophilic aluminum foil or epoxy resin aluminum foil |
| Frame material: | Galvanized steel plate or stainless steel |
| Power supply: | 380V/3P/50Hz or 380V/3P/60Hz |
| Fan brand: | Ziehl-Abegg |
| Frame painting colour: | White |
| Product category: | Dry Cooler |
| Cooling way: | Immersion cooling |
| Structure: | Table type |
| Media: | Electrocool dielectric coolants |
Ziehl-Abegg Fan Dry Fluid Cooler Table Type Structure For Immersion Cooling System
What's Immersion Cooling?
Immersion cooling is an IT cooling practice by which IT components
and other electronics, including complete servers, are submerged in
a thermally conductive dielectric liquid or coolant. Heat is
removed from the system by circulating liquid into direct contact
with hot components, then through cool heat exchangers. Fluids
suitable for immersion cooling have very good insulating properties
to ensure that they can safely come into contact with energized
electronic components.
Benefits of Immersion Cooling:
Reduce Operating Costs by 50%+
Power reduction by removing the fans from the miners (~18% – 25%)
Removal of supplementary cooling systems (Intake / Exhaust fans, etc. account for another 20% – 25%)
Increase the hash rate of your current equipment
Increase hardware lifespan
Increase the density of miners in your facility
Built in fire protection as our dielectric fluid is non-flammable
Immersion cooling systems do not require chillers, CRAC units, raised flooring, etc
Many more!
Technical parameter of dry cooler
Dry cooler D3 series parameter(fin space 2.1mm)
| Type | D3-042- 1X800 | D3-046- 1X800 | D3-051- 1X800 | D3-087- 2X800 | D3-094- 2X800 | D3-103- 2X800 | D3-125- 3X800 | D3-146- 3X800 | D3-153- 3X800 | D3-175- 4X800 | D3-188- 4X800 | ||||||
| Capacity | Water | 35℃ outdoor temp. | Inlet | 45℃, | KW | 42.1 | 46.1 | 50.6 | 87.3 | 93.6 | 102.9 | 124.9 | 145.9 | 153.3 | 174.5 | 187.9 | |
| outlet | 40℃ | ||||||||||||||||
| 20% Glycol | Inlet | 45℃ | 40.8 | 45.1 | 49.7 | 84.5 | 91.8 | 100.9 | 119.4 | 143 | 150.4 | 168.9 | 184.3 | ||||
| outlet | 40℃ | ||||||||||||||||
| Medium | Water flow | M3/h | 7.3 | 8 | 8.8 | 15.2 | 16.3 | 17.9 | 21.7 | 25.4 | 26.6 | 30.3 | 32.7 | ||||
| Pressure drop | kPa | 49 | 69 | 97 | 48 | 98 | 93 | 21 | 97 | 89 | 48 | 98 | |||||
| Air flow | M3/h | 21454 | 20531 | 19696 | 42906 | 41061 | 39390 | 64364 | 61585 | 59087 | 85811 | 82120 | |||||
| Fan motor(400V/3N/50HZ) | W | 1800 | 1800 | 1800 | 3600 | 3600 | 3600 | 5400 | 5400 | 5400 | 7200 | 7200 | |||||
| A | 3.8 | 3.8 | 3.8 | 7.6 | 7.6 | 7.6 | 11.4 | 11.4 | 11.4 | 15.2 | 15.2 | ||||||
| Fan | No X φ | 1x1 x800 | 1x1 x800 | 1x1 x800 | 1x2 x800 | 1x2 x800 | 1x2 x800 | 1x3 x800 | 1x3 x800 | 1x3 x800 | 2x2 x800 | 2x2 x800 | |||||
| Sound pressure level | dB(A) | 50 | 50 | 50 | 51 | 51 | 51 | 53 | 53 | 53 | 54 | 54 | |||||
| 10m | |||||||||||||||||
| Dimension | L | mm | 2000 | 2000 | 2000 | 3800 | 3800 | 3800 | 5600 | 5600 | 5600 | 3800 | 3800 | ||||
| W | mm | 1084 | 1084 | 1084 | 1084 | 1084 | 1084 | 1084 | 1084 | 2108 | 2108 | 2108 | |||||
| H | mm | 1328 | 1328 | 1328 | 1328 | 1328 | 1328 | 1328 | 1328 | 1328 | 1328 | 1328 | |||||
| A | mm | 1728 | 1728 | 1728 | 3528 | 3528 | 3528 | 5328 | 5328 | 5328 | 3528 | 3528 | |||||
| B1 | mm | -- | -- | -- | 1764 | 1764 | 1764 | 1776 | 1776 | 1776 | 1764 | 1764 | |||||
| B2 | mm | -- | -- | -- | 1764 | 1764 | 1764 | 1776 | 1776 | 1776 | 1764 | 1764 | |||||
| B3 | mm | -- | -- | -- | -- | -- | -- | 1776 | 1776 | 1776 | -- | -- | |||||
| B4 | mm | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | |||||
| X | mm | 997 | 997 | 997 | 997 | 997 | 997 | 997 | 997 | 997 | 2021 | 2021 | |||||
| Inlet φ | mm | 2” | 2” | 2” | 2 1/2” | 2 1/2” | 2 1/2” | 3’ | 3’ | 3’ | 4” | 4” | |||||
| Inlet φ | mm | 2” | 2” | 2” | 2 1/2” | 2 1/2” | 2 1/2” | 3’ | 3’ | 3’ | 4” | 4” | |||||
| Product weight(empty) | kg | 225 | 233 | 241 | 357 | 373 | 392 | 796 | 527 | 749 | 812 | 1062 | |||||

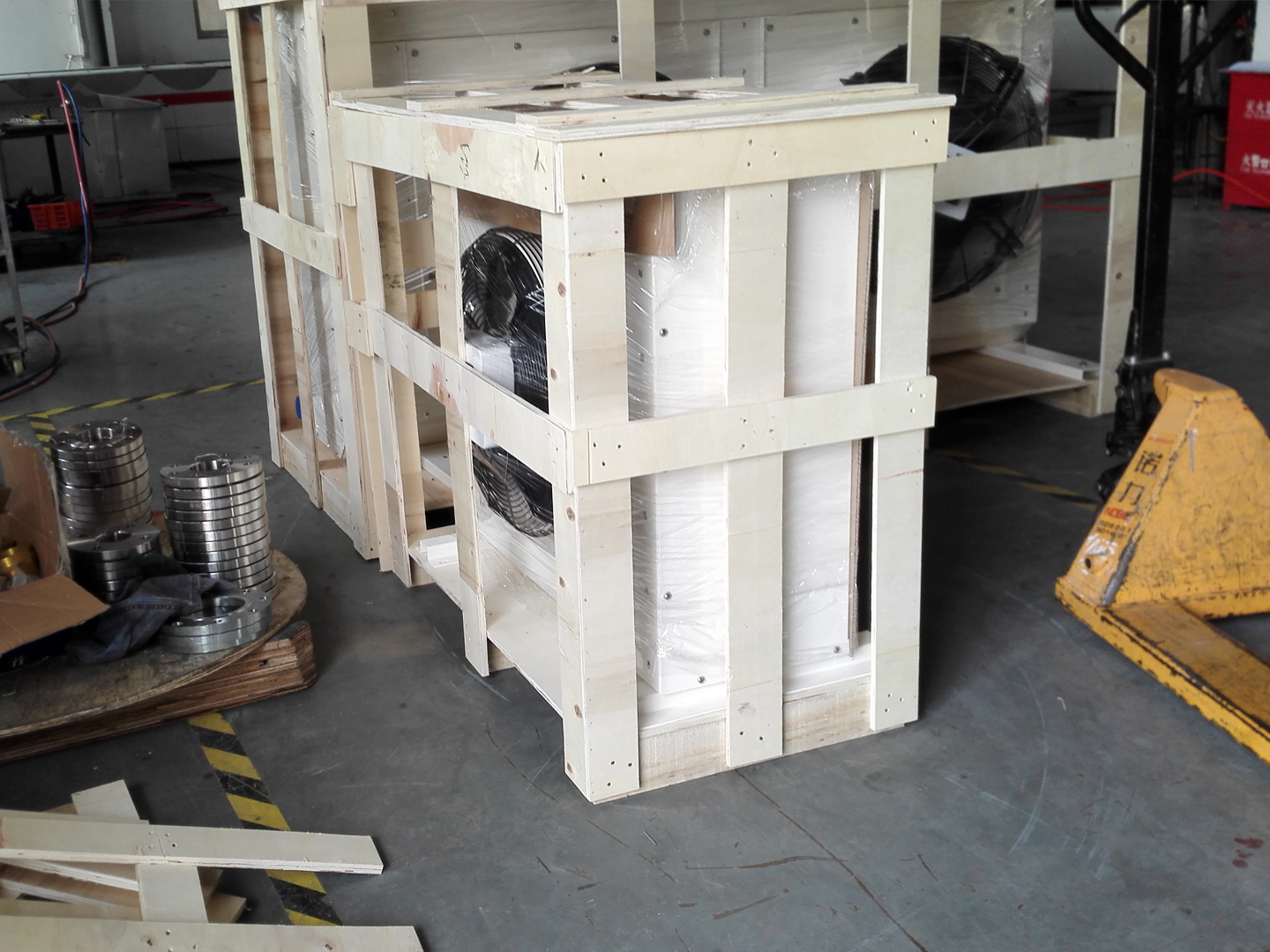

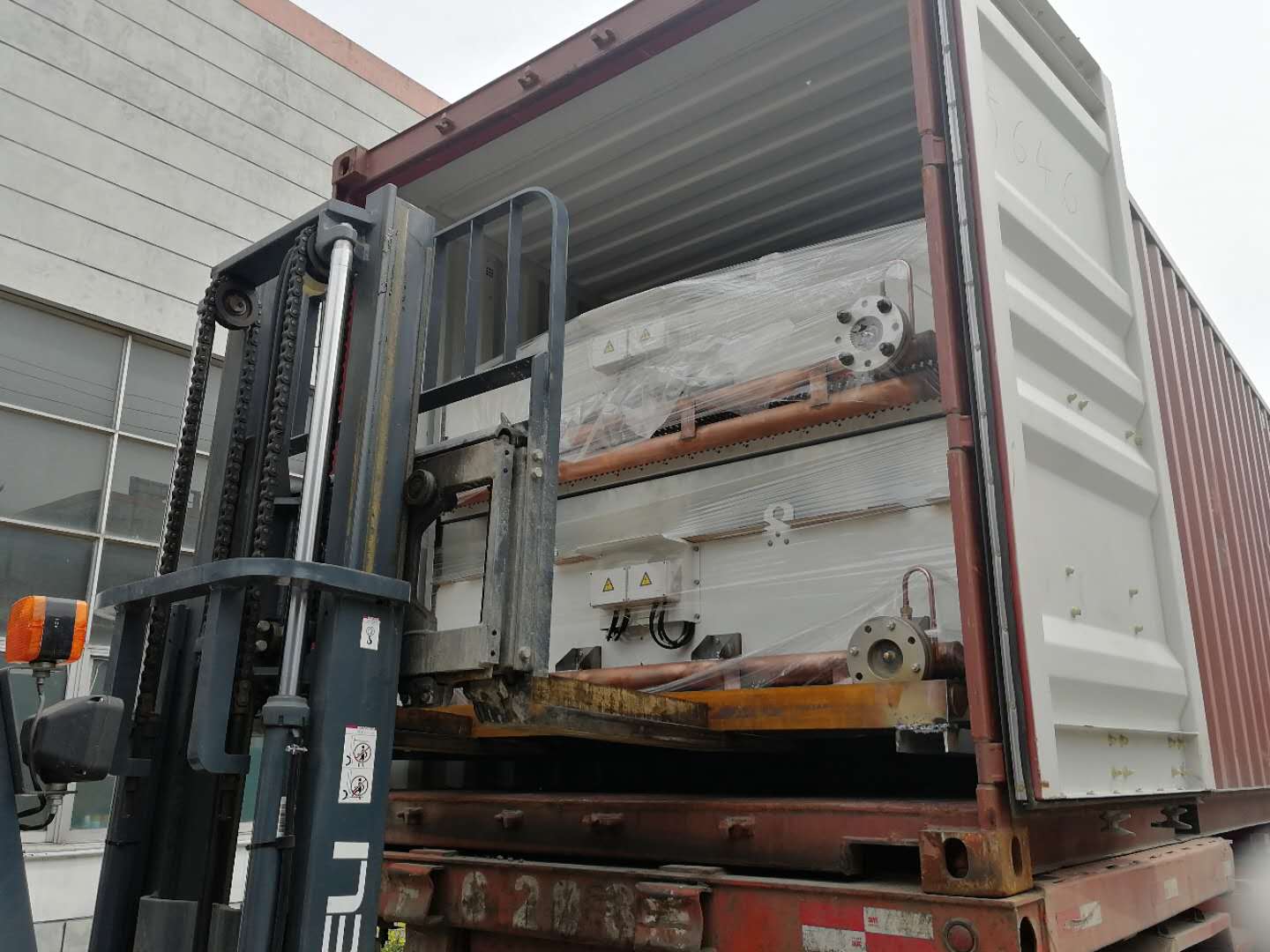

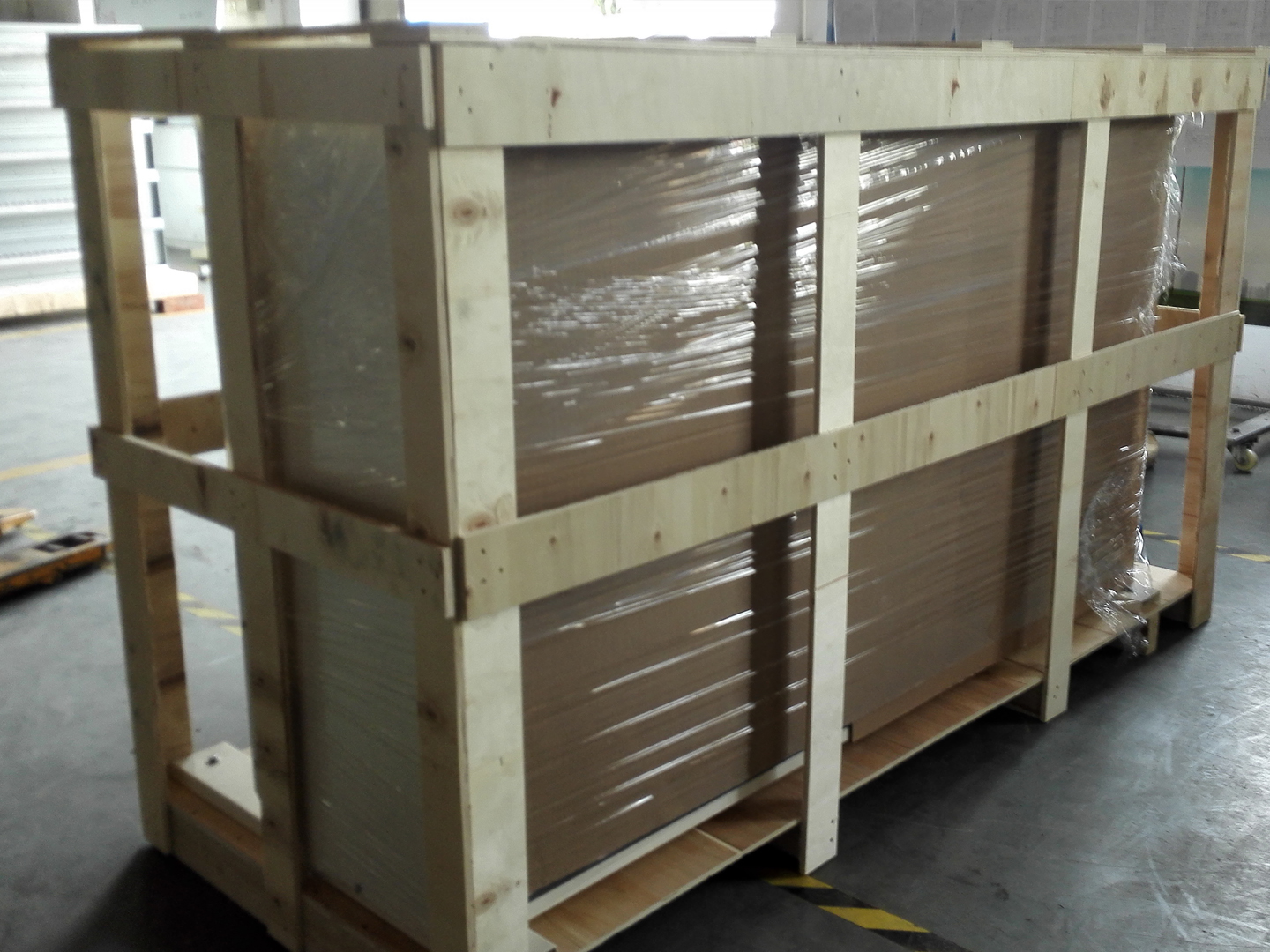

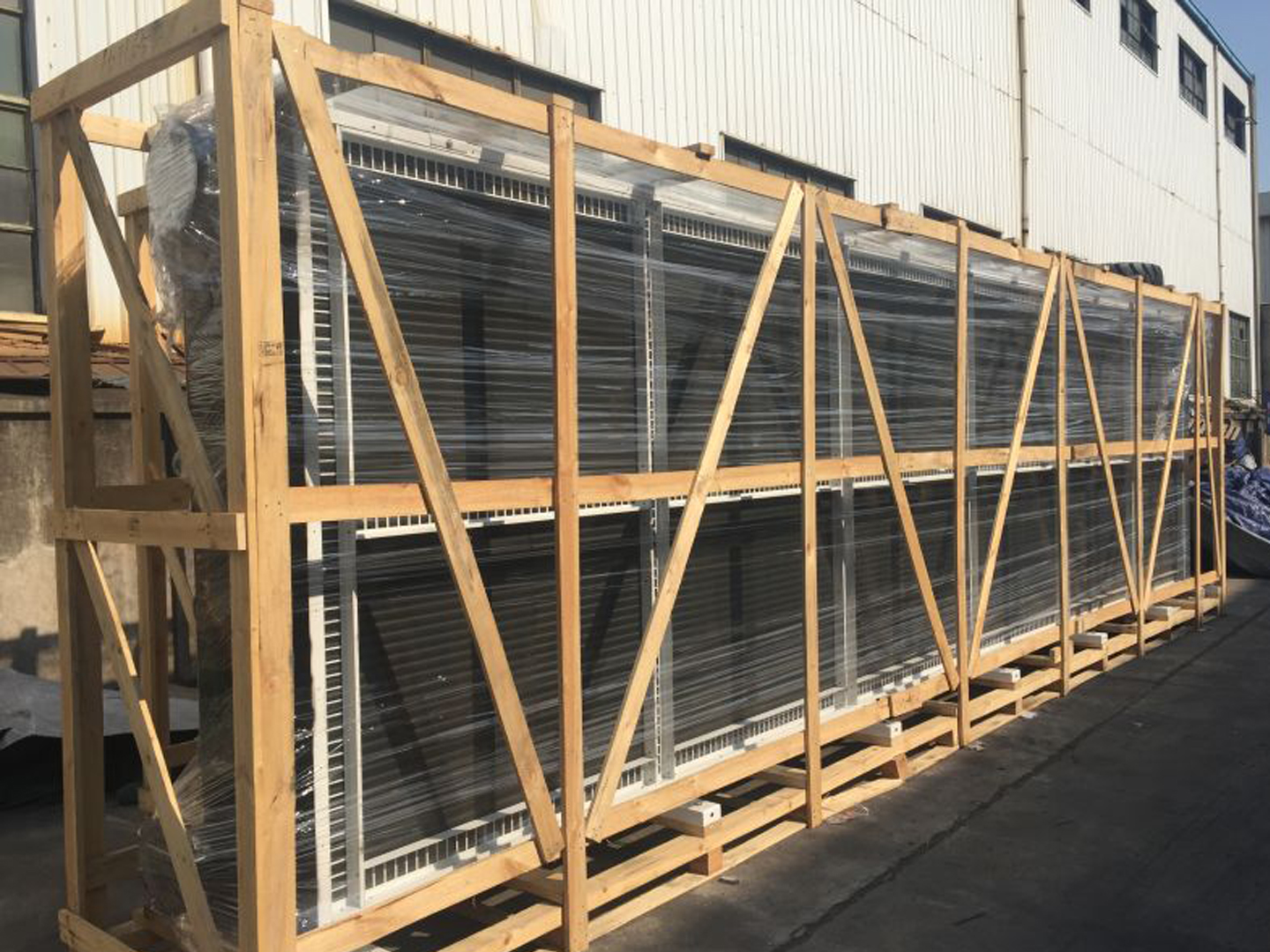

Recently shipped photos:
 |  |
 |  |
|
