Brand Name: | Gnee |
Model Number: | C10100 C11000 |
Certification: | SGS |
Place of Origin: | Tianjin |
MOQ: | 500 kg |
Price: | $6.5-10 / kg |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, Money Gram |
Supply Ability: | 2000 Ton/Tons per Month |
Delivery Time: | 15-45 days |
Packaging Details: | Water proof paper+metal pallet+Angle bar protection+steel belt or as requirements |
Type: | Straight Copper Pipe, Pancake Coil Copper Pipe |
Shape: | Round, square, Customised Shape, rectangular, Round. Square. Rectangular |
Length: | 1m, 2m, 3m, 6m or as required |
Cu (Min): | 99.9% |
Wall Thickness: | 0.2-120 mm |
Outside Diameter: | 1/16"-48" |
Standard: | ASTM |
Grade: | C10100 C10200 C11000 |
Application: | Air Condition, Refrigerator, Water Heater, Power, Water Tube, Cooling system,etc. |
Package: | Wooden Case, Normal package, as customer demands, Standard Seaworthy Package |
Company Info. |
Gnee Steel (tianjin) Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

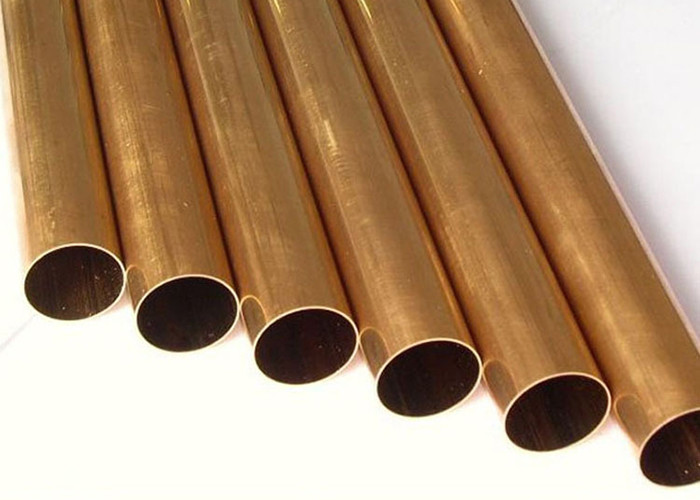

C10100 C10200 C11000 Medical Gas Copper Pipe Medical Grade Copper Tube 15mm
GNEE degreased medical copper pipe is designed for use in medical gas pipeline system installations and is manufactured under strict quality control procedures to ISO 9001:2008. In addition, we also provide medical copper pipe fittings include elbow, reducing elbow, street elbow, 45° elbow, straight coupling, equal tee, fitting reducer, reducing tee, and reducing couple.
Specifications
* Adopting continuous casting and rolling production process, high
purity, fine structure, and low oxygen content.
* No porosity, trachoma, loose, good thermal conductivity,
processability, ductility, corrosion resistance, and weather
resistance. Easy to solder and braze.
* The product quality is stable, the pressure is high, the
elongation rate is high, and the cleanliness is high, which meets
the high cleaning requirements of the fluorine-free refrigeration
equipment.
* Straight tube plastic film winding, can be plugged, can be loaded
with wooden boxes.
Model | Diameter(mm) | Thickness(mm) | Working Pressure(Bar) |
CP-12 | 12 | 0.6 | 77 |
CP-15 | 15 | 0.7 | 63 |
CP-22 | 22 | 0.9 | 58 |
CP-28 | 28 | 0.9 | 51 |
CP-35 | 35 | 1.0 | 40 |
CP-42 | 42 | 1.0 | 35 |
CP-54 | 54 | 1.0 | 27 |
CP-67 | 67 | 1.2 | 26 |
CP-76 | 76 | 1.5 | 29 |
CP-108 | 108 | 1.5 | 16 |
![]() |
