| Categories | Shipbuilding Steel Plate |
|---|---|
| Brand Name: | Gnee Steel |
| Model Number: | LR AH36 |
| Certification: | SGS LR |
| Place of Origin: | Henan |
| MOQ: | 10 |
| Price: | 5000 $ |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 Ton/Tons per Month |
| Packaging Details: | With wooden pallets, Standard Sea Worthy Package or as per customer required |
| Application: | Ship Plate,Construction/Ship Building etc. |
| Technique: | Hot Rolled,customers' requirements,Ship Plate |
| Type: | Steel Plate,Steel Coil |
| Standard: | ASTM,GB,AISI,JIS,BS |
| Length: | 1000-12000mm,Customers' Requirement |
| Surface treatment: | Coated |
| Grade: | A,B,D, AH32,DH32,AH36,DH36,E,EH32,EH36,2HGr50,AH40,DH40,FH32,FH36 |
| Width: | 1300mm-3000mm |
| Special use: | shipbuilding steel plate |
| Thickness: | 8mm-400mm |
| Product name: | Ship Building Carbon Steel Plate,ah36 shipbuilding steel plate marine steel plate,Hot Rolled Carbon Steel Plate,LR/ABS/BV/DNV Classification society hull structural steel plate |
| Shape: | Flat,sheet,Plate |
| Material: | ABS A AH32 AH36 EH36 |
| Name: | Hot rolled steel plate for building,Quality Carbon Shipbuilding Steel Plate/Sheet |
| Company Info. |
| Gnee (Tianjin) Multinational Trade Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

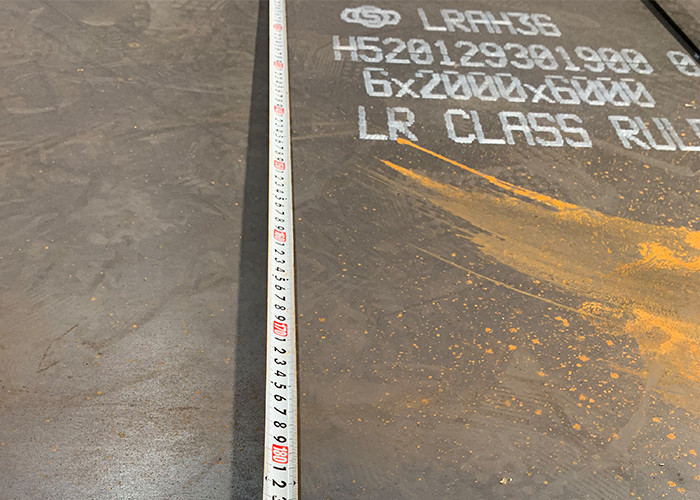

Marine Grade Hot Rolled Ship Building Steel Plate LR AH36
Ship building steel plate has a strict control on chemical
composition of steel as per requirements of domestic and
international shipbuilding standards CCS, GL, BV, ABS, DNV, LR, NK,
KR, RINA or GB712. This use of controlled-rolling and controlled-
cooling process as per carbon equivalent in hot-rolling leads to
stable chemical composition and excellent mechanical properties of
the ship steel plate.
The surface of ship building steel plates is flat, the edge is
even, and the diagonal bias is small. The precision of the ship
building steel size is high, and the thickness difference of the
same plate is small. The ship building steel, with about 0.1%
copper, has a good corrosion resistance. The ship building steel
also has a good welding performance with a low carbon equivalent.
| item | Thickness(mm) | Width(mm) | Length(mm) | |
| Hot Rolled Plates | 1.2-50mm | 500-1500mm | as per request | |
| Surface Treatment | Mill finish / Oxided rust treatment finish | |||
| Other Common Size | 1219*2438; 1220*2440; 1500*3000; 1500*6000; 2438*6096; 2438*9143, Can be customized, cut, or processed according to customers' requirements | |||
| Application | Widely used for making rebar or building house rack, or the workshop; bridge; vehicle;boiler; container; vessels; machine part; etc. | |||
Chemical Composition - Marine Grade Hot Rolled Ship Building Steel Plate LR AH36
Grade | C ≤ | Mn | Si ≤ | P ≤ | S ≤ | ALS | Nb | V | tI | Nb+V+Ti | Cu | Cr | Ni | Mo | Ceq ≤ | |
| A | 0.21 | ≥ 2.5xC | 0.50 | 0.035 | 0.035 | __ | __ | __ | __ | __ | __ | __ | __ | __ | C+1/6Mn≤0.40 | |
| B | 0.21 | ≥0.80 | 0.35 | 0.035 | 0.035 | __ | __ | __ | __ | __ | __ | __ | __ | __ | C+1/6Mn≤0.40 | |
| D | 0.21 | ≥0.60 | 0.35 | 0.035 | 0.035 | t>25, ≥ 0.015 | __ | __ | __ | __ | __ | __ | __ | __ | C+1/6Mn≤0.40 | |
| E | 0.18 | ≥0.70 | 0.35 | 0.035 | 0.035 | t>25, ≥ 0.015 | __ | __ | __ | __ | __ | __ | __ | __ | C+1/6Mn≤0.40 | |
| AH32 | 0.18 | 0.90~ 1.60 | 0.50 | 0.035 | 0.035 | ≥ 0.015 | 0.02~0.05 | 0.05~0.10 | ≤0.02 | ≤ 0.12 | ≤ 0.35 | ≤ 0.20 | ≤ 0.40 | ≤0.08 | Agreement (except TMCP: t≤50, 0.36 t>50-100, 0.38) | |
| DH32 | ||||||||||||||||
| EH32 | ||||||||||||||||
| AH36 | 0.18 | 0.90~ 1.60 | 0.50 | 0.035 | 0.035 | ≥ 0.015 | 0.02~0.05 | 0.05~0.10 | ≤0.02 | ≤ 0.12 | ≤ 0.35 | ≤ 0.20 | ≤ 0.40 | ≤0.08 | Agreement (except TMCP:t≤50,0.38 t>50-100,0.40) | |
| DH36 | ||||||||||||||||
| EH36 | ||||||||||||||||
What is the difference between A36 and AH36?
Actually, there is no difference between marine steel AH36 and A36
shipbuilding steel. They are same material, the chemical
composition and mechanical property comply with standard ASTM
A131/A131M. There is different version as AH36 and A36, that mainly
caused by diffirent classification societies.
GNEE STEEL keeps more than 10,000 tons hot rolled and cold rolled
ABS AH36, AB/FH36 shipbuilding steel in stock each month.
|
