120mAh MTK Vehicle Motor Bike Relay Gps Tracker / Motorcycle GPS Tracker

Categories Motorcycle GPS Tracker
Brand Name: iStartek
Model Number: VT202
Certification: CE FCC ROHS NBTC
Place of Origin: Guangdong, China
MOQ: 2-99 Pieces
Price: $1-$15.00
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 900000PCS/Month
Delivery Time: 1-7 days
Packaging Details: VT202 Dimension: 65.5mm x 38.5mm x 13.5mm VT202 Net Weight: 36.2g Box Size: 145mm x 90mm x 30 cm Gross Weight: 133g per box
Type: band relay gps tracker for vehicle motor bike
Data Transmission: GPRS: Max.85.6Kbps (DL)/Max.85.6Kbps (UL)
Package Size: 145mm x 90mm x 30 cm
Weight: 36g
Sensor: G-sensor
GSM Frequencies: 850/900/1800/1900 MHz
GPRS: Class 12
GPS Channel: 20
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

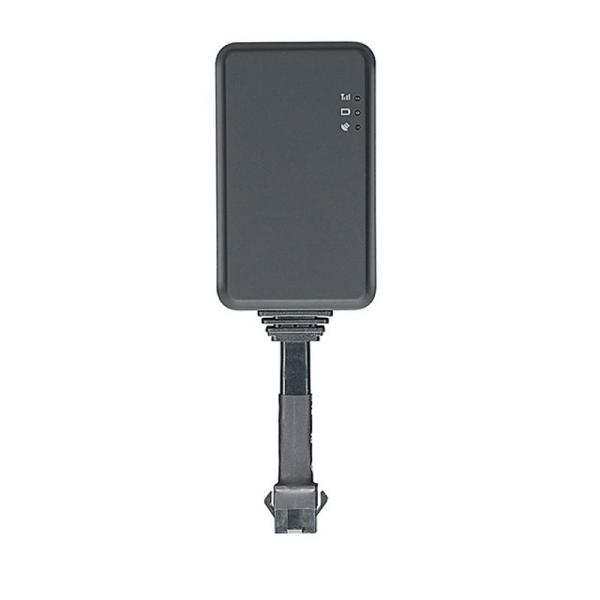

120mAh MTK Vehicle Motor Bike Relay Gps Tracker / Motorcycle GPS Tracker

Satellite alarm real time mtk gsm band relay gps tracker for vehicle motor bike

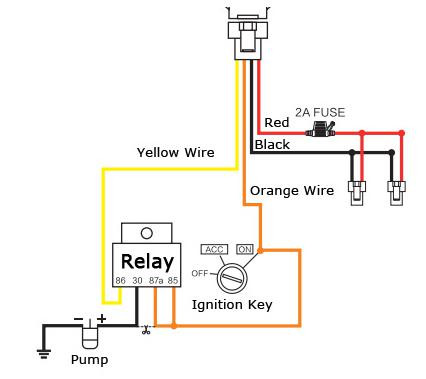

Wiring configuration

Line No. Specification Color Instruction
MOTOR Yellow Connect to relay control line
ACC Orange Connect to ACC ignition
V- Black(thick) Negative side
car storage battery. V+ Red(thick)


Notes of the relay wiring
The relay wiring of pump: oil connectors of both ends are a fine white line (85)
and a fine yellow line (86). The fine white line (85) is connected to vehicle positive
power (+12V). The fine yellow line is connected to the device relay control line.
Cut off the positive connection line of the pump; then connect in series to the
relay N.C. contact (thick green line 87a) and the other end to relay COM contact (thick
green line 30).


Product Specifications
ItemsSpecifications
Product size65.5mm x 38.5mm x 13.5mm
Packing size145mm x 90mm x 30 cm
Weight36.2g
Packing weight133g
Backup Battery120mAh / 3.7V
Voltage9-100VDC

Operation Temperature

-20℃-60℃
Humidity5% - 95%
GSM Frequencies850/900/1800/1900 MHz
GPRSClass 12
GPS Channel20
GPS Sensitivity-159dBm
Acquisition Sensitivity-144dBm
Position Accuracy10m

TTFF (Open Sky)

Cold Start: <38s
Warm Start:<15s
Hot Start:<2s
GSM/GPS AntennaBuilt-in design
LED IndicatorGSM-green, GPS-blue, Power-red
Data TransmitTCP, SMS
Accessory & Apply

Standard Accessories:

VT202 TrackerPower CableStickerUser Manual

Optional Accessories:

Relay


Product Pictures

Packing and Delivery

Packing:

1. VT202 Size: 65.5*38.5*13.5mm

2. VT202 Weight: 36.2g

3. VT202 will be packed by gift box, the size is 145*90*30mm, 133g per ft box


Delivery:

1. Sample and mini order will be delivered within 2-3 working days after the receipt of payment.

2. For order over 500pcs or customized order, the lead time will be 3-5weeks after the receipt of payment.
