GTGH Service Board Olt Fiber Connection Optic Link Olt Ratio 256 8.2dB

Categories GPON OLT
Brand Name: ZTE
Model Number: GTGH
Certification: CE,ROHS,ISO9001
Place of Origin: China
MOQ: 1PCS
Supply Ability: 1000PCS/Week
Delivery Time: 3-5days
Packaging Details: 1pcs/box
Application: FTTH
GPON Port: 16-GPON Port
Product name: GTGH Board
Split Ratio: up to 1:256
Size: 23 mm x 237 mm x 396 mm
Weight: About 1.5kg
Reach: 20km
Overload Optical Power: C+ C++ C+++
Extinction Ratio: 8.2dB
Optical Fiber Type: Single Model
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

GTGH Service Board Olt Fiber Connection Optic Link Olt Ratio 256 8.2dB

ZTE GTGH Board ZXA10 C300 16 Port GPON OLT Interface Service Board C300 C320


Description

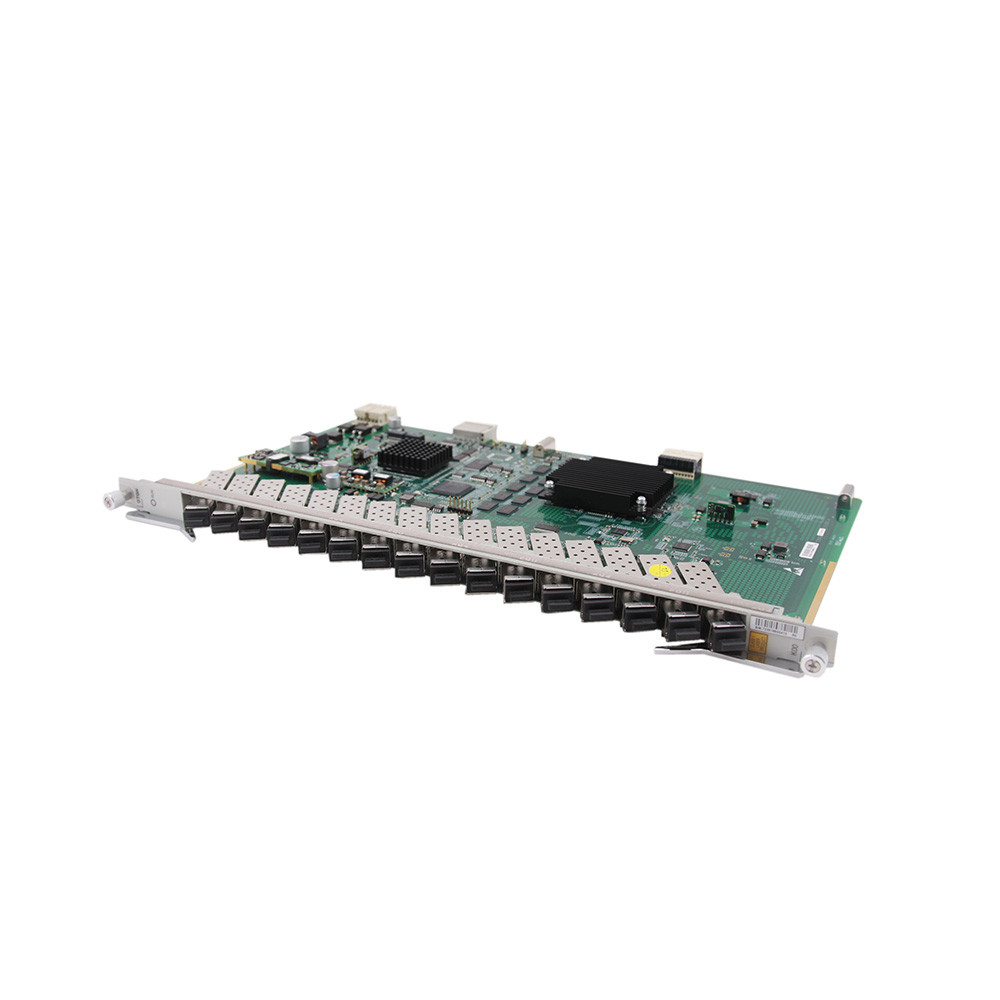

ZTE GTGH Service Board is ZTE ZXA10 C300 16-port GPON OLT interface board offering GPON service access.


Features

  • 16 GPON ports per card, up to 1:128 split ratio
  • Support ONU power saving management defined in G.987.3
  • 1024 T-CONTs per PON port, 4096 GEM ports per PON port
  • Support H-QOS
  • 1024 queues and 256 schedulers per PON port
  • Support color-sensitive RED and WRED discard algorithm
  • Receive 1PPS+TOD signals and send them to the ONU through a PON channel
  • Newly-developed lower power GPON MAC chip
  • Reduce 30% power consumption on industry average

Specification

TypeC+ Module : Single Fiber Bidirectional Optical
Module, Class C+
Operating WavelengthTx: 1490 nm, Rx: 1310 nm
Encapsulation TypeSFP
Port RateTx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Minimun Output Optical PowerC++ Module : 4.50 dBm
Maximum Output Optical PowerC+ Module : 7.00 dBm
C++ Module : 8.00 dBm
Maximum Receiver SensitivityC+ Module : -32.00 dBm
C++ Module : -30 dBm @10E-10
-32 dBm @10E-10
Optical Connector TypeSC/PC
Optical Fiber TypeSingle-mode
Reach20.00 km
Overload Optical PowerC+ Module : -12.0 dBm
C++ Module : -12.0 dBm
Extinction Ratio8.2 dB
Device Specifications
Weight1kg
Dimensions (W x D x H)22.86 mm x 237.00 mm x 395.40 mm

Detailed Images

FAQ

Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than


Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available


Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.


Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.


Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
