| Categories | Wire Cattle Fencing |
|---|---|
| Brand Name: | AOBIAO |
| Model Number: | AB-X-FCLF-09 |
| Place of Origin: | Anping China |
| MOQ: | 30-80 Piece |
| Price: | Please Contact Customer Service For The Specific Price. |
| Payment Terms: | T/T, For other payment methods, please contact customer service |
| Supply Ability: | 5900 /Piece/ Month |
| Delivery Time: | 10 -25 Day |
| Packaging Details: | Plastic Film, Wooden Pallet, Bulk Package Or As Your Demand |
| Name: | Farm Field Fence |
| Color: | Silver |
| Application: | Forestry And Highway Grassland, etc |
| Zinc Coated: | Normally 60-100g/m² , max 230-240g /m² |
| Material: | Galvanized Wire, Steel Wire ,etc |
| Post Distance: | 2.5m,3m etc |
| Horizontal Wire Space: | 15*100mm+2*150mm+3*200mm; 16*50mm+4*100mm+3*150mm+1*200mm;Etc |
| Height: | 0.8-2.0m Or As Your Demand |
| Type: | Catttle Fence,Hinge Joint Fencing,Livestock Field Fencintg Farm Fence, etc |
| Post stye: | T-Post, Y-Post ,Barbed Wire etc, |
| Length: | 50m ,100m,200m etc |
| Vertical Wire: | 40-50 kgs/m²，etc |
| Tensile Strength Horizontal Wire: | 80-90kgs mm2 |
| Wire Dia: | 1.8mm-2.5mm ,etc |
| Edge Wire Dia: | 2.0mm-3.2mm ,etc |
| Packing: | Plastic Film, Wooden Pallet, Bulk Package |
1>. A range of fence heights, wire configurations, and roll lengths to suit your fencing requirements.

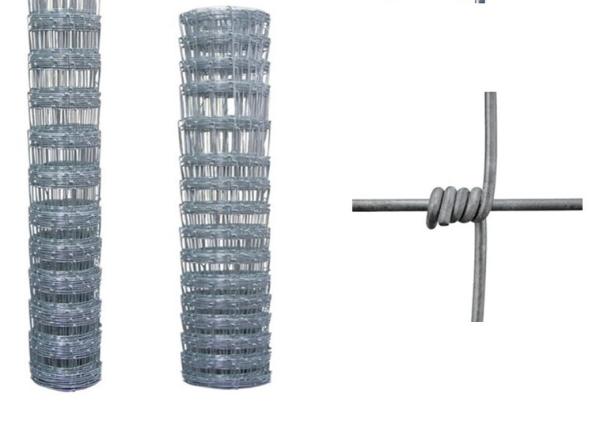

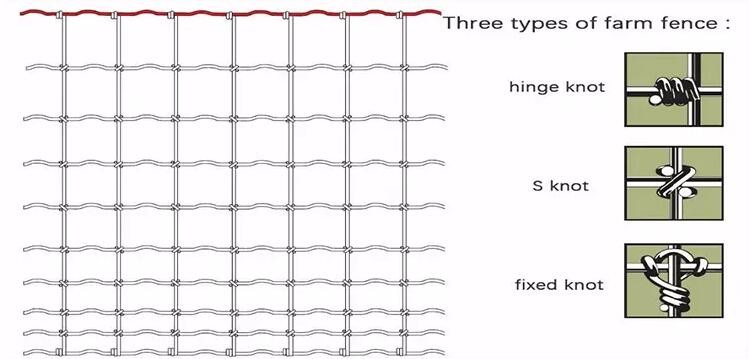

2>. The hinge joint is a flexible joint that moves to absorb impacts and springs back to shape again.
3>. It is similar to the stock look mesh commonly used in the rural industry.

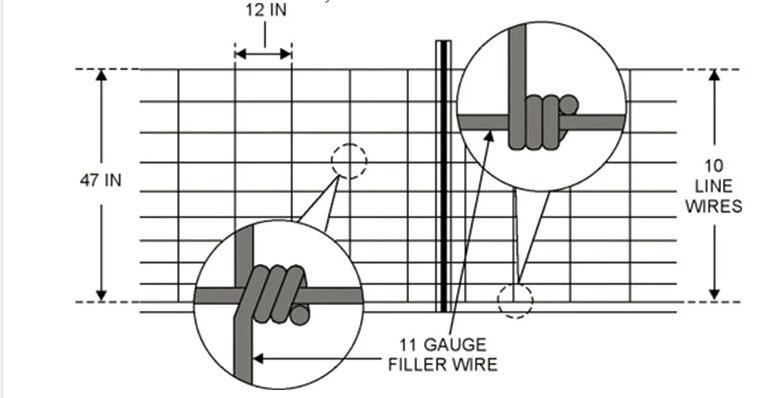

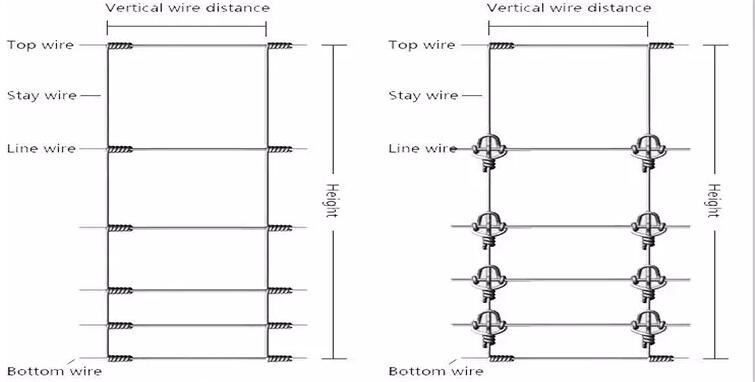

4>. All meshes are graduated with horizontal wires at the ground level closer together, gets wider at the top of the fence - this ensures smaller animals cannot get through the apertures near the ground. Vertical stay wires are 15cm apart.
| Model No. | AB-X-FCLF-09 | |
| Wire diameter | Top and bottom wire:2.5mm | |
| Middle part wire:2.0mm | ||
| Surface finish | Electric galvanized or hot dip galvanized | |
| Height(m) | 0.5-2.0 etc | |
| Length(m) | 50/roll,100/roll,150/roll,200/roll | |
| Mesh size | Horizontal line distance(cm) | 15-14-13-11-10-8-6 |
| Vertical line distance(cm) | 15-18-20-40-50-60-65 | |
| Type | Specification/Edge wire2.5mm/Inner wire 2.0mm | Gross weight(KG) | |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 |
| 7 | 10/150/1245/50 | 102+114+127+140+152+178+203+229 | 26 |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 |
| 10 | 11/150/1442/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 28.4 |

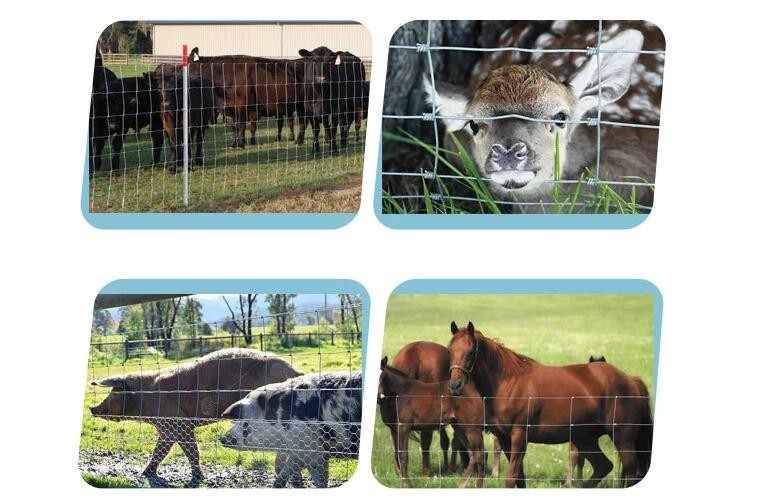

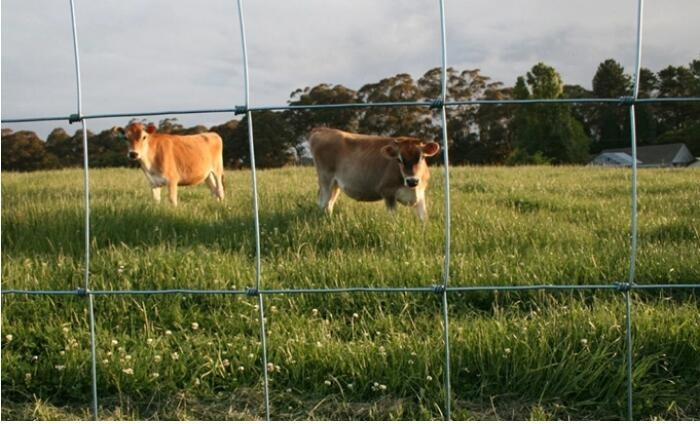

1.Livestock fencing and confinement
2.Crop protection.
3.Erosion control silt fence backing
4.Garden fencing.
5.Land fencing and side line dividers.

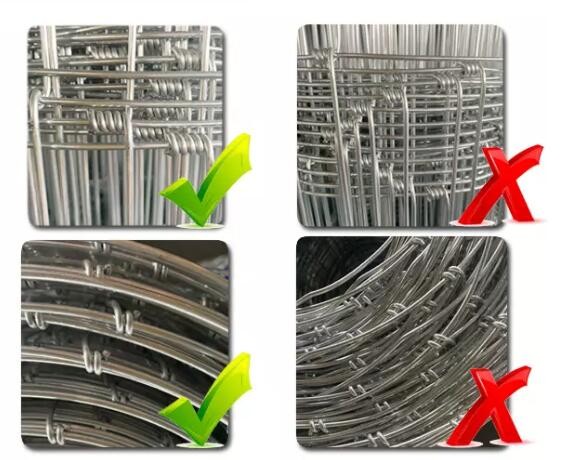

1>.We have professional QA /QC to inspect the products quality during every producing process,
2>.so that we can ensure high quality for our customers.
3>.QA/QC Introduction-- JINTONG FACTORY Strictly control quality inspection.
4>.Quality inspection department work is to inspect quality each day in production workshop.
5>.We must ensure that every product to attain to the quality requirements of the customers.
6>.We can pass the third party to test the product quality, and ensure that the quality meet the customers' requirements.
|
