Stainless Steel Johnson Tube Slot 60 80 Water Wire Screen

Stainless Steel Johnson Water Well Wire Screen Tube

Product Description:

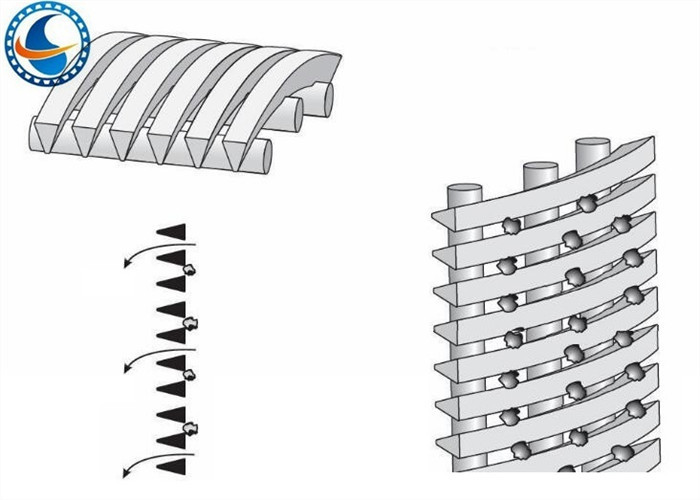

Stainless Steel Johnson Water Well Wire Screen Tube is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.

Specificarion:

Characteristic:

Stainless Steel Johnson Water Well Wire Screen Tube have superior open area due to their continuous slot openings. The benefits of which will :

• Reduce energy consumption and increase water flow.
• Reduce erosion of entry surfaces and increase well life.
• Allow a uniform and efficient well development.
• Reduce significantly potential pump damage and subsequent maintenance costs.

Regular Specification:

Use:

water well

water supply systems

Refining & petrochemical

Filter equipment

Drum Filter

Sand control

OEM service:

We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet the needs of use.

Pictures:

Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. is located in Anping county which well known of "The hometown of wire mesh in China",emerged from Anping griddle screen factory in 2006 with a founding of 3.0 million RMB. It has a comparatively long history,a large scale production rate,and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.

For several years,we never stop innovating and improving ourselves,we have introduced the advanced production line,collected the massive engineering research and managerial talent,now company moves to the XuTuan Wire Mesh Industry Zone,takes up six thousands square meters.

Our company produce and sell as following:Johnson wire screen,Water well screen,Vee wire screen, Well screen, Wire wrapped screen,Oil well screen,Wedge wire screen,Slot tube,Vee shaped wire welded screens,Strainer pipe,Mine sieving mesh, Spiral screen tube,Rod based continuous slot screen pipe,Wound screen cylinders,Drilling well screen,Vibrating sieve screen plate, Wedge wire panel, Screen flat,Water filter,Arc screen, Johnson screen nozzle, Water filter etc.

The products are used in the trades,such as ore choosing,petroleum,chemical industry,electron,transportation,plastics,food,architecture,traffic ,Water / oil well , Wastewater treatment etc.

Our products can be seen everywhere in China,as well as African countries, Middle East and the regions of Southeast Asia.

The president of our company sincerely hopes to build well trade relationship on the basis of mutual reciprocity, mutual benefit and friendly cooperation to create the nice future together.
