100km Industrial POE Ethernet Switch With 1 Fiber and 8 Ethernet Ports

Industrial POE Switch with Fiber Port​ Gigabit 1 SFP Port and 8 Ethernet POE Ports

Technical parameters

Product overview

​POE switch with fiber port is gigabit 1 SFP port and 8 POE Ethernet ports, it adopts industrial-grade design solution, through Electro-optical technique conversion, it can transfer data signal by different transmission media of twisted pair and fiber in new high-speed Ethernet network, multi-channel of HD 1080P network signals can be transferred without delay, it can meet the user’s requirements of long range transmission and high-speed transmission, the max high-speed transmission distance of HD network signals can reach 100Km without repeater, it also can be connected with other network devices. Din rail style and desktop style for installation are provided, it supports wide range of power input, power with positive and negative protection, ultra wide range of operating temperature (-40~85℃), IP40 shell protection.

Product features

◆ Built-in United States Marvell industrial-grade network switching chips, performance is stable and reliable

◆ Industrial-grade surge protection 3000V (power)

◆ To provide low delay of data transmission.

◆ Adaptive parallel line / crossover cable connection

◆ Guide rail type installation, easy and quick installation;

◆ Power overload protection, positive and negative anti-reverse connection protection;

◆ Industrial product standard, working temperature -40℃ ~ 85℃, protection grade IP40;

◆ Support DC44V~DC57V dual redundant power input;

◆ Support 9216bytes the long packet transmission.

◆ Built-in efficient exchange core, the broadcast storm, flow control, CRC error checking.

◆ Industry-standard design, IP40 shell protection

◆ Power port support POE function, construction is more convenient.

◆ Automatically compatible with IEEE802.3, IEEE802.3U, IEEE802.3X network protocols

◆ Supports full duplex and half duplex transfer modes, and with auto-negotiation skills

◆ Support the MDI/MDI - X adaptive, inside take a store-and-forward mechanism.

◆ Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be about 250M.

◆ Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.

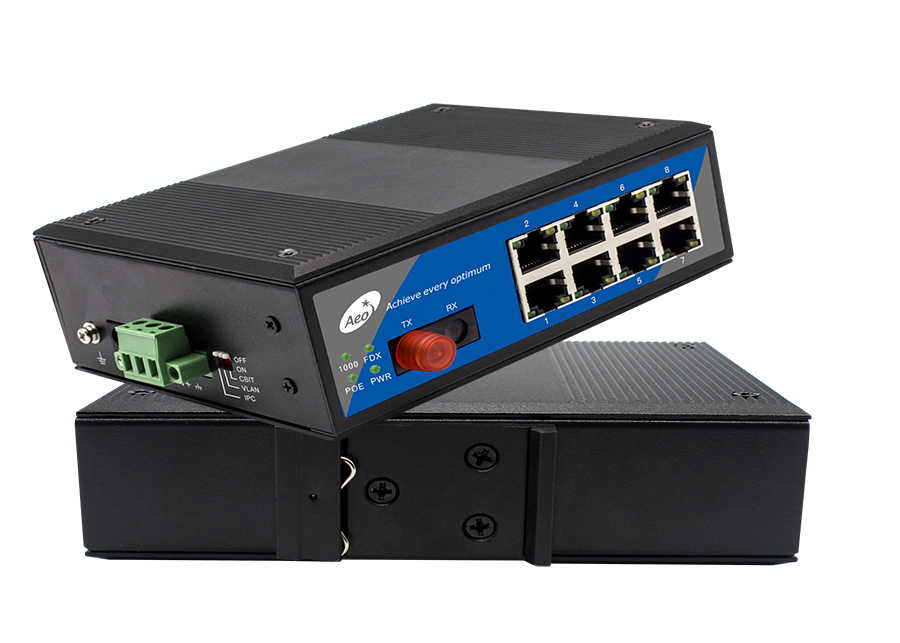

Product Pictures

Application Diagram
