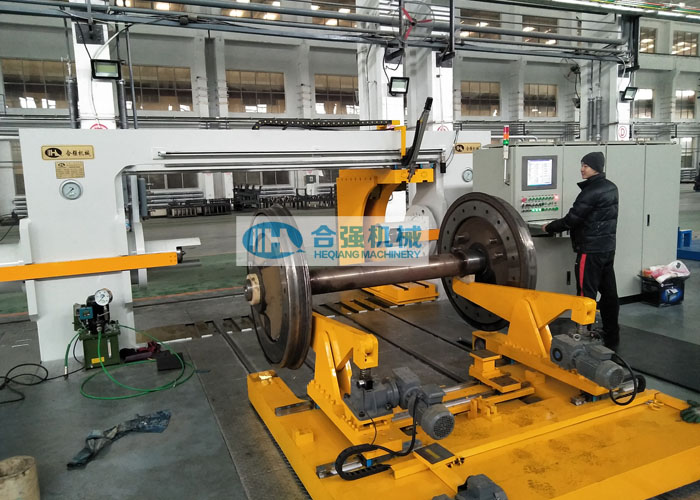

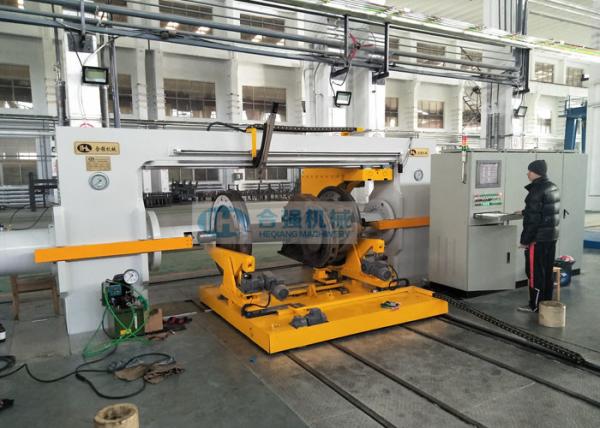

3500kN Locomotive Wheelset Press Machine With Double Cylinders

Automatic Locomotive Wheelset Press With Double Cylinders For Wheelset Mounting & Dismounting

Application scope:

This Automatic Wheelset Press is mainly used for mounting, dismounting and backpressure test of the locomotive wheelset wheel discs, brake discs and gears. It can generate, record, save and print the pressing curve (Pressure vs displacement, pressure vs time) in the required format. It's only required one operator to operate the press.

Technical parameters:

(*Above parameters are indicative, and can be modified as percustomer's requirements.)

Machine features:

• Overall gantry frame structure, with high strength, good rigidity and less deformation;
• Special patented elastic centring devices for center hole positioning;
• Double-end cylinder pressing, only need one positioning without reversal of the axle to proceed both side wheels' mounting & dismounting;
• Unique invention patented cylindrical ram for wheel mounting, with high pressing accuracy;
• Movable resistant column with replaceable inserts for wheelset dismounting;
• Electrical support trolley for wheelset loading and unloading. It will exit from the machine during the mounting/dismounting operation.
• Gearbox support is provided to support the gearbox. It will keep supporting the gearbox during the whole mounting/dismounting process.
• With high-pressure oil injection pump for wheelset dismounting;
• Mounting and dismounting the wheelset with a single positioning on the wheel press;
• Automatic recording of mounting curve, radial and axial run-out and back pressure test of each mounted component;
• Siemens S7 PLC and Advantech Industrial computer for operation control.
• High pressure oil injection pump is available for option.

Cooperation contact:

If you are interested in our wheelset presses or any assistance required, please contact us for more information!

Hubei Heqiang Machinery Development Limited by Share Ltd was established in December of 2000. The company is located in Ezhou of Hubei province, next to Wuhan city, with an area of 40,000 square meters and 120 employees. Since its establishment, Hubei Heqiang is mainly engaged in R&D, design, manufacture, sales, maintenance and service of railway workshop equipment and forging equipment. After more than 20 years' rapid development, Hubei Heqiang has already grown into one of the leading manufacturers of raiway workshop equipment and forging equipment in the market.

Hubei Heqiang is a High-Tech enterprise and owns more than 130 patents, including 11 invention patents and 14 software copyrights. The company always adheres to the quality policy of "Innovative design, Strict control, Elaborate assembly and Customer satisfaction", and currently has more than 150 sets of equipment for metal machining, welding and test. It has formed an unique system of equipment configuration and quality control and got the certificates of ISO9001:2015, ISO14001:2015 and ISO45001:2018. During business operation process, Hubei Heqiang always adheres to the implementation of the industry's highest management standards, continuous improvement of the work, continuous improvement of products and service, to reach the maximum pursuit of customer satisfaction.

The company is committed to build Hubei Heqiang into the most advanced manufacturer of railway workshop equipment and to provide better products and service for all the related industries.

The products have been exported to Mauritania, Guinea, Kenya, Algeria, Serbia, Poland, Russia, Azerbaijan, Uzbekistan, Mongolia, Saudi Arabia, Iran, Myanma, Vietnam, Malaysia, Singapore, Indonesia, Peru, Chile, Suriname, Colombia, Mexico, Canada, etc.
