Medical Capsule Dynamic Checkweighers Pill Capsule Sorting Machine YCW 210

Categories Dynamic Checkweighers
Brand Name: EASYWEIGH
Model Number: YCW-210
Certification: CE, ISO9001
Place of Origin: Guangdong, China
MOQ: 1 Set
Delivery Time: 25 work day
Packaging Details: wooden package
Power Supply: AC220V±10% 50HZ(60HZ), AC220V±10% 50HZ(60HZ)
Display Type: 17-inch Display
Product name: Grading machine
Rated Power: 0.4KW
Checking Range: ≤500g
Accuracy: ±1g~±3g
Minimum Scale: 0.1g
Belt Speed: 20~90m/min
Optimal Throughput: 200 pcs/min
Suitable Product Dimension: ≤200mm (L)*150mm(W)
Weighing Belt Dimension:: sion: 350mm(L)*200mm(W)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

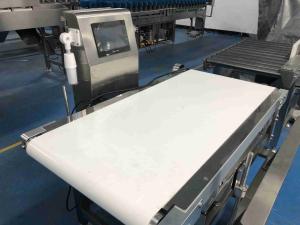

Medical Capsule Dynamic Checkweighers Pill Capsule Sorting Machine YCW 210

Medical Capsule Dynamic Checkweighers Pill Capsule Sorting Machine YCW 210

New Medical Capsule Check Weigher Pill Capsule Sorting Machine Dynamic Checkweigher Easyweigh YCW-210

Hi-speed accurate multi-weight grader for seafood and poultry

Suitable for inspecting small light products, ensuring overall quality.


  • Generate production report.

  • On board touch screen operating system is easy to use with user password protection, store upto 99 product setups.

  • Adjustable height, easy integration with existing production line.

  • Sturdy and robust construction built to last.

  • Record up to 1 year production data, exportable to USB FlashDrive with optional bluetooth connectivity.

How does it work?

Checkweighers are applied in many industries such as pharmaceutical,chemical, food and consumer goods, help you to saves money from giveaway, increase productivity and value.


As objects move across the belt, the checkweigher would dynamically weighthe products,eliminate items with improper fill or missing parts in a kit by automatically rejecting them from theline.



Model

YCW-210

Power Supply

AC220V±10% 50Hz(60Hz)

Rated Power

0.15KW

Checking Range

≤1000g

Accuracy

±0.3g~±1g

Minimum Scale

0.1g

Belt Speed

20~100m/min

Suggested Product Dimension

≤280mm L * 200mm W

Weighing Belt Dimension

400mm L*210mm W

Machine Dimension

1522mm(L)*575mm(W)*1222mm(H)

Rejector

Swing arm/Pusher

Control Module

High Speed A/D Sampling Module

Product Preset

99

Conveyor Direction

From Left to Right (Right to left optional)

Compressed Air

0.6-1Mpa

Nozzle Connector Type

Φ8mm

Operating Requirement

Temperature: 0℃~40℃,Humidity:30%~95%

Machine Body Construction

SUS304 Full Stainless Steel

1, How to choose the most suitable products ?

A: Our professional team will give you the best suggestion as long as you tell us what kind of food you need to check and the required specification.


2, What is lead time of this products ?

A: The lead date is about 25-30 days.


3, Can you provide special design and configuration for us ?

A: Customized production available, special production available as percustomer drawing.


4, How to install and use the product ?

A: The product is shipped with an operating instructions and video of English version.
