W100mm Mortise And Tenon Machine , MXK3810 Cnc Milling Machine

Categories Woodworking Mortising Machine
Brand Name: Easwon
Model Number: MXK3810
Certification: CE
Place of Origin: China
MOQ: 1 set
Price: negotiated
Payment Terms: L/C, T/T
Supply Ability: 500 sets per month
Delivery Time: 15 days
Packaging Details: wooden case
Model: MXK3810
Max. tenoning width: 100mm
Max. tenoning thickness: 25mm
Max. tenoning depth: 40mm
Main motor power: 3kw
Condition: New
Warranty: 1 year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

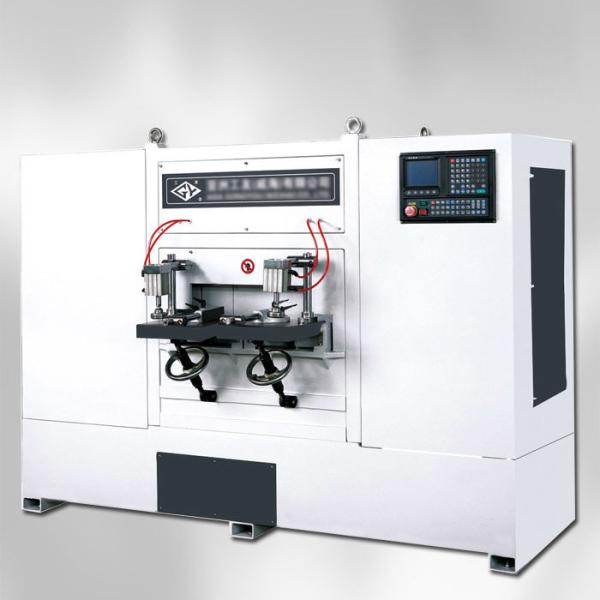

W100mm Mortise And Tenon Machine , MXK3810 Cnc Milling Machine

MXK3810 CNC Tenon Milling Machine


Technical specificationUintMXK3810
Max. tenoning widthmm100
Max. tenoning thicknessmm25
Max. tenoning depthmm40
Cutter internal diametermmØ30
Cutter diametermmØ86(Ø114)
Main spindle speedr/min7000
Main motor powerkw3
Table forward tilt angle°0-30°(30°,45°)
Max. workpiece sizemm100x100(W x H)
Horizontal motor powerkw1
Vertical motor powerw750
Max. X working speedm/min5
Max. X moving speedm/min10
Max. Y working speedm/min5
Max. Y moving speedm/min10
Air source pressureMPa0.4-0.6
Overall dimensionmm2250x1150x682
Net weightkg1180

Cheap W100mm Mortise And Tenon Machine , MXK3810 Cnc Milling Machine for sale
