120mm Resin Casting Zero Sequence Current Transformer Split Core Protection

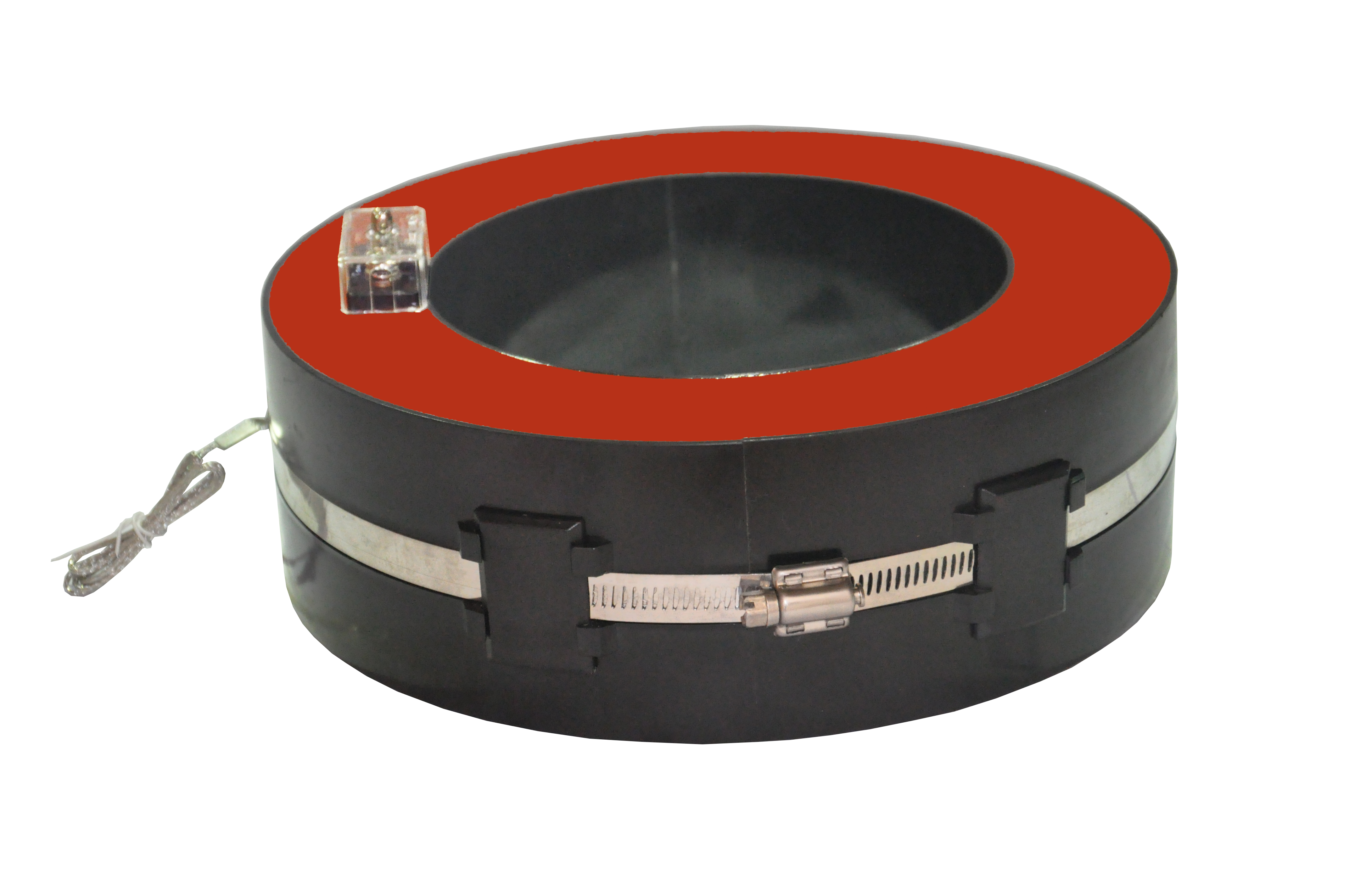

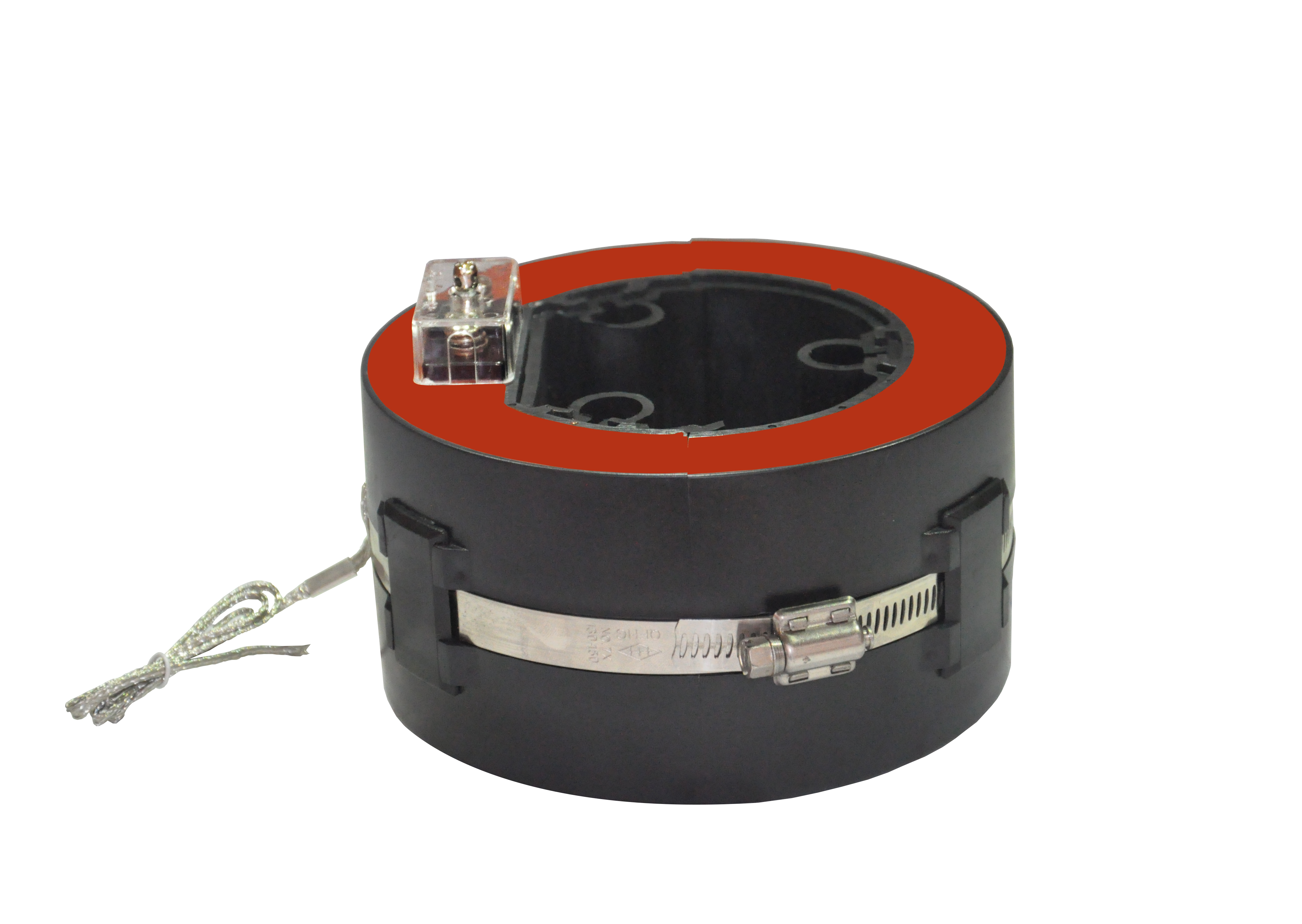

LZCK2500-10 120mm 50/5a Resin Casting Split core Protection Zero Sequence Current Transformer 5P20

GFUVE LZCK2500-10 is a zero sequence current transformer, can used wildly,the accuracy up to 10P5 and 10P10 5P20.

The protection current transformer is used to reduce the currents in power systems, producing proportional currents in the unit’s secondary windings that remain isolated from the main circuit. The replica current is then used as an input to a protective relay, which can then automatically isolate part of the power circuit should it experience a fault.

Protection Current Transformers are designed to measure the actual currents in power systems and to produce proportional currents in their secondary windings which are isolated from the main power circuit.

protection cts are used for protection against over current or faulty current, their secondary is

thusconnected to the protection relays and the to the tripping coil. there may be series or shunt

tripmechanism, thus the burden(VA) of protection ct is more as compared to metering cts.

The classification of protection current transformers follows the following simple formula: "10 P10" Manufacturers of protection devices will normally specify the classification for the

protection current transformer intended to operate the particular protection device concerned.

This is required for protection CT, because the fault current is high and the CT should be able tosense the high fault current accurately to protect the system. The common numbers are 10, 15, 20 and 30. Class PS: PS is for 'Protection Special'. This class of CT's are used for special

Protection such as differential protection, distance

Parameters

Technical Data

Order information

If you want to learn more information,please feel free to contact us.

Beijing GFUVE Instrument Transformer Manufacturer Co., Ltd. was established in 2008. It combined design, manufacturing and sales together as one high-tech enterprise. GFUVE Instrument Transformer company mainly produces less than 35kV current transformer and voltage transformer, split core ct and current clamp models etc.

GFUVE is a leader manufacturer of split core current transformer products in China. It is professional in current transformer, potential transformer and related accessory. The product of outdoor split core current transformer develops very quickly in the global market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia, Australia and Africa.

Please contact us now for further business relationship. We are here to provide you the best service and the best product.
