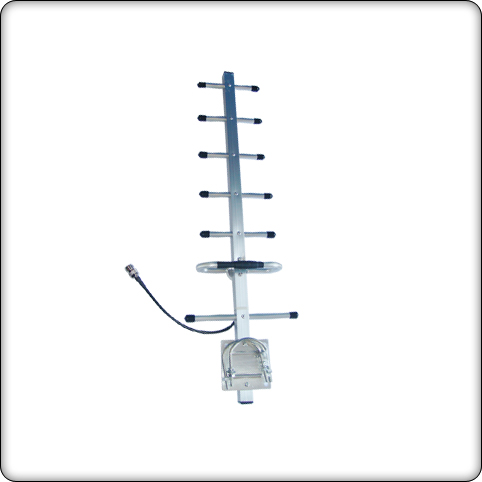

10dBi Directional Outdoor Yagi Antenna 824-960MHz GSM CDMA LTE

10dBi Directional Outdoor Yagi Antenna High Gain 824-960MHz GSM/CDMA/LTE Antenna

Model: VBE-A10Y

Electrical Specifications

Frequency Range: 824 ~ 960MHz

Polarization: Vertical

VSWR: < 1.4

Gain: 10 dBi

Horizontal 3dB Beamwidth: 51°

Vertical 3dB Beamwidth: 49°

Front-Back Ratio: >14dB

Impedance: 50Ω

Maximum Input Power: 100 W

Connector: N(F)of 7/16DIN(F)

Lightning Protection: Direct Ground

Mechanical Specifications

Dimensions: 740*190*55mm

Weight of Antenna: 0.7kg

Elements: 7

Diameter of Installation Pole: Φ40 mm ~Φ52mm

Wind Velocity: 241km/h

Company Introduction

VBE Technology Shenzhen Co., Ltd  is a leading Intelligent RF Security Solutions Provider. VBE located in Shenzhen, we have been in the RF industry for more than 15 years. Parent company of VBE founded by Technical Expert which has been in RF industry for more than 25 years.

VBE mainly focus on the following products series and solutions:

 VIP Convoy Bomb Jammers (RCIED Jammers), EOD Jammers, Mobile Signal Jammers, Prison Jammers, Portable Jammers, Handheld Jammers, Anti Drone Jammers, RF Modules, Interceptors, RF Repeaters, Signal Boosters, etc.

Our products are mainly applied for military convoy and defence, VIP protection, EOD operations, electronic countermeasures, riot controls, wireless telecommunications, broadcasting, aerospace,secret keepings, etc.

Our worldwide partners helped us to serve for the users of more than 50 countries in Europe, Southeast Asia, Africa, South America, North America and Middle East for the Telecom Operators and Consumers. Select VBE, you got a reliable and long term partner.

For being able to provide our customers with more advanced and reliable solutions, we still explore into new areas for new challenges.


Our Vision is to be the Total Intelligent Security Solution Provider.
