| Categories | Conveyor Belt Machine |
|---|---|
| Brand Name: | Osmanuv |
| Model Number: | OSM-ZWJ-1320# |
| Place of Origin: | CHINA |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Delivery Time: | 35-45 Working days |
| Packaging Details: | Wooden Box |
| Certification: | ISO9001 And CE |
| Weight: | 1500kg |
| Voltage: | 220V50HZ |
| Power(w): | 0.75KW |
| Warranty: | 1 Year |
| Net paper width: | 1320mm |
| Working speed: | 1-10m/min |
| Supply Ability: | According to customer's demand |
| Company Info. |
| Dongguan Osmanuv Machinery Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

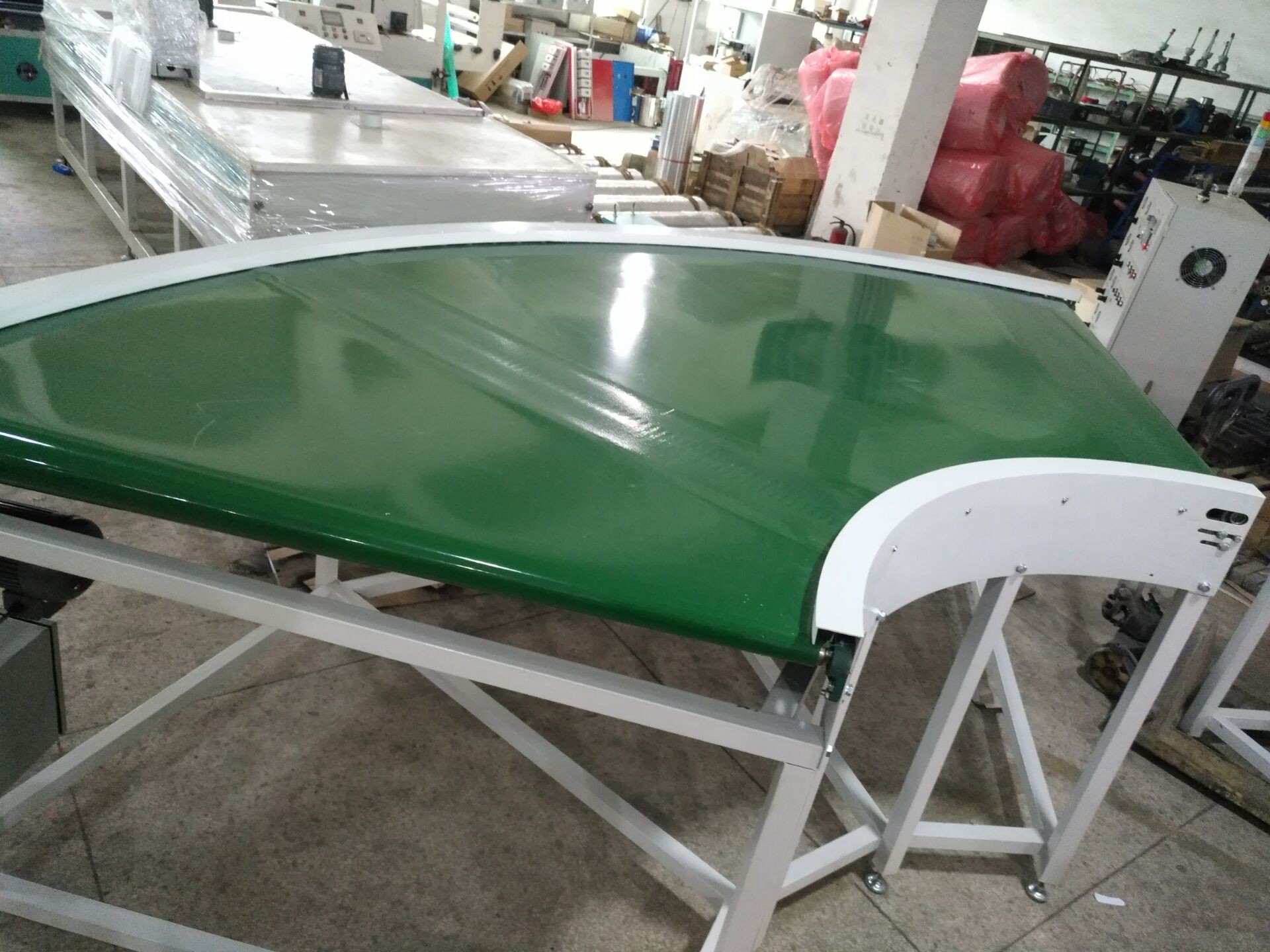

10m/min 180 degree turning Belt Conveyor Machine / Conveyor Belt Lacing Machine
Description:
| ■180 degree turning machine |
| 1 | Product name | 180 degree turning machiner. |
| 2 | Model: | OSM-ZWJ-1320 type. |
| 3 | Features: | Suitable for all kinds of panel furniture, calcium silicate board, solid wood composite floor, flat board crafts, bamboo and wood curtains, etc.Workpiece transportation for water operations. |
| 4 | Mechanical dimensions | 2500mm long × 1620mm wide × 850mm high. (Can be customized according to actual needs). |
| 5 | Power supply voltage: | 220V, 50HZ. |
| 6 | Material | It is made by bending and welding 1.5mm cold-rolled plate, the surface is painted, and equipped with adjusting foot cup, which is strong and durable. |
| 7 | Conveyor belt | adopt green 3.0mm PVC belt to convey, width: 1320mm, long service life, stable conveying. |
| 8 | Transmission system | The bearing adopts KHV bearing, Beiji reducer, Taiwan Delta inverter control, the speed can be adjusted 5-20 m/min, and the speed can be adjusted steplessly. |
| 9 | Electrical part | use OMRON relay, CHNT contactor, Beiji reducer, Taiwan Delta inverter, delay time adopts CKC brand, switch adopts Japanese Izumi company production, all comply with national electrical standards. |
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and
export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines,
and make a video for you to watch the testing, factory visit is
also available. Moreover, our products are widely used in China,
Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and
our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
|
