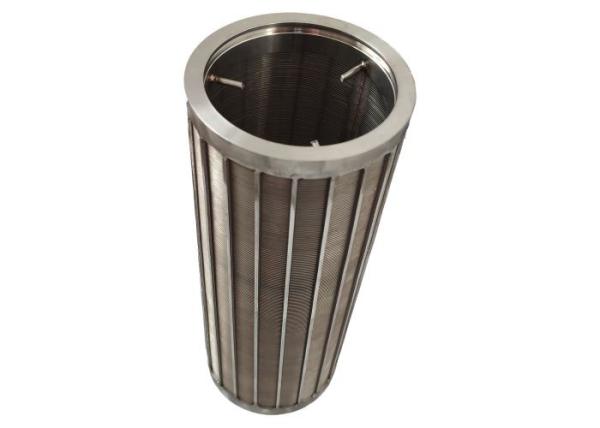

Length 500mm 0.4mm Slot Sediment Filter Cartridge Resistance To Clogging

Resistance To Clogging And Waste Water Treatment Wedge Wire Screen Filter

Wedge Wire Screen Filter Characteristics:

The Wedge Wire Rotary Drum is a drum sieve loaded from inside for separating suspended solids, particles

and fibres from liquids, process water and waste water.

The rotary drum can be equipped with different types of sieves or filters like perforated metal plates, wedge

wire screens and fabrics. This leads to a wide range of applications for various types of mediums.

So it is also possible, for example, to treat hot washing and process water.

It can be used as a washing drum for the dewatering of special products as well

Wedge Wire Screen Filter Description:

The Wedge Wire Rotary Drum is widely used for mechanical filtration.

It can separate solids, suspended substances(including feces, food waste and other organic water) over

30μm from water. The particles are filtered as the water flow through the sieve.

The rinsing system washes the wastes away from the sieve automatically and keeps the drum running

efficiently.

Material	SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
OD Range	According to request and the actual flange and strengthen bar
Normal ID	176mm,200mm,230mm,255mm. According to request
Normal Length	400mm,500mm 550mm 600mm,602mm According to request
Normal Slot	0.21mm, 0.4mm, 0.41mm, 0.8mm. Customized 0.02-3mm.
Slot Direction	Radial Direction
Wedge Wire	0.75x1.5	1x2	2x3	2*4	3*5
Support Rod	1.5x2.5 2x3	1.5x2.5 2x3	2x3 2x4 3x5 3x6	2x4 3x5 3x6 5x6	3x5 3x6 5x6
End Finishing	Flange, , Metal Ring, etc
Note	Customized According To Requirement

Wedge Wire Screen Filter Application:

For special areas of application (among others, the starch industry) screen cylinders can of course also

be manufactured in looped finish. Adjoining is an example of two end flanges. In this case, as well,

almost all requirements by our customers can be realized after corresponding technical clarification.

Wedge Wire Screen Filter Advantage:

high screening rate, abrasion resistance, corrosion resistance, anti - slip,

anti - vibration, strong elasticity, toughness, not close.The mesh section is trapezoid or wedge.

There's room in the gap.It is made of stainless steel wire cold rolled screen, support bar is welded

by automatic production equipment, screen seam uniform, stable welding quality, high porosity,

long service life, high strength, steel degree and bearing capacity, can be made into various shapes

of screen filter device.

Wedge Wire Screen Filter Packing & Delivery

Anping Baitong Wire Mesh Products Co.,Ltd

Anping Baitong Wire Mesh Products Co.,Ltd Formerly known as Anping County Baitong Screen Factory, is a production and processing filter and deep processing products of enterprises.
The company is located in the hometown of wire mesh, wire mesh industrial base -- hebei anping, the main production and operation of Wedge Wire Filter Screen, Wedge Wire Mesh, V Wire Screen,Seam Mesh,Perforated Metal Mesh, Punching mesh, Solid Liquid Separation Screen, Solid Liquid Filter Rotary Drum and other wire mesh products, widely used in petrochemical, environmental protection, machinery, construction, aerospace and other industries.
We insist on adhering to the "integrity, professional, win-win" business philosophy, adhere to customer first, quality first, service customers with science and technology, adhere to the technological progress, continuous innovation, and constantly go beyond the more.
The products are exported to more than 20 countries, as well as Japan, South Korea, Europe and America, southeast Asia, deeply domestic and foreign user's trust and praise.
Baitong will continue to give full play to its comprehensive advantages in the field of wire mesh products, constantly meet customer needs, to provide high-quality products and services for global partners.
Our company will continue to support good technologies and solutions, further expand the broad space for development, and strive to build an honest, pragmatic, harmonious and win-win cooperative relationship
