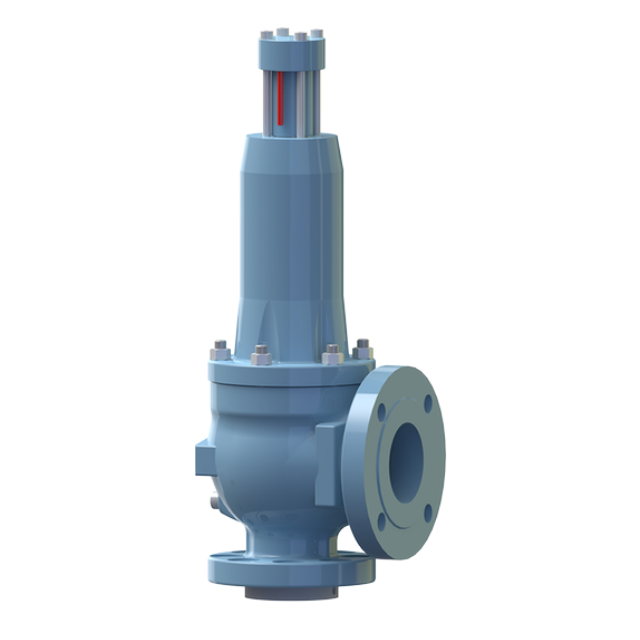

Safety Valve Pressure Steam Sempell Series S With DIN Flanges Direct Spring-Operated Safety Valve

Safety Valve Pressure Steam Sempell Series S With DIN Flanges Direct Spring-Operated Safety Valve

Safety Valve Pressure Steam Sempell Series S With DIN Flanges Direct Spring-Operated Safety Valve
Safety Valve Pressure Steam Sempell Series S With DIN Flanges Direct Spring-Operated Safety Valve
Categories Safety Valves
Brand Name: Sempell
Model Number: Series S Safety Valve
Place of Origin: China
MOQ: 1 set
Payment Terms: T/T, L/C, D/A, Western Union
Supply Ability: 10 SETS PER MONTH
Delivery Time: 30-60 WORK DAYS
Packaging Details: WOODEN BOX
Size Inlet: DN 25 - DN 200 / NPS 1 - NPS 8
Pressure rating: PN 10 - PN 500 class 150 - class 2500
Temperature Rangep: 200°C to +700°C -300°F to +1300°F, -450°F to +1000?F
Set pressure: 0.2 bar - 500 bar, 15 - 6000psi
Orifice Diameter: 14 mm - 160 mm, 0.11 in - 26 in
Design: Acc. to EN/DIN or API 526
Body material: 1.0619/SA216 WCB;1.7357/SA217 WC6;1.6220/SA352 LCC;1.4408/SA351 CF8M
Accessories: Cooling spacer, balanced piston, lifting lever, test gag
Application: Steam, gases and liquids
Color: Blue
Contact Now
Company Info.
Xiangjing (Shanghai) M&E Technology Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Safety Valve Pressure Steam Sempell Series S With DIN Flanges Direct Spring-Operated Safety Valve

Safety Valve Pressure Steam Sempell Series S With DIN Flanges Direct Spring-Operated Safety Valve

Direct spring-operated safety relief valve with DIN flanges, ASME flanges or welding end connections

Features

• Single trim design for steam, gases and liquids

• Balanced bellows and open bonnet

• Rigid light weight body construction

• Cap design ensures safe and reliable assembly of valve lifting levers

• Locking for hydrostatic test without additional parts, cap top doubles up as gagging device

• Gagged status indicator

• Mechanical lift stop ensures functional stability

• Cooling spacer, position indicator and adjusting ring available

Applications

Type-tested for use with steam, gases and liquids (German TÜV, American NB and Chinese SELO). Available with actuator for use as pneumatic operated safety valve.

Product Description
Specification
item
value
Warranty
1 Year
Type
Temperature & Pressure Relief Valves
Place of Origin
China
Shanghai
Brand Name
Sempell
Model Number
VSE0
Application
General
Power
Electric
Media
Base
Size Inlet
DN 15-DN 25 NPS 1/2 -1
Pressure rating
PN 10- PN 400 class 150 - class 2500
Temperature Rangep
-200°C to +200°C -300°F to +400°F
Set pressure
1 bar-400 bar
Orifice Diameter
7.5mm or 9 mm
Design
Flanges and threads according to DIN, BS and ASME
Body material
1.0619 / A216 WCB 1.4408 / A351 CF8M
Accessories
Soft seat, lifting lever, test gag
Application
thermal relief
Applications
more
Company Profile
Xiangjing (Shanghai) Electromechanical Technology Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conservancy and hydropower, thermal power generation and other mechanical and electrical equipment products; Well-known brand fluid control valves; instrumentation; hydraulic pipe fittings; bearings; seals; industrial automation and other high-tech enterprises. With our dedicated service, our customers' work is made easy and efficient. As a comprehensive supplier of electromechanical products, Xiangjing (Shanghai) Technology Co., Ltd. adheres to the modern market concept of customer-centered, relying on the rich product resources of the Doctoral Group and the industry e-commerce platform and the centralized professional service team to pass professional orders. Procurement, specialized inventory and distribution management and specialized technical support to achieve accurate and timely delivery services, localized services and quick and timely response, maximizing customer value, effectively shortening your spare parts supply cycle and effectively reducing inventory Effectively improve the efficiency of your work, thus effectively improving the overall competitiveness of the company.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2015,sell to South America(40.00%),Southeast Asia(30.00%),Eastern Europe(20.00%),Western Europe(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Valve,Valve Accessories

4. why should you buy from us not from other suppliers?
Xiangjing (Shanghai) Electromechanical Technology Co., Ltd. is mainly engaged in the technical development, technical consultation, technical service, installation and commissioning services of marine engineering, oil and gas, petrochemical, water conserva

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
