| Categories | Facial Recognition Access Control System |
|---|---|
| Brand Name: | TIMMY |
| Model Number: | TM-AI06 |
| Certification: | CE FCC RoHs |
| Place of Origin: | Shenzhen, Guangdong |
| MOQ: | 1pcs (sample) |
| Price: | Negotiable |
| Payment Terms: | D/A, D/P, T/T, ,Paypal |
| Supply Ability: | 10000pcs Per month |
| Delivery Time: | 5-10 work days |
| Packaging Details: | 12pcs/ctn 630*430*548mm /ctn |
| CPU: | 1.2G Dual-Core ARM Cortex-A7 |
| NPU: | 0.6T |
| Camera: | 2MP hd color WDR camera, 200W Infrared camera |
| RAM/ROM: | 256M DDR; 4G EMMC |
| Display: | 4.3" Capacitive LCD touch screen |
| Operating system: | LINUX |
| User capacity: | 5000（20000） |
| Fingerprint capacity: | 10000（40000） |
| Record Capacity: | 500,000 |
| Identification style: | Visible Light Facial Recognition, PIN, face & PIN combination ,ID(IC) |
4.3 Inch LINUX Facial Recognition Access Control System 1.2G Dual Core
TM-AI06 is widely used in government agencies, intelligent building buildings, office buildings, high-end real estate communities, colleges and universities, enterprises and institutions, industrial and mining enterprises and other places as access control and attendance equipment.
AI is Artificial Intelligence. It is a neural network that imitates human brain and can learn deeply. The embedded neural network processor adopts a "data-driven parallel computing" architecture, and is particularly good at processing massive multimedia data such as videos and images.
Neural network processor unit is NPU.
| Product name | AI Dynamic Face Recognition Time Atendance Access Control Terminal |
| Screen | 4.3 Inch, HD 272*480, Capacive Touch Screen |
| Keypad | Touch keypad |
| Operation system | LINUX 3.10 |
| CPU.NPU | 1.2G Dual-Core ARM Cortex-A7, 600G (0.6T) |
| RAM | 256MB DDR3 |
| ROM | eMMC Flash 4GB |
| Binocular camera | 200W Colorful WDR+200W Infrared live camera |
| Logs capacity | 500000 |
| Face Regitration | Local operation: Enroll face with machine, import user photo with U disk |
| Sotware operation: Import user photo to software, capture user photo with camera | |
| Verification | Dynamic face recognition, password, ID/IC card optional |
| Face capacity | 5000 (50000 optinal) |
| Card Capacity | 5000 (5000 optinal, ID Card Standard, IC Card Optional |
| Password Capacity | 5000 (50000 oplinal) |
| Face Recognition Accuracy | 99.70% |

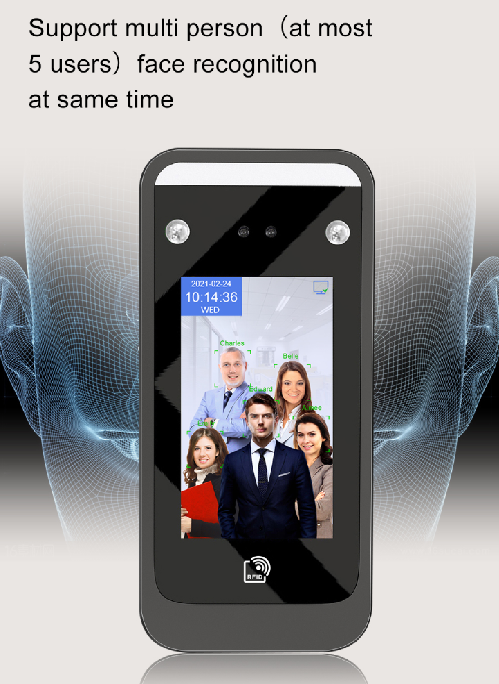

| Recogntion Speed | ≤0 .2s, support single user/multi user(at most 5 users) recognition at same time |
| Recognition Distance | 0.5~2.5 meters (0. 5~1.5 meters with live face recognition on) |
| Prevent Photo | Dual camera ani-counterfeitig. prevent recognition with photo/video |
| Principle of identification | Face algorithm technology of multi-task cascaded convolutional neural network based on |
| video stream for dynamic face detection, tracking and recognition | |
| WDR | Wide dynamic range, support accurate face recognition under Strong light., dark light and backlight |
| USB | USB2.0x1. Support U disk import/export data |
| Power supply | DC12V interface*1 |
| Speaker Interface | Reserved for extended Speaker Interface |
| Network Communication | TCP/IP, Support C/S LAN communication, Wifi (optional) |
| Free Atendance software | Support exporting excel attendance report with U disk |
| Shift | Support shift setting and importing shift schedule with U disk |
| Management Software | Support PC software to manage data through network connection with equipment |
| Access Control Function | Door unclosed alarm, forced door opening alarm, alarm linkage and
output, one set of door opening signals,one set of alarm signals,
time permission control, connect external access control reader, Wiegand 26/34 output input |
| Environmental adaptability | Working temperature: -15C~+45'C (storage temperature -40°C~+65°C). |
| Working humidity: 20%~90% (storage humidity 20%~90+2%) , | |
| Dark enviroment: LED Soft light automatic fill light (Automatic control according to ambient light) | |
| Ambient light adaptation range: 0-50000lux | |
| Multi language | English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italin, Japanese, Korean, etc |
| Broadcase and ring | Support display name, voice broadcase name, builtin bell ring |
| Automatic fill light | Support infared fill light, the white fill light automatically lights up when face is captured in dark light |
| Working Current | stand-by currnt: 310mA , Working current: 520mA |
| QR Code Scanner | Support |
| Working Voltage | DC12V |
| Installation Way | Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand |
| Device Dimension | 187.5x87 .5x26mm |
| Color box dimension | 257x171x90mm |
| Carton dimension | Size: 480*438*229mm, 12Kg/carton, 10units/carton |
Facial Recognition Access Control System FAQ:
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
|
