Metal Panel Roll Forming Machine For Guard Rail 12m/min

Categories Highway Guardrail Roll Forming Machine
Brand Name: Gracias
Model Number: Highway guardrail
Certification: CE
Place of Origin: China
MOQ: 1set
Price: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 20sets per month
Delivery Time: 30-50 work days
Packaging Details: as request
Warranty: 1 Year
Voltage: 380V 50Hz 3phases
Condition: New
Control system: Totally automatic PLC Taiwan Delta or Siemens control system .
Working speed: 10 -12m/min
Oem: YES
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

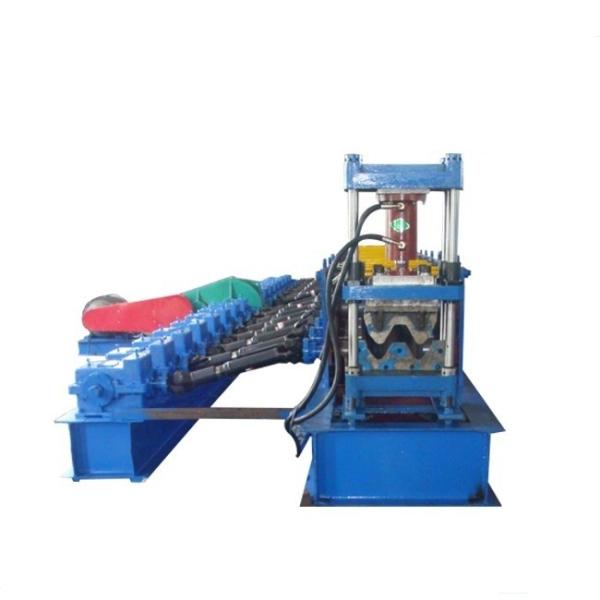

Metal Panel Roll Forming Machine For Guard Rail 12m/min

Freeway guard rail roll former machine

Model numberHighway guardrail automatic forming machine
Rolled material2-4mm thickness, General Steel such as Q235
Effective width350mm
Feeding width488mm
Forming steps16 stations
RollerGCR15, quenched treated HRC58-62°C
Diameter of shaft100mm
Main motor power37 kw
Pump power15 kw
Drive typeby chains Or by Gear box(worm driving)
Cutting BladeCr12, heat treatment 60-62°C
Frequency ConverterIt has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
component1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table

Profile drawing:


Cheap Metal Panel Roll Forming Machine For Guard Rail 12m/min for sale
