Red Case 10 Hz Hydrophone Cable For Swamp River

Categories Hydrophone Cable
Brand Name: EGL
Model Number: Hydrophone YH-25-14A
Certification: ISO9001
Place of Origin: China
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 1000set/month
Delivery Time: 5-8 work days
Packaging Details: Carton
Name: Hydrophone Cable
Natural Frequency: 10Hz (± 10%)
D C Resistance(DCR): 160 ohm (±10%)
Damping: 0.7(±10%)
Voltage Sensitivity: 14V/bar±1.5dB
Working Depth: 0.3-100m
Operation   Temperature: 0°C --- +35°C
Usage: Swamp River
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Red Case 10 Hz Hydrophone Cable For Swamp River

Red Case 10 Hz Hydrophone Cable For Swamp River


Hydrophone Cable is a piezoelectric sensor for prospecting purpose in swamp,river and shallow sea of transition zone. The product is small in size, stable, high sense for output and non-directional receiving, its high temperature injection molding seal makes it better for water proof, its tail suspension wire’s design makes it more suitable for field wiring.

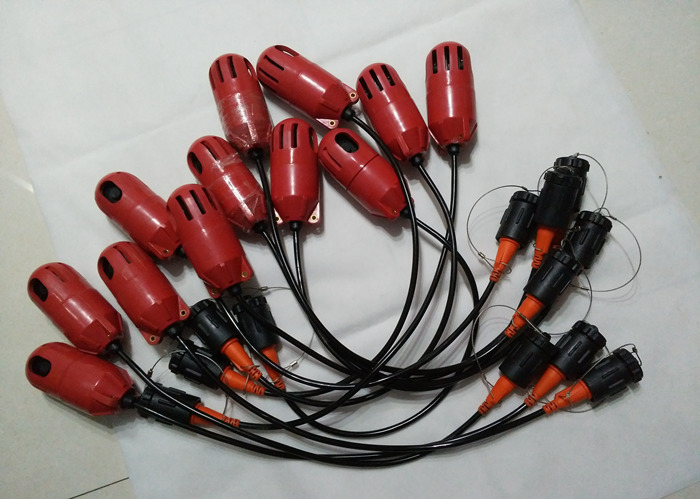

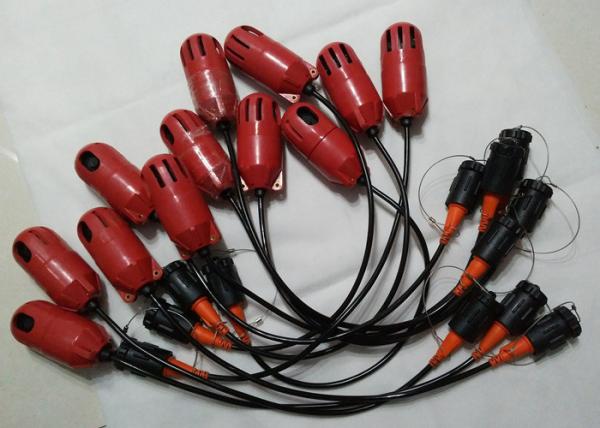

Hydrophone Cable 10Hz with red case ,with 1meter cable and terminated with KCK Screw Fit Male Connector connector .



Hydrophone Cable Parameters


TypeHydrophone YH-25-14A
Natural Frequency10 Hz (± 10%)
D C Resistance(DCR)160 ohm (±10%)
Damping0.7(±10%)
Voltage Sensitivity14V/bar±1.5dB
Test @25°C
Working Depth0.3-100m
Operation Temperature0°C / +35°C
Cable LengthAs per client’s requirements
Connector TypeAs per client’s requirements
Unit Length158mm( 6.22 in )with case
Unit Diameter60mm ( 2.36 in ) with case
Weight530g
CompaticityCan be interchanged with MP-25,P-44A and LS-2512.
