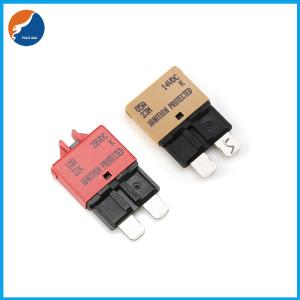

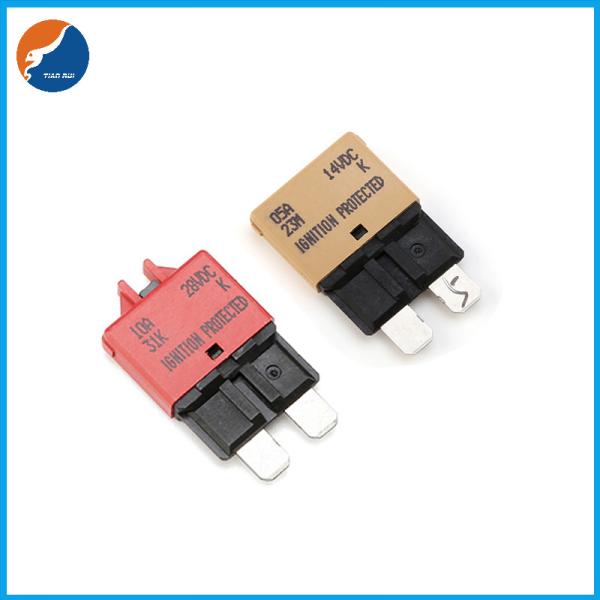

28V Resettable Circuit Breaker

E39 14V 28V DC 5A 6A 7.5A 10A 15A 20A 25A 30A Car Automotive Auto Manual Reset ATC Blade Fuse Resettable Circuit Breaker

E37 E38 E39 Circuit Breaker can be typically used in auxiliary and accessory circuits in truck, bus',RVs and marine systems. Others include battery chargers and DC audio systems, engine compartment and bilge area applications.

Description of E39 Blade Fuse Resettable Circuit Breaker

•Single pole thermal type breakers.
•Rating: 5-30A, 28V dc.
•Interrupt Rating: 2000A @28Vdc.
•Operating Temperature: -40C to +85C.
•Storage Temperature Rating: -40C to 125C.
•Material: UL-Rated 94V0 thermoplastic body. Tin-plated copper alloy terminals.
•Marking: Cover is color-coded to amperage ratings.
•Termination: 5.2mm wide blades compatible with ATC fuse blocks.
•Compliances: SAEJ553; SAEJ1171(ignition protected)

Current: 5A(Pink)/10A(Coffee)/15A(Blue)/20A(Yellow)/25A(White)/30A(Green)

No need to carry spare fuses anymore
Useful item in any auto electrician's tool box
Ideal for race car APP
Size: as the picture shown
Quantity: 1 PC

Automatic reset current overload protector.
Compatible with ATC fuse blocks.
Complies with SAE J553 and SAE J1171 for ignition protection.
High quality fuse, overheating and overcurrent protection, reusable.
Repeated use, more secure. With recovery function, no need to change fuses frequently, better protection of vehicle equipment.
Suitable for equipment below 12v-24VDC, such as: car, truck, RV yacht.

Feature of E39 Circuit Breaker

Miniaturized single pole press-to-reset thermal circuit breaker designed.
For automotive fuse block installation.
Extends the benefits of circuit breaker performance and Convenience to application which are cost critical.
Manual Reset /Automatic Type

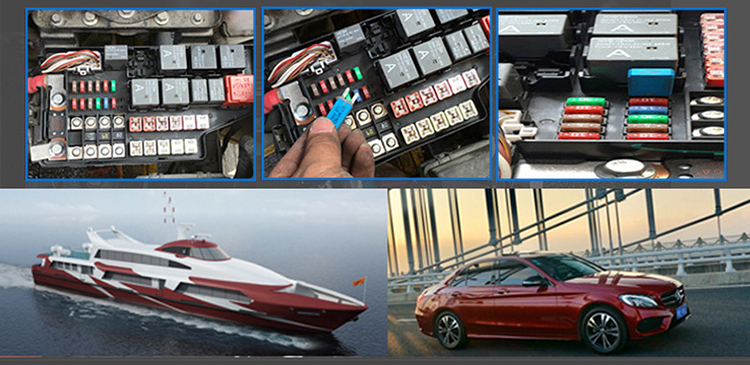

Applications of Resettable Circuit Breaker

Blade fuse style circuit breakers suitable for protection of circuits on all types of vehicles
Features a manual trip/reset button on top of the fuse
Suitable for 12 and 24 volt applications
Maximum Voltage - 28V

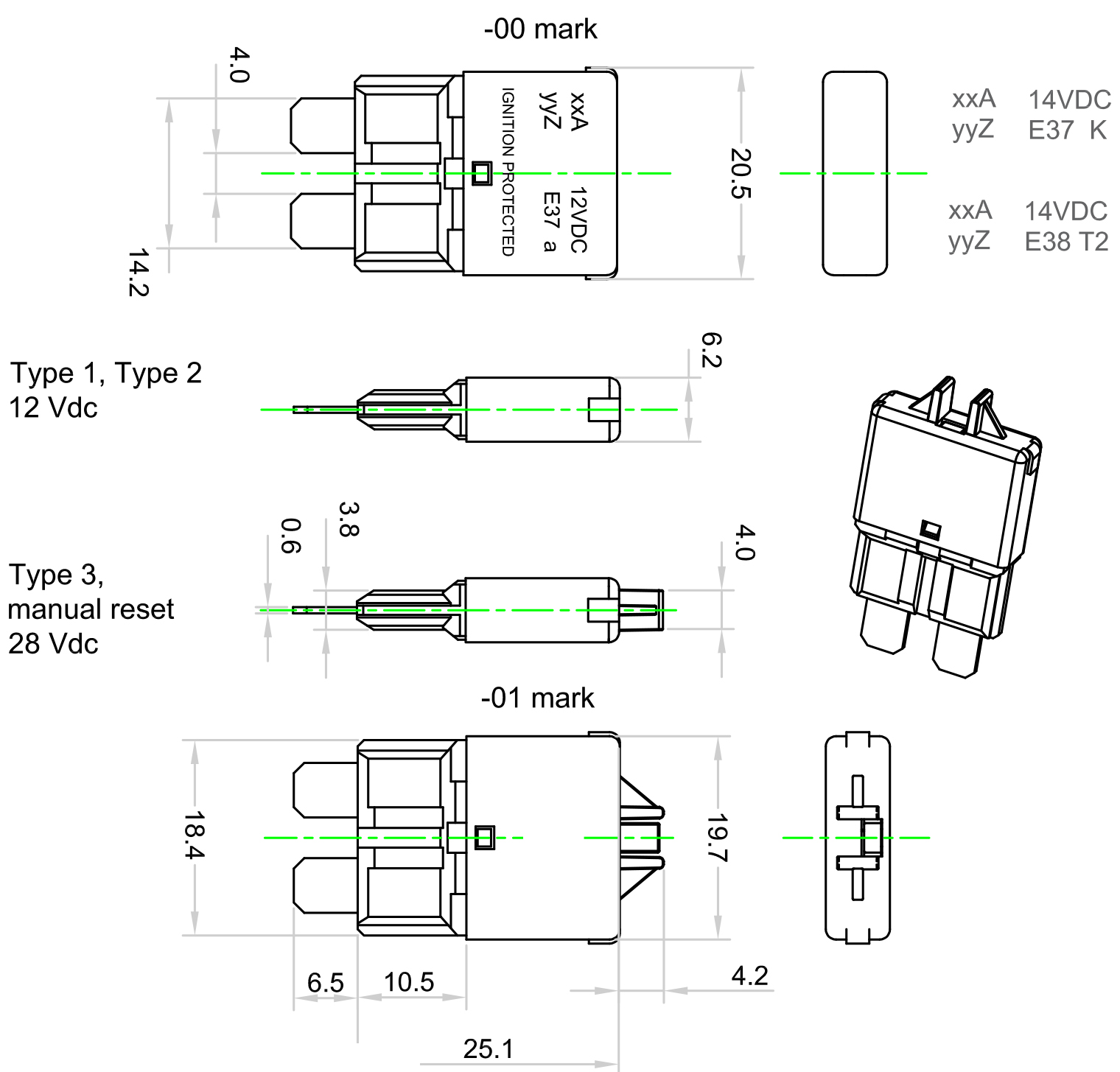

Mechanical/Environmental Data of ATC Blade Circuit Breaker

•Operating Ambient Temperature: -40 to +85℃℃
•Storage Temperature Rating: -40°C to +125°C.
•Termination: 250’’(6.3mm)quick connects or solder terminals

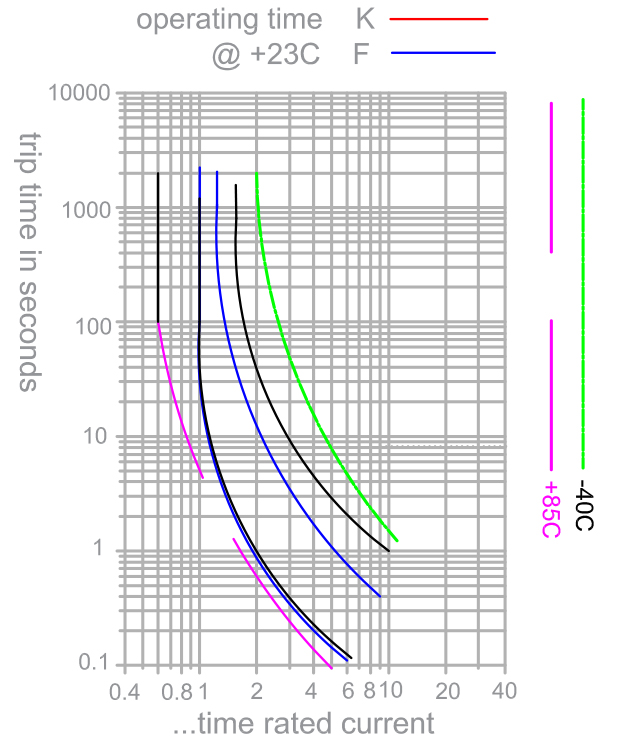

Electrical Characteristics of Blade Fuse Circuit Breaker

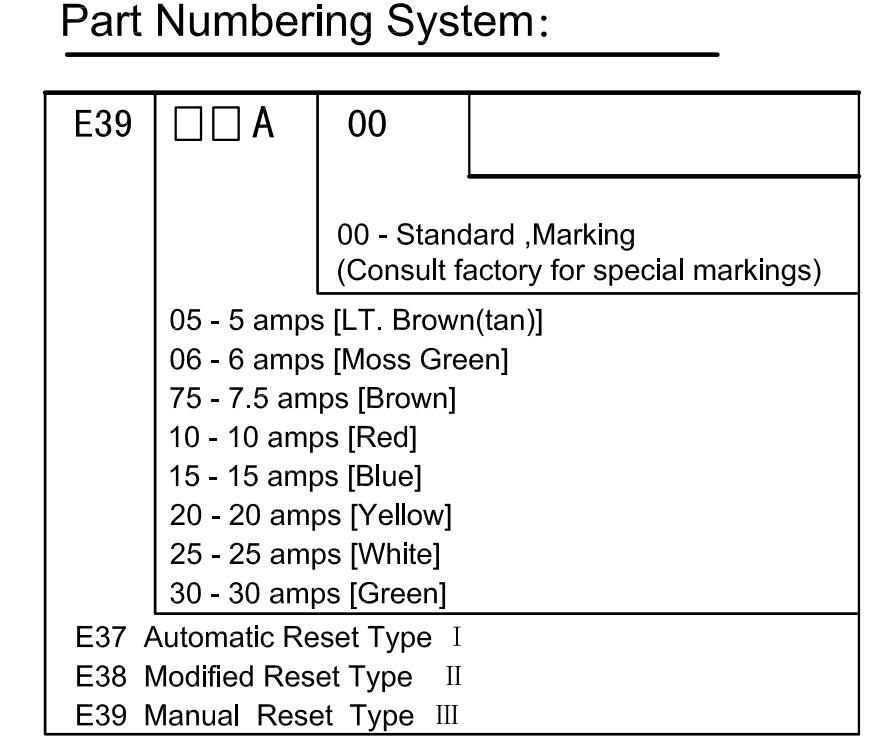

Part Numbering System of Car Automotive Auto Circuit Breaker

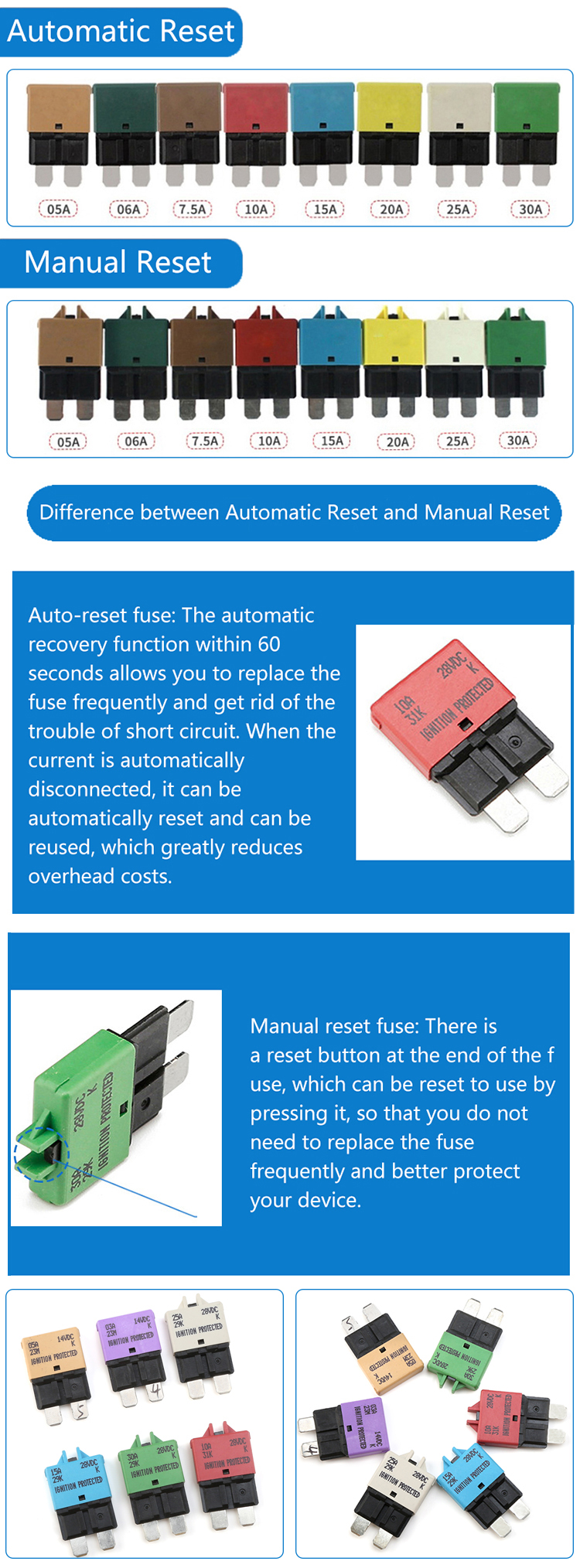

Description of E37 E38 E39 Automatic Reset Manual Reset Resettable Fuse Circuit Breaker
