FG-601E is the Fortinet NGFW Middle-range Series FortiGate 601E firewall. The FortiGate 600E /601E series delivers next generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch.
Table 1 shows the quick spec.
| Sku | FG-601E |
| Firewall | 36 Gbps |
| IPS | 10 Gbps |
| NGFW | 9.5 Gbps |
| Threat Protection | 7 Gbps |
| Interfaces | 2 x 10GE SFP+ slots 8 x GE SFP slots 8 x GE RJ45 ports 2 x GE RJ45 management ports |

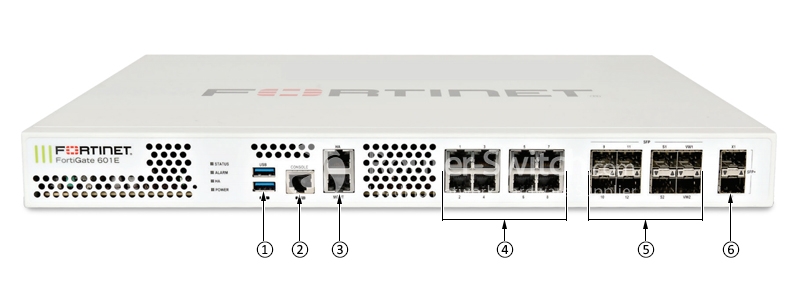

Figure 1 shows the front view of FG-601E.
Note:
| ① | 2 USB Ports |
| ② | 1 Console Port |
| ③ | 2x GE RJ45 MGMT/HA Ports |
| ④ | 8x GE SFP Slots |
| ⑤ | 8x GE RJ45 Ports |
| ⑥ | 2x 10 GE SFP+ Slots |

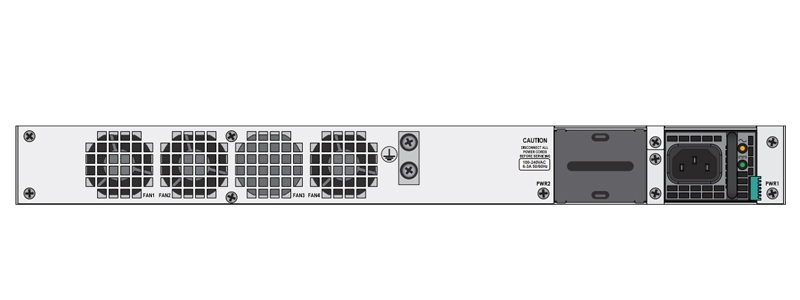

Figure 2 shows the rear view of FG-601E.
Table 2 shows the optional accessories or spares of FG-601E.
| Optional Accessories & Spares | SKU | Description |
| 1 GE SFP LX Transceiver Module | FG-TRAN-LX | 1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots |
| 1 GE SFP RJ45 Transceiver Module | FG-TRAN-GC | 1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots |
| 1 GE SFP SX Transceiver Module | FG-TRAN-SX | 1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots |
| 10 GE SFP+ Transceiver Module, Short Range | FG-TRAN-SFP+SR | 10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots |
| 10 GE SFP+ Transceiver Module, Long Range | FG-TRAN-SFP+LR | 10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots |
| 10 GE SFP+ Active Direct Attach Cable, 10m / 32.8 ft | SP-CABLE-ADASFP+ | 10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots |
| Optional Power Supply | SP-FG300E-PS | AC power supply for FG-300/301E, FG-400/401E, FG-500/501E, FG-600/601E, FAZ-200F/300F/800F and FMG-200F/300F |
Table 3 shows the bundle models and licenses of FG-601E.
| Types | Model | Description |
| Basic Firewall | FG-601E | 2x 10 GE SFP+ slots, 10x GE RJ45 ports (including 1x MGMT port, 1x HA port, 8x switch ports), 8x GE SFP slots, SPU NP6 and CP9 hardware accelerated, 2x 240 GB onboard SSD storage |
| 1 year bundle | FG-601E-BDL-950-12 | FG-601E Hardware plus 1 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-601E & FC-10-F6H1E-950-02-12) |
| 1 year License | FC-10-F6H1E-950-02-12 | 1 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-601E |
| 3 year bundle | FG-601E-BDL-950-36 | FG-601E Hardware plus 3 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-601E & FC-10-F6H1E-950-02-36) |
| 3 year License | FC-10-F6H1E-950-02-36 | 3 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-601E |
| 5 year bundle | FG-601E-BDL-950-60 | FG-601E Hardware plus 5 Year 24*7 FortiCare and FortiGuard Unified (UTM) Protection (FG-601E & FC-10-F6H1E-950-02-60) |
| 5 year License | FC-10-F6H1E-950-02-60 | 5 year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud) of FG-601E |
Table 4 shows the comparison of FG-601E and FG-600E.
| Sku | FG-601E | FG-600E |
| Firewall | 36 Gbps | 36 Gbps |
| IPS | 10 Gbps | 10 Gbps |
| NGFW | 9.5 Gbps | 9.5 Gbps |
| Threat Protection | 7 Gbps | 7 Gbps |
| Interfaces | 2 x 10GE SFP+ slots 8 x GE SFP slots 8 x GE RJ45 ports 2 x GE RJ45 management ports | 2 x 10GE SFP+ slots 8 x GE SFP slots 8 x GE RJ45 ports 2 x GE RJ45 management ports |
| Local Storage | 2x 240 GB SSD | NIL |
FG-601E Specification | |
| Type | FORTIGATE 601E |
| Interfaces and Modules | |
| 10 GE SFP+ Slots | 2 |
| GE SFP Slots | 8 |
| GE RJ45 Interfaces | 8 |
| GE RJ45 Management Ports | 2 |
| USB Ports | 2 |
| RJ45 Console Port | 1 |
| Local Storage | 2x 240 GB SSD |
| Included Transceivers | 2x SFP (SX 1 GE) |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 36 / 36 / 27 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 36 / 36 / 27 Gbps |
| Firewall Latency (64 byte, UDP) | 2 μs |
| Firewall Throughput (Packet per Second) | 40.5 Mpps |
| Concurrent Sessions (TCP) | 8 Million |
| New Sessions/Second (TCP) | 450,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) | 20 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,000 |
| Client-to-Gateway IPsec VPN Tunnels | 50,000 |
| SSL-VPN Throughput | 7 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 8 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 5,500 |
| Application Control Throughput (HTTP 64K) | 15 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 64 |
| Maximum Number of FortiAPs (Total / Tunnel) | 1024 / 512 |
| Maximum Number of FortiTokens | 5,000 |
| Maximum Number of Registered FortiClients | 2,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 10 Gbps |
| NGFW Throughput | 9.5 Gbps |
| Threat Protection Throughput | 7 Gbps |
| Dimensions and Power | |
| Height x Width x Length | 1.75 x 17.0 x 15.0 inches 44.45 x 432 x 380 mm |
| Form Factor | 1 RU |
| AC Power Supply | 100–240V AC, 60–50 Hz |
| Power Consumption (Average / Maximum) | 129 W / 244 W |
| Current (Maximum) | 6A @ 100V |
| Heat Dissipation | 832 BTU/h |
| Redundant Power Supplies | optional |
| Operating Environment and Certifications | |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 59 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
