| Categories | High Pressure PU Foaming Machine |
|---|---|
| Brand Name: | Yongjia |
| Model Number: | High Pressure Foam Machine |
| Certification: | CE |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1 Set/Sets |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability: | 500 Set/Sets per Month liquid filling machine |
| Delivery Time: | 45-60 days |
| Packaging Details: | sea worthy wooden box for High Pressure PUR PU Polyurethane Pouring Liquid Filling Foam Injection Machine |

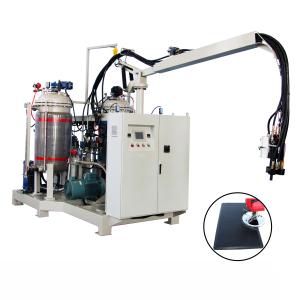

| Name: | high pressure pu foam machine |
| Foaming principle: | High pressure air type |
| Mixing ratio range: | 1:5～5:1（adjustable） |
| Injection Output (mixing ratio 1:1): | 110-540g/s |
| foam type: | soft foam |
| Applications: | Anti Fatigue Mats |
| Company Info. |
| Yongjia Polyurethane Co., Ltd. |
| View Contact Details |
| Product List |
| No. | Item | Technical Parameter |
| 1 | Foam application | PU(Polyurethane) |
| 2 | Raw material viscosity(22℃) | POL～2500mPas ISO ～1000mPas |
| 3 | Injection pressure | 10～20Mpa (adjustable) |
| 4 | Injection Output (mixing ratio 1:1) | 70-350g/s |
| 5 | Mixing ratio range | 1:3～3:1(adjustable) |
| 6 | njection time | 0.5～99.99S(correct to 0.01S) |
| 7 | Material temperature control error | ±2℃ |
| 8 | Repeated injection accuracy | ±1% |
| 9 | Mixing head | Homemade, four oil hoses, double oil cylinders |
| 10 | Hydraulic system | Output 10L/min System pressure 10～20MPa |
| 11 | Tank volume | 280L |
| 12 | POL metering pump | Guoyou A2VK-12 |
| 13 | ISO metering pump | Guoyou A2VK-06 |
| 1 | Compressed air required | Dry, oil free P: 0.7Mpa Q: 600NL/min Prepare by Customer |
| 15 | Temperature control system | 5HP |
| 16 | Input power | Three-phase five-wire,380V 50HZ |
Details of Floor Mat Molding Machine:
High and low pressure switching unit: High/low pressure cyclical switch unit control the high/low cyclical switch of the two components, to enable components to form low energy circle and extend machine’s service life. The equipment has 4 sets of high and low pressure switching unit for sharing.
Self-cleaning filter: Scraper type self-cleaning filter which consists of stator, rotor, scraper, keeps materials unblocked and filtered out in the loop. The hand wheel should be rotated on a regular basis, and dirt discharged through ball valve at the bottom.
Mixing head: Adopting self-cleaning L type mixing head, adjustable needle type nozzle, V-shape spraying orifice, high pressure collision mixing principle, which ensure are fully mixing of components.
|
