Categories | Stainless Steel Wire Mesh Filter |
---|---|
Brand Name: | YuanHai |
Model Number: | YH-32 |
Certification: | ISO 9001:2015 |
Place of Origin: | Hebei,China |
MOQ: | 100 Square Meters |
Price: | $1.8-5.9/㎡ |
Payment Terms: | T/T |
Supply Ability: | 10000 Square Meter/Square Meters per Month |
Delivery Time: | 3-10days |
Packaging Details: | packing in roll and plastic inside and wooden case outside or as your requirement |
Material: | SS 302,304,316,304L,316L,321 |
Weaving: | Plain,twill or dutch weave |
Usage: | Petro, chemical, air,liquid filter |
Roll Width: | 0.914m/1m/1.22m/1.5m or customized |
Roll Length: | 30 meters |
Wire diameter: | 0.02-2mm stainless steel wire mesh |
Feature: | Low elongation/high tension |
Port: | Xingang Port |
Package: | pvc bag,waterproof paper,pallets |
Company Info. |
Anping yuanhai wire mesh products Co., Ltd |
Verified Supplier |
View Contact Details |
Product List |
SS 201 Stainless Steel Wedge Wire Screen Filter Mesh For Basket Strainer
Product Description of Stainless Steel Wire Mesh
Features of Stainless Steel Wire Mesh
Weaving Style of Stainless Steel Wire Mesh
plain weave, twill weave , dutch weave and twilled dutch weave reverse dutch weave, Five heddle weave, bamboo weave etc.
Product Specification of Stainless Steel Wire Mesh
Type | Mesh/Inch | Wire diameter (inch) | OPen Area | Weight (LB) /100 Square Foot |
Plain,Twill Wire Mesh | 1 × 1-635 × 635 | 0.0008"-0.08" | 25 to 84.6 | 2.53 to 41.1 |
Type | Mesh/Inch | Wire diameter (inch) | Absolute Filtration Finess μm | Nominal Filtration Finess μm |
Plain Dutch Weave Wire Mesh | 8 × 85 - 80 × 400 | 0.014'' × 0.0126''- 0.0049'' × 0.0028'' | 318-340 to 43-48 | 250-255 to 35-40 |
Twill Dutch Weave Wire Mesh | 20 × 250 - 500 × 3200 | 0.0098'' × 0.0079'' - 0.0015'' × 0.0010'' | 110-120 to 8-9 | 98-105 to 2- |
Application of Stainless Steel Wire Mesh
Plain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets.

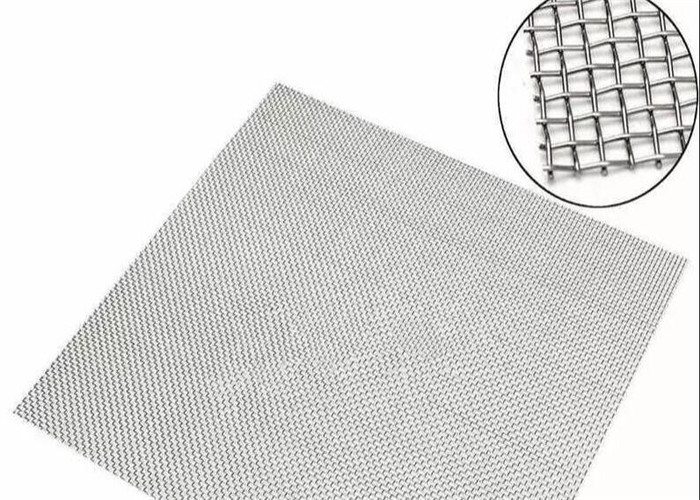

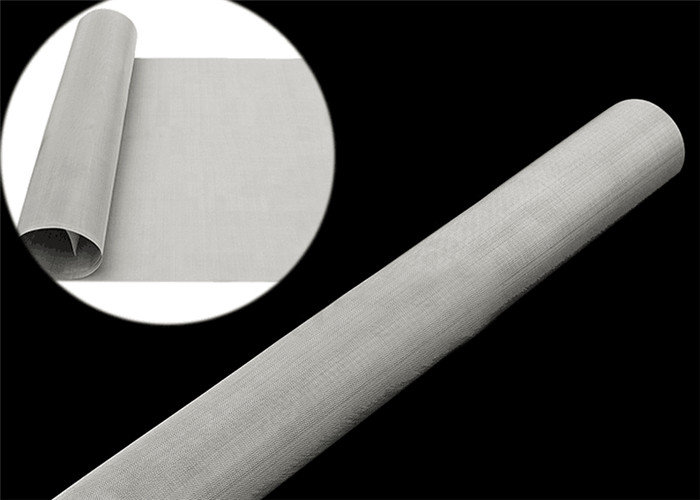

Detail Images of Stainless Steel Wire Mesh
Package of Stainless Steel Wire Mesh
1.Inside use carton pipe for support+wire mesh layer+water proof
paper.
2.Outside use plastic wooden bags +wooden case/carton pipes/wooden
pallets.
3.Also we can as per your requirements.
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export
enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C
or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box
outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity
ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
