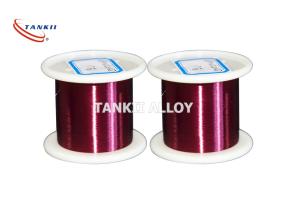

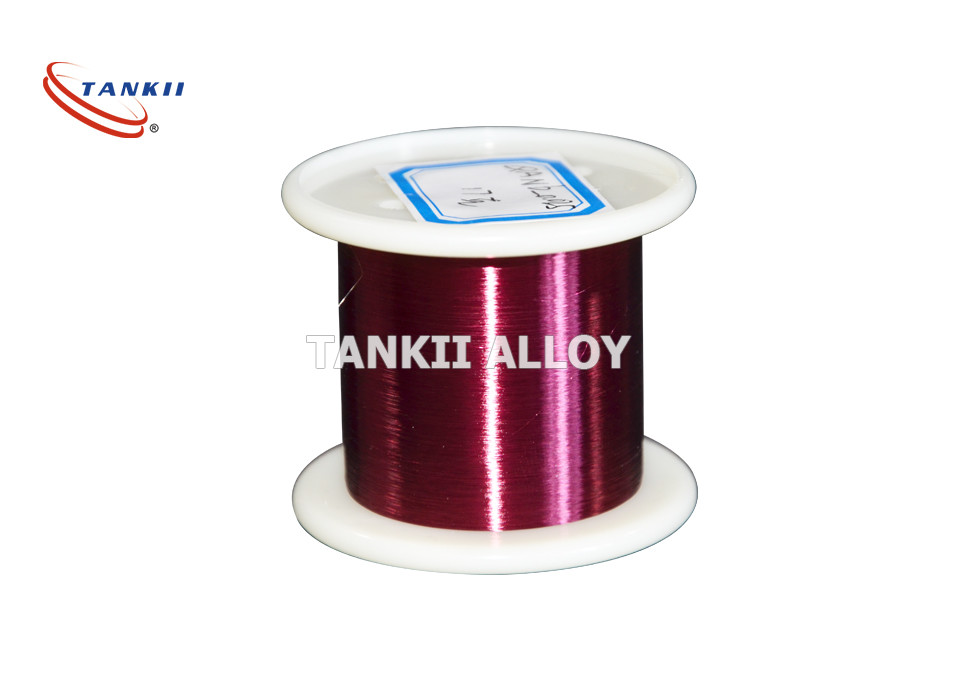

Ni200 99.6% Pure Nickel Wire 0.025mm With Red Color Enameled Coating
Product Description:
The enameled wire is a main type of winding wire, which consists of two parts: conductor and insulating layer. After annealing and softening, the bare wire is painted and baked for many times. However, it is not easy to produce products that meet the requirements of standards and customers. It is affected by the quality of raw materials, process parameters, production equipment, environment and other factors. Therefore, the quality characteristics of various paint coating lines are different, but they all have four properties: mechanical, chemical, electrical and thermal.
Nickel has high chemical stability and good corrosion resistance in many media.
Its standard electrode position is -0.25V, which is positive than iron and negative than copper.
Nickel exhibits good corrosion resistance in the absence of
dissolved oxygen in dilute non-oxidized properties (e.g., HCU,
H2SO4), especially in neutral and alkaline solutions.This is
because nickel has the ability to passivate, forming a dense
protective film on the surface, which prevents nickel from further
oxidation.
Main application fields:
Chemical and chemical engineering, generator anti-wet corrosion
components (water inlet heater and steam pipe), pollution control
equipment (waste gas sulfur removal equipment), etc.
Ni200 99.6% Pure Nickel Wire 0.025mm With Red Color Enameled Coating
Enameled wire conductor:
1. Copper-nickel alloy wire: Constantan Wire,CuNi1~CuNi44
2. Ni-Cr Alloy wire: NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma.
3. Fe-Cr-Al Alloy wire: Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5,
Cr21Al6Nb,Cr27Al7Mo2,
4. Cu-Ni-Mn Alloy wire: CuMn12Ni2,CuMn12Ni4,Manganin
5. Silver: Purity 99.9%
Type of insulation
| Insulation-enamelled Name | Thermal LevelºC (working time 2000h) | Code Name | GB Code | ANSI. TYPE |
| Polyurethane enamelled wire | 130 | UEW | QA | MW75C |
| Polyester enamelled wire | 155 | PEW | QZ | MW5C |
| Polyester-imide enamelled wire | 180 | EIW | QZY | MW30C |
| Polyester-imide and polyamide-imide double coated enameled wire | 200 | EIWH (DFWF) | QZY/XY | MW35C |
| Polyamide-imide enamelled wire | 220 | AIW | QXY | MW81C |
|
Magnet Enameled Copper Wire 40AWG Nicr 8020 Wire
Varnished Enamel Insulated Wire Pure Silver 9999 / Sterling Silver Good Conductivity
0.025mm Pure Nickel Enamelled Wire Polyester Insulation
Nicr 8020 Resistance Element Enamelled Wire 24AWG 200 Degree
Composite Insulation Coating Enameled Wire For Chemical Engineering
Bare N6 0.025mm Enamel Insulated Wire Non Oxidized For Winding Resistors
Red Color 0.1mm Enameled Winding Wire Polyester Insulation
Enamelled Nickel Resistance Alloy Wire Enamel Coated Wire Suit In Slide Rhostat Black
0.5mm N6 Nickel Enamelled Wire Corrosion Resistance For Automobile Parts
Standard Resistors CuNi23 Enamelled Wire 0.1mm 220℃ Polyimide
