Smart 4P 480V 400A ATS Automatic Transfer Switch

Categories ATS Automatic Transfer Switch
Brand Name: Fenigal/OEM
Model Number: YAT 400/4P
Certification: CE,CCC
Place of Origin: China
MOQ: 1 unit
Price: Negotiate
Payment Terms: T/T, Western Union
Supply Ability: 10,000pcs/month
Delivery Time: 5-8 working days bulk order negotiate
Packaging Details: Standard export carton
voltage: 1000A
Max. voltage: 480V
Pole: 3P,4P
Product name: Dual Power Automatic Transfer Switch ATS
Current: 400A
Standard: IEC60947-6-1
Control power supply voltage: 400V, 380V, 220V, 480V
Controller: Smartgen
Rated current: 32A 63A 125A 200A 250A 350A 400A 500A 630A
Operation type: Manual/Auto
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

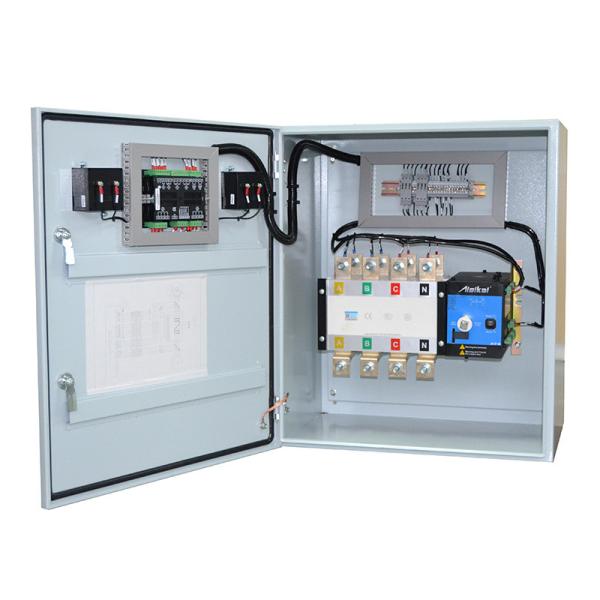

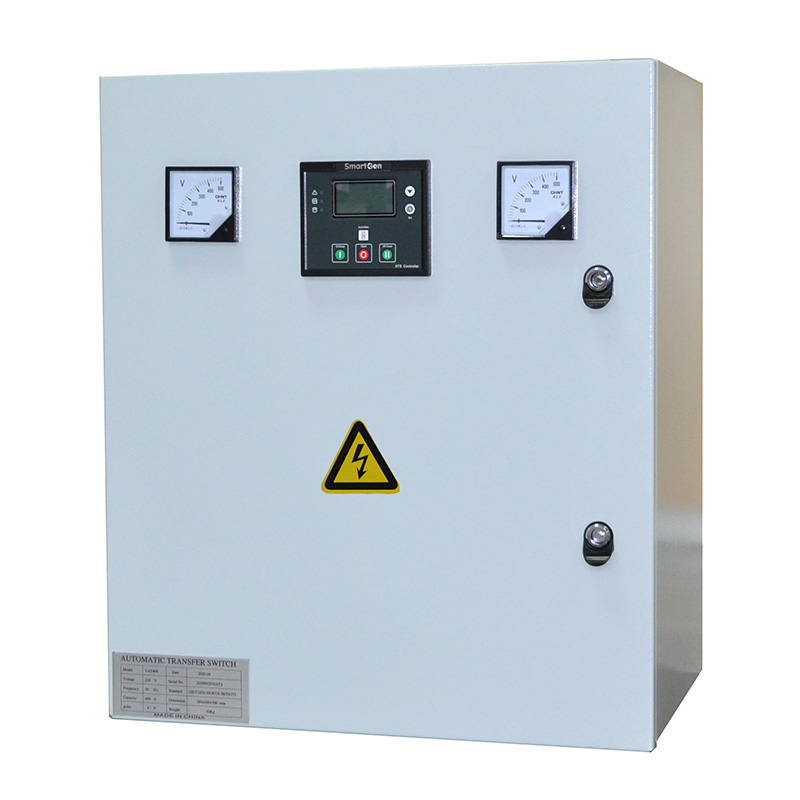

Smart 4P 480V 400A ATS Automatic Transfer Switch

Smart ATS modular changeover switch 4P 480V automatic transfer switch 400A

General

The YAT 400/4P dual-power automatic transfer switch (ATS) is a newly developed miniature household power transfer switch, is mainly used to test whether the main power or reserve power is normal.


When the normal power supply is abnormal, the reserve power supply will start work immediately to ensure continuity, reliability and safety of the power supply. It is specially designed for household rail installation for PZ30 distribution box.


The ATS is suitable for emergency power supply systems of AC50 or 60Hz and rated voltage 400V. It is featured with firm structure, reliable transfer, easy installation and maintenance, and long life, is widely used in places where frequent power outage is not allowed. Both electric and operation and manual operation are available. The ATS is composed of TES and controller.


Rated heating current(A)100160250400630100012501600200025003200
Rated insulation voltage750V1000V
Rated impulse withstand voltage8KV12KV
Rated working currentAC-31A100160250400630100012501600200025003200
AC-35A100160250400630100012501600200025003200
AC-33A100160250400630100012501600200025003200
Rated short-time withstand current7KA9KA13KA50KA55KA
Rated limit short-circuit current100KA70KA100KA120KA80KA
Control power supply voltageDC 24V 48V 110V , AC 220V
Conversion time(s)0.511.11.21.252.45
