Four Shafts Adhesive Tape Slitting Making Machine For Bopp Tape/PET Tape

Categories Adhesive Tape Making Machine
Brand Name: United Win
Model Number: UW-F0501
Place of Origin: CHINA
MOQ: 1 set
Price: USD
Supply Ability: 3 sets/ month
Delivery Time: 3 months
Name: Four Shafts Tape Slitting Machine
Material: BOPP Tape Jumbo Rolls
Speed: Max.200m/min
Driven type: Eletric
Power: 3KW
Tape output: 30m/minute
Voltage: 220V,380V
Control: PLC control with touch screen
Warranty: 1 Year
utomatic Grade: Automatic
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

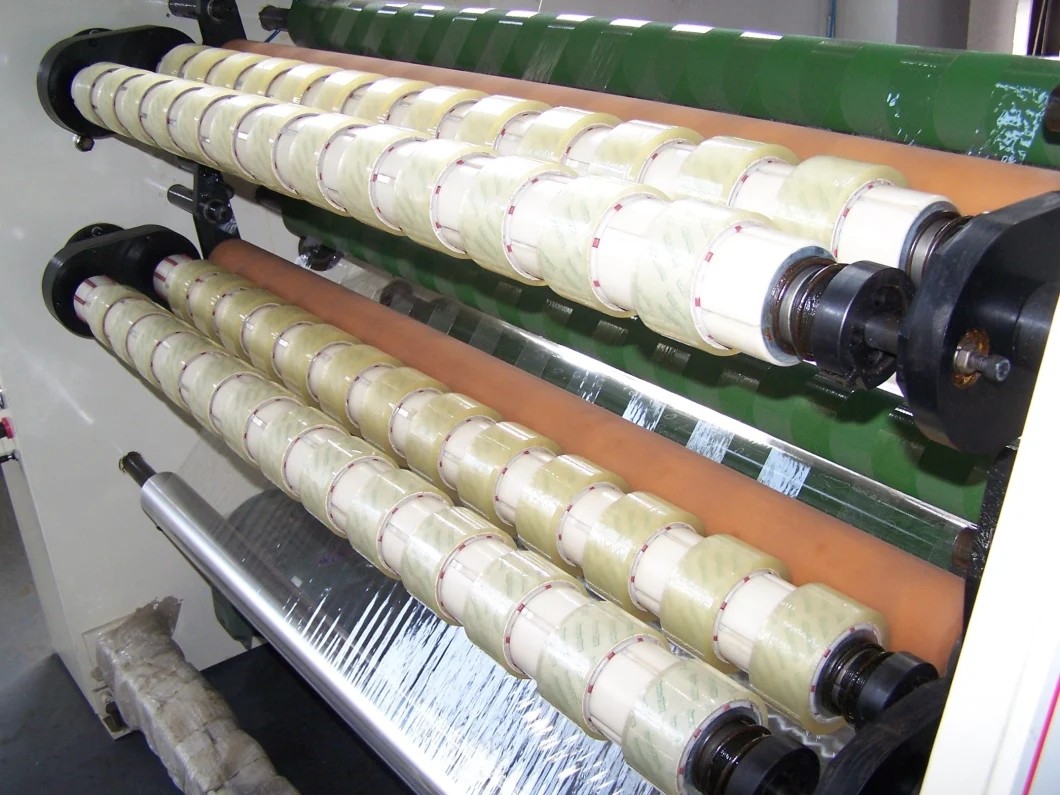

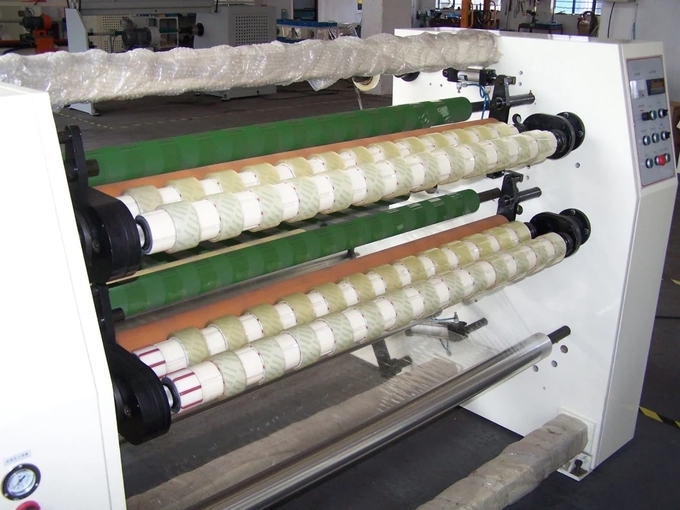

Four Shafts Adhesive Tape Slitting Making Machine For Bopp Tape/PET Tape

Four Shafts Adhesive Tape Slitting Making Machine For Bopp Tape/PET Tape


Description:

1. To control each part through operation panel;Much bigger diameter of mechanical driving shaft will make machine run more

2. stable; Human-computer interface apply PLC control,input and display by LED touch screen,easily and simply to operate;

3. Automatic twisting type collecting wasted edge device will reduct stop machine times;

4. Unwinding part has automatic loading jumbo roll device;

5. Unwinding part has magnetic tension control decide;

6. Rewinding shaft has magnetic tension control decide


Feartures:


1. Razor blade slitting, using 4 shafts auto shift rewinding and continuous operating to improve effciency.

2. Speed stepless adjustable through frequency coverting, equipped with 3 sections length counter, can automatically slow down and stop from high speed running.

3. Pneumatic control for rewinding tension, rewinding tension controlled by independent sliding device of rewinding shafts that can adjust rewinding tension easily.

4. Auto labeling device is optional.


Specifications:

ModelUW-F0501UW-F1101UW-F1310UW-F1610
Effective width(mm)1300110013001600
Max.Unwinding diameter (mm)800800800800
Unwinding diameter(mm)76(3")76(3")76(3")76(3")
Mechanical speed(m/mim)0-2250-2250-2250-225
Min Slitting width(mm)10102424
Paper core ID(mm)25-7625-767676
Max Rewinding diamter(mm)150150150150

Application:

Suitable for slitting BOPP tape. PET tape, kraft paper tape etc.


FAQ:


1. Are you a factory?
Yes, our company was established in 1998. It is the only comprehensive manufacturing enterprise in China produce both tape and
tape machine.


2. How could I get the quotation?
Tape: Please let me know the specification(thickness,width,length),quantity,application and other requirements according to your
needs so that we can provide an accurate quotation.

Machine: please provide the type of machine required and other special requirements.


3. Can I get some tape samples for testing before placing order?
Yes,we can provide you some free samples for your reference.


4. What is the MOQ for your tape?
5000 rolls is OK.


5. How long is the delivery time for your tape?
The first order is 15 days after deposit,then other orders are about 7-10 days after deposit.


6. How long is your warranty?
The warranty is one year.


7. How long is the delivery time for your machine?
After deposit is about 30 days.


8. What is the payment?
30% TT as deposit before production,70% TT after copy of B/L.
