Home > Packaging Machine >

Arc Sheet Aluminium Step GL Roof Tile Forming Machine

Categories Roof Tile Roll Forming Machine
Brand Name: CANGZHOU WILLING
Model Number: Step Tiles
Certification: ISO CE
Place of Origin: CHINA MAINLAND
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Delivery Time: 30 Working Days
Packaging Details: 40' FLC
Product Name: Arc Sheet Aluminium Step Tiles Roof Roll Forming Machine
After-sales service provided: Engineers available to service machinery overseas,Video technical support,Online support,Field maintenance and repair service,Field installation
Raw material: PL,GL,PPGI,PPGL
Voltage: 380/50Hz/3PH
Control system: PLC
Speed: 8-15m/min
thickness: 0.3mm-0.8mm
Power: 3Kw
Raw material width: 1000 mm
Hydraulic station power: 3KW
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

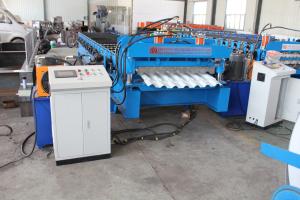

Arc Sheet Aluminium Step GL Roof Tile Forming Machine

Arc Sheet Aluminium Step Tiles Roof Roll Forming Machine


Arc Sheet Aluminium Step Tiles Roof Roll Forming Machine adopts a fully automatic hydraulic creasing and hydraulic shearing system, which has fast production speed and stable operation, which can effectively save customers' time and labor costs.


Specification
No.ItemDescription
1CoilGalvalume, Galvanized, PPGI, Aluminum
2Raw Material Thickness0.3mm-0.8mm
3Working Speed8-15/min
4Roller Station16 Raws
5

Dimension (L*W*H)

5000 mm*1200 mm*1200 mm
6Machine Weight4000 KG
7

Electrical Control System

PLC

8

Drive Motor Power

3 KW
9

Hydraulic Station Power

3 KW
10

Power Supply

380V/60HZ/3 PH

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

70 mm 45#steel forged

14Material of Roller

45# Steel Finish Machining, Plated Hard


Application


Due to its good appearance, anti-corrosion and acid resistance, such tiles are mostly used in daily buildings such as warehouses, roofs, building materials stores, production workshops, farms, construction sites, walls and large-span steel structure houses.


Advantage


This version is generally used in many types of buildings, roofs, walls and interior and exterior wall decorations of large-span steel structure houses, etc. It has light texture, rich color, convenient and fast construction, good seismic effect, and long service life. , Maintenance-free and other advantages, has now been widely promoted.
