Brand Name: | OEM |
Model Number: | SC UPC |
Certification: | ISO9001 |
Place of Origin: | China |
MOQ: | 10 Pieces |
Price: | Negotiable |
Payment Terms: | T/T |
Supply Ability: | 1000 pcs / week |
Delivery Time: | 3 to 7 Business Days |
Packaging Details: | Each piece of patch cord will be packaged in a 20*20 square plastic bag. |
Product: | SC Patch Cord |
End Face: | UPC |
Fiber Type: | OM4 |
Cable Color: | Violet / Other |
Fiber Number: | 2 |
Fiber Diameter: | 50 / 125 um |
Cable Sheath: | PVC or LSZH |
Length: | 1 meter / other |
2.0 3.0 SC Patch Cord OM4 Fiber MultiMode Duplex LSZH PVC Sheath
This sc patch cord product is a multi mode duplex type patch cable having a SC duplex connector at each side. The duplex click is buckled to keep two connectors together.
Duplex cable outer diameter could be 2.0 mm or 3.0 mm. Fiber type is OM4 fiber.
SC Patch Cord (OM4 Duplex) Feature
◆ Easy Installation
◆ Violet Cable
◆ Two Connectors at One Side
◆ Excellent Mechanical Endurance
◆ Good in Repeatability
◆ 3D Interference Test More than 80% Passed
SC Patch Cord (OM4) Parameter
Parameter | Unit | Data |
Operating Wavelength | nm | 850 1300 |
Insertion Loss | dB | ≤ 0.3 |
Return Loss | dB | ≥ 50 |
3D Interference Test Passing Rate | % | 80 |
Repeatability | dB | ≤ 0.1 |
Plug and Pull Durability | Times | > 1000 |
Operating Temperature | °C | -10 ~ +75 |
Storage Temperature | °C | -40~+85 |

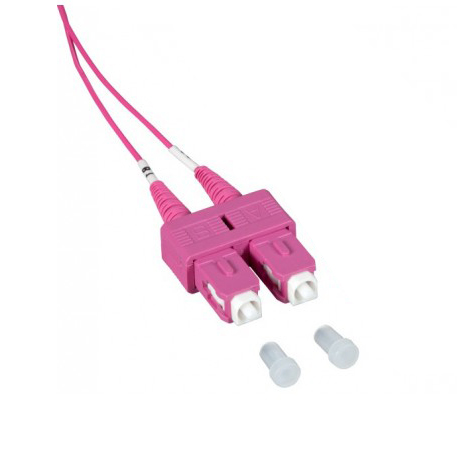

OM4 SC Patch Cord Image Detail
![]() |
