Manual 28V T3 30Amp Auto Blade Fuses ATC E39 Thermal Circuit Protector

Automotive ATC E39 Thermal Automatic Manual Reset Blade Circuit Breaker 28V 5-30A

I Blade Circuit Breaker Description

Overcurrent circuit breakers with bimetal structures, when the automotive circuits overload, rapidly power protection, users can be reset manually switched on again, ATC type push-terminal design, can replace disposable fuse widely used in car modification and maintenance market.

E37 E38 E39 Circuit breaker typically used as auxiliary or accessory circuits in truck,bus,RVs and marine systems, battery chargers, DC audio systems, engine compartment and bilge area applications.

The company's hydraulic (A, J and S-Type) and thermal circuit protector (breaker) (E, L, W) are designed for home appliances, power tools, telecommunication systems, healthcare equipment, industrial testing equipment, security systems and many protection systems.

E37 Automotic Reset Type

E38 Modified Reset Type

E39 Manual Reset Type

• E39 Series/ ATC Circuit Breakers
• Rating: 5-30A, 28Vdc
• Interrupt Rating: 2000A @ 28Vdc
• Operating Temp: -40°F(-40°C) to 185°F(85°C)
• Storage Temp: -40°F(-40°C) to 260°F(125°C)
• Marking: Cover is color coded to amperage ratings
• Terminations: 5.2mm wide blades compatible with ATC type fuse blocks
• Compliances: SAEJ553; SAEJ1171 (ignition protected), consult factory for time characteristic curves

II Blade Circuit Breaker AMP VS COLOR

05 - 5 amps (LT.Brown(tan)
06 - 6 amps (Moss Green)
75 - 7.5 amps (Brown)
10 - 10 amps (Red)
15 - 15 amps (Blue)
20 - 20 amps (Yellow)
25 - 25 amps (White)
30 - 30 amps (Green)

III Blade Circuit Breaker Specification

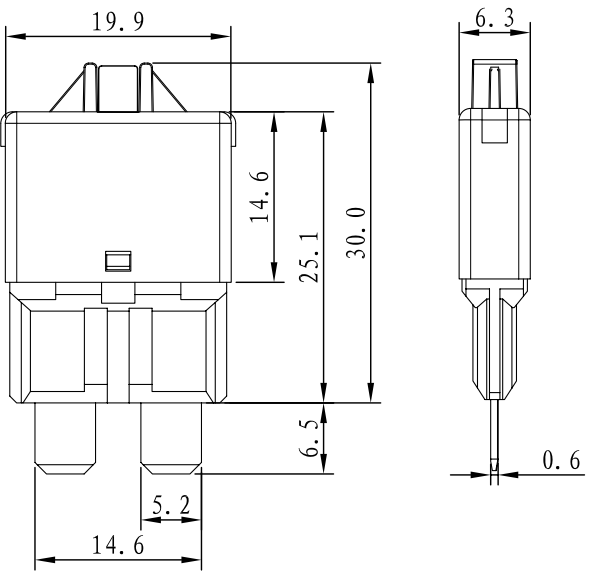

IV Blade Circuit Breaker Material Lists And Size (mm)

OCP Overcurrent Protection

Fuse

Fuse Link
Thermistor

Film Resistor
Wirewound Resistor
Inductor
