Stainless Sink Rolling Resistance Seam Welding Machine/Sink Welder

Categories Resistance Welding Machine
Brand Name: OEM/ODM
Model Number: Customized
Certification: CE,ROHS ,ISO9001,ISO14001,
Place of Origin: CHINA
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 5sets per month
Delivery Time: 20-25days
Packaging Details: wooden packing
Name: Stainless Sink Rolling Resistance Seam Welding Machine/Sink Welder
Type: Welding Machine
Condition: New
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Welding Diameter: 1200
Raw material: carbon steel
Weight (KG): more than 20 MT
Warranty: 1 YEAR
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

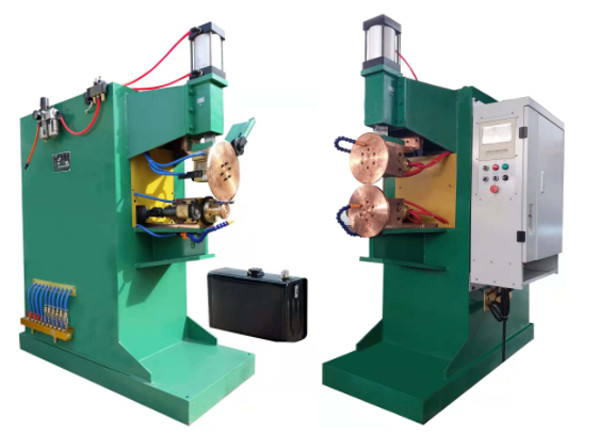

Stainless Sink Rolling Resistance Seam Welding Machine/Sink Welder

Stainless Sink Rolling Resistance Seam Welding Machine/Sink Welder
Specification
Item nameStainless sink rolling resistance seam welding machine/sink welder
Applicable IndustriesBuilding Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
After Warranty ServiceVideo technical support, Online support, Spare parts
Showroom LocationNone
Video outgoing-inspectionProvided
Machinery Test ReportProvided
Marketing TypeHot Product 2021
Warranty of core components1 Year
Core ComponentsPLC, Engine, Pressure vessel
ConditionNew
Place of OriginChina
Jiangsu
Rated Capacity73500uF
Rated Duty Cycle50%
Max. Welding Thickness5mm
Dimensions480*900*1600mm
Usagesheet welding

Feature


The power supply unit's duty are balanced. Three phase power make MD frequency inverter more adaptable in winding and pressure
of wire.
More preaser, faster current control, can analyse parameters more and faster compare with power frequency system.
Faster to set up current, the speed is 20folds quicker than traditional technic
Process more reliable: the majority of the application of solder DC welding metal effect will be even better.
Reduce operating costs, including energy savings each and every point of welding as well as shortening the welding cycle.
Save energy :especially suitable for welding thick workpieces and high-conductivity metal .such as aluminum and galvanized
steel sheet.etc.

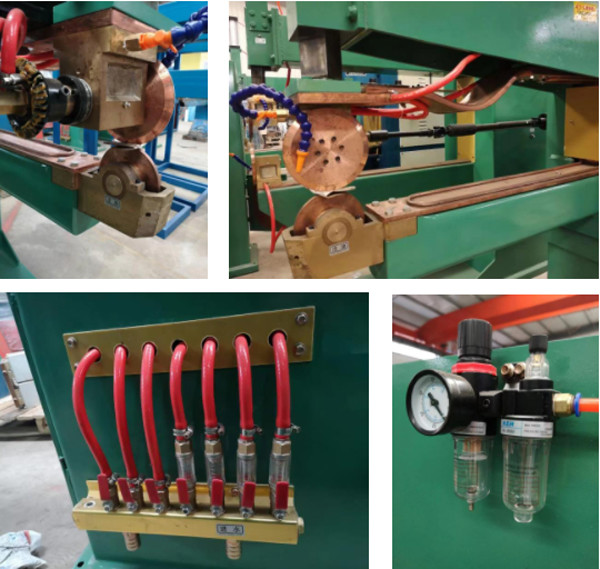

Detailed image

Application


With the development of industries such as aerospace, electronics, automotive and household appliances, resistance welding is becoming more and more widely valued. [4] At the same time, higher demands are being placed on the quality of resistance welding. Happily, the development of microelectronics technology in China and the development of high power SCRs and rectifiers has provided the conditions for the improvement of resistance welding technology. China has produced secondary rectifier welding machines with excellent performance. Control boxes made up of integrated circuits and microcomputers have been used for the matching of new welders and the renovation of old ones. Constant current, dynamic resistance, thermal expansion and other advanced closed-loop monitoring technology has begun to be applied in production. All this will help to improve the quality of resistance welding and expand its application areas.
