| Categories | Security Steel Fence |
|---|---|
| Brand Name: | Giant Fence |
| Model Number: | GF080 |
| Certification: | ISO9001:2001 |
| Place of Origin: | China |
| MOQ: | 50sets |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000meters per month |
| Delivery Time: | 15-18days |
| Packaging Details: | 1. panels packing with pallet post bulk in the container 2. panel with post all bulk in the container 3. panle with post all packing with pallet |
| Name: | Palisade Fence |
| material: | Q235 |
| Width: | 2750mm per bay or as you requirement |
| Height: | 1200mm/1500mm/1800mm/2100mm/2400mm/2700mm/3000mm/3600mm |
| pale type: | D type, W type, or angle steel type |
| head type: | Pointed, Triple pointed, Rouned, Rouned and notched, Flat , star |
| color: | Colorful |
| Pale thickness: | 1.5mm/2.0mm/2.3mm/2.5mm/3.0mm |
| Angle rail: | 50x50 RSA or 40x40 RSA, Rail thickness: 4mm/5mm/6mm |
| RSJ post: | 100*55*3.5mm |
| Fish plate: | 150*30*7mm |
| Surface treatment: | Hot dipped galvanized (500g/m2, 70um) Galvanized and powder coated. |
| Company Info. |
| Hebei Giant Metal Technology co.,ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

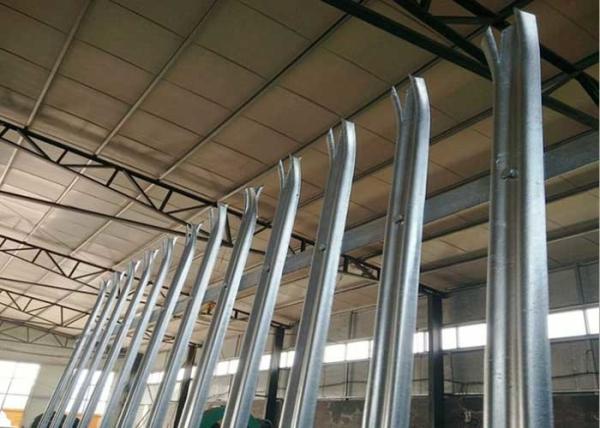

2750mm Width Q235 Galvanized Steel Palisade Fencing Welded Wire Garden Fence
product name | Steel Palisade fence/Steel Palisade Fencing/Welded Wire Garden Fence |
| material | Q235 |
| Height | 1200mm/1500mm/1800mm/2100mm/2400mm/2700mm/3000mm/3600mm |
| Width | 2750mm per bay or as you requirement |
| pale type | D type, W type, or angle steel type |
| head type | Pointed, Triple pointed, Rouned, Rouned and notched, Flat , star |
| Pale thickness | 1.5mm/2.0mm/2.3mm/2.5mm/3.0mm |
| Angle rail | 50x50 RSA or 40x40 RSA, Rail thickness: 4mm/5mm/6mm |
| RSJ post | 100*55*3.5mm |
| Fish plate | 150*30*7mm |
| Bolts&Nuts | M8×25mm-34pcs and M12×30mm-4pcs |
| Surface treatment | Hot dipped galvanized (500g/m2, 70um) Galvanized and powder coated. |
| Lead time | 10 days for 20 feet container |
Head types of W & D Section Pales
"W"
| Width (mm) | Thickness(mm) | Surface treatment | Head | Height(mm) |
| 65,75 | 2.0 2.5 3.0 | Galvanized and electrostatic Polyester powder coated ,hot dipped galvanized | Single point Triple point | 1200 |
| 1500 | ||||
| 1800 | ||||
| 2000 | ||||
| 2100 | ||||
| 2400 | ||||
| 2700 | ||||
| 3000 |
"D"
| Width (mm) | Thickness(mm) | Surface treatment | Head | Height(mm) |
| 70 | 2.0 2.5 3.0 | Galvanized and electrostatic Polyester powder coated ,hot dipped galvanized | Single point Triple point | 1200 |
| 1500 | ||||
| 1800 | ||||
| 2000 | ||||
| 2100 | ||||
| 2400 | ||||
| 2700 | ||||
| 3000 |
Posts
100x55 IPE
Available with welded or slotted fishplates, complete with loose fishplates that can be concreted-in, base-plated for bolting down, or cranked.
Posts can be vertically extended to take barbed or razor wire.
Panels
Panels can be raked to allow for most site conditions.
Fixings
All fixings are anti-vandal. For added security, pales can be welded in place.
Finishes
Hot dip galvanised to BS EN ISO 1461 as standard. Polyester powder
coating option.
UK BS1722 Standard all 2 rails palisade fence bays of 2.75m
