Place of Origin: | China |
Brand Name: | Zhongyuan |
Certification: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
Model Number: | Standard and Customized |
MOQ: | 1 |
Price: | As per quotation |
Packaging Details: | Pallet or Customized |
Delivery Time: | As per offer |
Payment Terms: | TT, L/C, Etc. |
Supply Ability: | Satisfy clients needs |
Chain Diameter: | 12.5mm to 70mm |
Length per shot: | 25.0~27.5m |
Type: | Studless Link, Open Link |
Construction: | Flash butt welded Roll Steel Bar |
Grade: | U1, U2; U3 |
Test: | Material property test, heat treatment, Proof load test and Break load test |
Surface treatment: | Grit blasting, hot dip galvanized, painted black or as required |
Classification Certificates: | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc |
Company Info. |
Zhongyuan Ship Machinery Manufacture (Group) Co., Ltd |
Verified Supplier |
View Contact Details |
Product List |

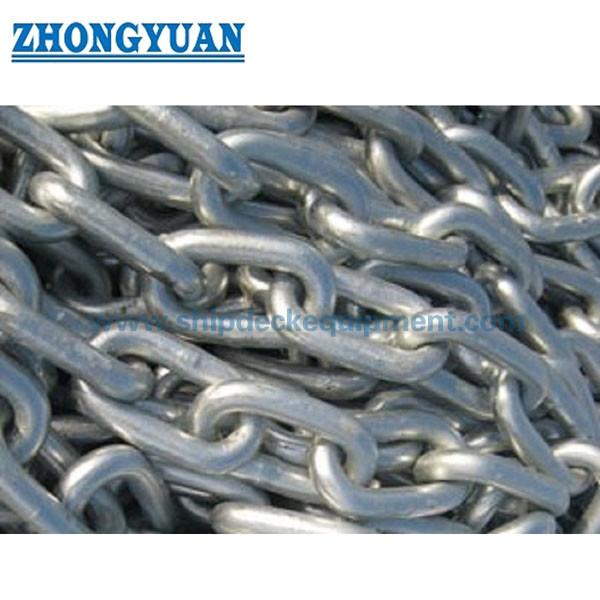

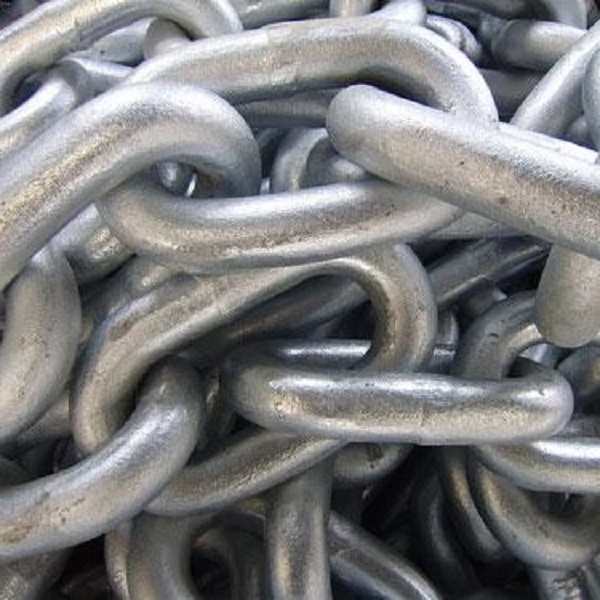

Galvanized Open Link Anchor Chain
Description:
Studless link also called open link anchor chain are often used for offshore moorings. Compared with stud link anchor chains, the studless link anchor chains have the features of less weight, being suitable for larger shackles without end links and the avoidance of stud loosing problems.
We trade all kinds of marine anchor chains and offshore mooring chains with IACS certificate. We are gold distributor for chain factories. Marine anchor chain has Grade 2 and Grade 3; Offshore mooring chain has RQ3/NVR3, RQ3S/NVR3S, RQ4/NVR4. We can provide 12.5mm to 162mm marine anchor chains and offshore mooring chains. All marine anchor chain can be test by UT & MT detection and proof loading test.
Main Technical Specifications:
Main Technical Parameters:
Nominal Size | U1 Studless Anchor Chain | U1 Studless Anchor Chain | U1 Studless Anchor Chain | Weight | |||||
Diameter (D) | L | B | Proof Load | Break Load | Proof Load | Break Load | Proof Load | Break Load | (KG/27.5M) |
MM | MM | MM | KN | KN | KN | KN | KN | KN | KG |
12.5 | 75 | 45 | 28.75 | 57.81 | 41.2 | 82.6 | 56.4 | 112.8 | 85.41 |
14 | 84 | 50.4 | 34.78 | 69.93 | 51 | 101.9 | 70.76 | 141.51 | 106.55 |
16 | 96 | 57.6 | 47.1 | 94.72 | 66.2 | 132.3 | 92.42 | 184.83 | 139.43 |
17.5 | 105 | 63 | 56.35 | 113.31 | 78.89 | 157.78 | 110.55 | 221.1 | 178.35 |
19 | 114 | 68.4 | 66.42 | 133.57 | 93.6 | 187.2 | 130.32 | 260.64 | 217.68 |
20.5 | 123 | 73.8 | 77.33 | 155.49 | 108.64 | 217.27 | 151.7 | 303.42 | 229.14 |
22 | 132 | 79.2 | 89.06 | 179.08 | 125.4 | 250.9 | 174.4 | 349.4 | 264.49 |
24 | 144 | 86.4 | 105.98 | 213.25 | 149.9 | 298.9 | 207.9 | 415.8 | 341.82 |
26 | 156 | 93.6 | 124.38 | 250.12 | 175.4 | 350.8 | 244 | 488 | 369.94 |
28 | 168 | 100.8 | 144.26 | 290.08 | 203.8 | 406.7 | 283 | 566 | 427.04 |
30 | 180 | 108 | 165.6 | 333 | 234.2 | 467.5 | 324.9 | 649.8 | 490.98 |
32 | 192 | 115.2 | 188.42 | 378.88 | 265.6 | 531.2 | 369.6 | 739.3 | 559.65 |
34 | 204 | 122.4 | 212.7 | 427.72 | 299.9 | 599.8 | 417.3 | 834.6 | 671.52 |
36 | 216 | 129.6 | 238.46 | 479.52 | 336.1 | 672.3 | 467.8 | 935.7 | 707.85 |
38 | 228 | 136.8 | 265.7 | 534.28 | 374.4 | 748.7 | 521.3 | 1042.5 | 788.98 |
40 | 240 | 144 | 294.4 | 592 | 414.5 | 829.1 | 577.6 | 1155.2 | 869.36 |
42 | 252 | 151.2 | 324.58 | 652.68 | 457.7 | 915.3 | 636.8 | 1273.6 | 959.3 |
44 | 264 | 158.4 | 356.22 | 716.32 | 502.7 | 999.6 | 698.9 | 1398 | 1111.25 |
46 | 276 | 165.6 | 389.34 | 782.92 | 548.8 | 1097.6 | 763.9 | 1527.8 | 1152.07 |
48 | 288 | 172.8 | 423.94 | 852.48 | 597.8 | 1195.6 | 831.7 | 1663.5 | 1256.26 |
50 | 300 | 180 | 460 | 926.09 | 648.8 | 1239.6 | 902.5 | 1805 | 1360.41 |
52 | 312 | 187.2 | 497.54 | 1000.48 | 697.63 | 1395.26 | 976.14 | 1952.28 | 1485.61 |
54 | 324 | 194.4 | 536.54 | 1078.92 | 752.33 | 1504.66 | 1052.68 | 2105.36 | 1648.08 |
56 | 336 | 201.6 | 577.02 | 1160.32 | 809.09 | 1618.18 | 1132.1 | 2264.2 | 1715.97 |
58 | 348 | 208.8 | 618.98 | 1244.68 | 867.91 | 1735.82 | 1214.4 | 2428.8 | 1844.5 |
60 | 360 | 216 | 662.4 | 1332 | 928.8 | 1857.6 | 1299.6 | 2599.2 | 1973.29 |
62 | 372 | 223.2 | 707.3 | 1422.28 | 991.75 | 1983.5 | 1387.68 | 2775.36 | 2101.56 |
64 | 384 | 230.4 | 753.66 | 1515.52 | 1056.77 | 2113.54 | 1478.66 | 2957.32 | 2298.47 |
66 | 396 | 237.6 | 801.5 | 1611.72 | 1123.85 | 2247.7 | 1572.52 | 3145.04 | 2398.1 |
68 | 408 | 244.8 | 850.82 | 1710.88 | 1192.99 | 2385.98 | 1669.26 | 3338.52 | 2522.88 |
70 | 420 | 252 | 901.6 | 1813 | 1264.2 | 2528.4 | 1768.9 | 3537.8 | 2697.65 |
Drawing of Galvanized Open Link Anchor Chain
![]() |
