| Brand Name: | Toptempo |
| Model Number: | TSM-5000 |
| Place of Origin: | Qingdao,China |
| MOQ: | 1 SET |
| Price: | USD 5000.00-8000.00 PER SET |
| Payment Terms: | T/T |
| Supply Ability: | 30 SETS PER MONTH |
| Delivery Time: | 7-14 days |
| Packaging Details: | Wrapped in plywood box |
| Voltage of Motor: | 380V |
| Structure: | Horizontal |
| Condition: | New |
| Warranty: | 2 Years |
| Type: | Automatic |
| Company Info. |
| TOPTEMPO INDUSTRIAL CO.,LTD |
| View Contact Details |
| Product List |
Steel Cord Conveyor Belt Splicing Tool, Steel Cord Belt Stripping Tool, Cord Stripper for Steel Cord Conveyor Belt, Upper and Lower Knives for Cord Stripper

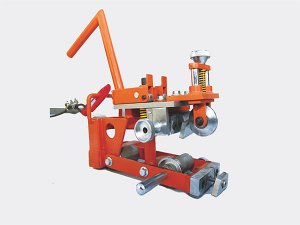

SteelCord Stripper is designed and used to strip the steel cords from steel cord conveyor belt which is to be spliced.

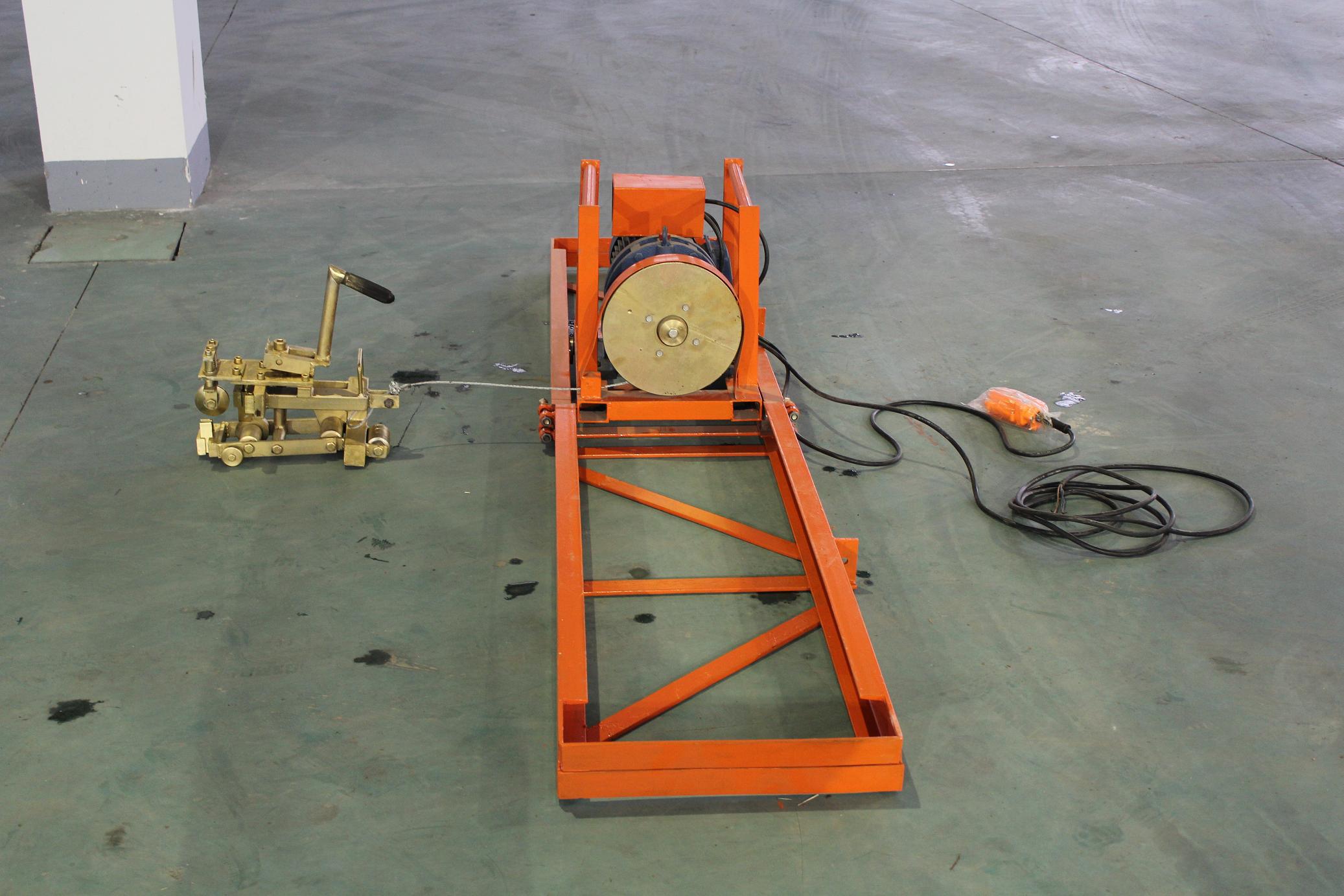

Electrically operated steel cord conveyor belt stripping system complete with all the accessories.
Consists of all equipment including cutting, pulling and sliding units with electrical winch.
The electrical motor is 3 phase, 380V, 50Hz. Operating switches and controls also equipped.
The operation can be carried out in the vulcanizing shop or on site.The cutting unit is suitable for cable pitches from 10~25mm and for cable diameters from 4.9~13.2 mm.The rubber cover thickness can be up to 12mm on the running side and up to 25 mm on the carrying side .The total belt thickness can be up to 40 mm
1.Voltage:380V
2.Power:1.5kw
3.Linear velocity:0.3m/s
4.Cable diameters:Φ3.5~13.5mm
5.Weight:103.8kg(work device:15.3kg, traction device:88.5kg)
6.Overall Dimension:590*360*470mm
7. Suitable for: ST5000 conveyor belt
| Upper and Lower Knives | Dia. of Steel Cord |
| R3 | ø4.5~5 |
| R4 | ø6~7 |
| R4.5 | ø7.5~8.1 |
| R5 | ø8.6~9.1 |
| R5.5 | ø9.7~10.5 |
| R6 | ø10.6~11.5 |
| R7 | Ø12 ~13.2 |
|
