Compact Taxi Fleet Management Tablet GPS Fleet Tracker Compact

Categories Fleet Management Tablet
Brand Name: UniStrong
Model Number: E9650-9
Place of Origin: China
MOQ: 5
Payment Terms: T/T
Supply Ability: 20000
Delivery Time: THD
Packaging Details: GIFTBOX PACKAGE
Cable interface function extension: M1~M5Cable interface function
M1 PORT: 10pin Micro connector Female B+,B-,ACC(9~36V)
M2 PORT: 8pin Micro connector male AHD camera
M3 PORT: 8pin Micro connector Female AHD camera
RAM: 2GB LPDDR3
ROM: 16GB EMMC5.0
SIM Card: 3G/4G SIM card
TF Card: Extended external storage
GNSS: GPS+BD,Ublox8030
GNSS antena interface: Fakra C interface*1
WiFi antena interface: Fakra K interface*1
4G antena interface: Fakra D interface*1
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

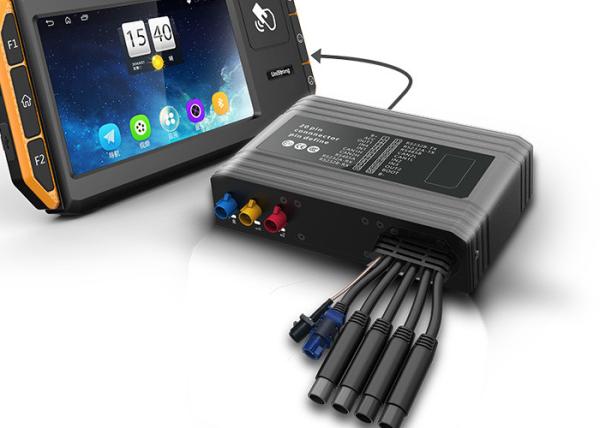

Compact Taxi Fleet Management Tablet GPS Fleet Tracker Compact

E9650 Truck/Taxi 4G navigation vehicle tracker for fleet management ADAS and face AI algorithm


Product feature:

1. Passed CE, E-mark RoHs certification

2. A new generation of E9650 Robust, compact, and still packed with the latest technology

3. Through the professional industrial design, wide operating temperature range and extremely powerful mechanical design, it supports the execution of tasks in harsh working environments.


Product application


1. The E9650 has functions like ACC detection, vibration alarm, SOS emergency call, remotely cut-off petrol/electricity, if connected with microphone, the user can hear what is happening around vehicle.

2. The E9650 is a smart 4G GPS tracking device which integrated LTE technology, GPS CEP2.5m technology, built-in antenna and sensors.

3. The strong shell without ventilation holes ensures that the front and rear panels can effectively prevent the ingress of dust and moisture.


Specification


Product appearance
ItemParameterStandard configuration
IP level IP65
Indicator 1:GPS LED*1 Yellow
2:4G LED*1 Green
3:WiFi LED*1 Red
Hardware configuration
ItemParameterDescription
CPUTypeQualcomm MSM8953,Octa core ; Cortex A53 64bit processor
Frequency2.0GHz
GPUTypeAdareno 506
RAMDDR32GB LPDDR3
ROMEMMC16GB EMMC5.0
SENSORAccelerometer3-aixs Accelerometer
WLAN Communication
TypeParameterDescription
WIFIWIFI module2.4GHz/5.8GHz;802.11 a/b/g/n/ac
BluetoothIn-buildBT2.1+EDR/3.0/4.1/4.2 BLE
GNSSIn-buildGPS+BD,Ublox8030
3G/4GIn-build
Module:EC60-CE cat6 (LTE 4G China)
FDD LTE:B1/B3/B5/B8
TDDLTE:B34/B38/B39/B40/B41
TDSCDMA:B34/B39
WCDMA :B1/B8
CDMA2000 : 1X/EVDO:BC0
GSM:900/1800MHz
M1~M5Cable interface function extension
TypeParameterDescription
M1 PORT (10pin Micro connector Female)ExtensionB+,B-,ACC(9~36V)
M2 PORT (8pin Micro connector male)ExtensionAHD camera
M3 PORT(8pin Micro connector Female)ExtensionAHD camera
M4 PORT(8pin Micro connector Female)ExtensionLVDS camera
M5 PORT(10pin Micro connector male)ExtensionFPD LINK LCD Monitor transmission
RS232
Other extension interface
TypeParameterDescription
SIM Card3G/4G SIM cardnano-SIM card interface x1
TF CardExtended external storageSupported
GNSS antena interfaceFakraFakra C interface*1
WiFi antena interfaceFakraFakra K interface*1
4G antena interfaceFakraFakra D interface*1
Accessories
TypeParameterDescription
Host cable M1~M5interface cable
GNSS/4G/WiFI antenaExternal antenaGNSS/4G/WiFI Three-in-one antenna
CameraLVDS cameraLVDS1080P camera*1
Software configuration
TypeParameterDescription
Operating systemVersion of OSAndroid7.1
Package
PackagePackage requirementLogo,Manual:Chinese-English
SNDevice SNDevice SN:E9650CN1805000001~E9650CN1805000043,05 means production week
Certification
TypeParameterDescription
Certification3CYes, support
ROHSYes, support
CEYes, support
E-markWe can get E-mark but we will check the cost
Reliability
TypeParameterDescription
Working environmentWorking Temperature-20℃~+70℃ Humidity:0%~90%RH
Storage Temperature-30 °C to 80 °C
VibrationISO16750 / MIL-STD-810G

Service
1.Standard free 1 year warranty for the product;
2. Sample test and debug support;
3. ODM/Customized requirements assessment and quotation;
4. Product ID design ;

FAQ
1. Question: How to contact you for detail information?
Answer: You can contact us through "Contact" button. Or you can write email to us at: mk.hu@unistrong.com

2. Question: Are you manufacture?
Answer: Yes, we are the original manufacture. We have 50-person R&D team to support various customer’s demands.

3. Question: Will the sample provide software SDK?
Answer: Yes, we will support software debug according to your demands and requirements.

4. How fast you could make the delivery?
Answer: 2 weeks for standard configuration; And if the product are customized, the delivery date will be longer according to materials status.
