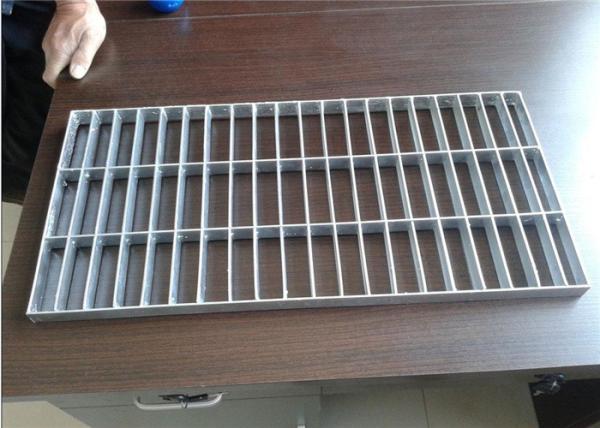

Hot Dipped 32 x 5mm Galvanized Steel Grating/hot dipped galvanized steel grating/ stainless steel heavy duty steel grating
| product name | steel grating , steel grille |
| Material Standard | Low carbon steel (ASTM A36, A1011, A569, S275JR, SS304, SS400,UK: 43A) |
| Bearing bar | 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm,or as customers’ requirement. |
| Bearing bar pitch | 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm,or as customers’ requirement. |
| Cross bar | 5x5, 6x6, 8x8mm (twisted bar or round bar) |
| Cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’ requirement. |
| Surface treatment | Black, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers’ requirement. |
| Flat bar type | Plain, Serrated (tooth-like), I bar (I section) |
| Galvanizing standard | CN: GB/T13912, US: ASTM (A123), UK: BS729 |
| Steel grating standards | A. China: YB/T4001-1998 B. USA: ANSI/NAAMM (MBG 531-88) C. UK: BS4592-1987 D. Australia: AS1657-1988 E: Japan:JJS |
| Cross Rod Pitch | load Bar Pitch | load Bar Specification(Width×Thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Cross Rod Pitch | load Bar Pitch | load Bar Specification(Width×Thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Steel grating is widely used in parking lot,walkways, platforms, stairs, fences for mining industry, power plants, Petrochemical industry, machinery, light industry, railways, bridges, docks, schools, water plants, sewage treatment plants, etc.
Packing details
1. wooden pallet
2.as customer'r demand
Port: Tianjin or as customer's requirement
Lead time: 10-15 days after payment
1.Is your company near the train station or airport?Yes.Our company
is close to the Peking Airport and Hengshui North Station.We can
pick you up at the station or airport.
2.Can you provide samples for free?
Of course we can.
3.What are your payment terms?
T/T,L/C,Western Union or Credit card.
4.How long have you been in this field?
More than 15 years.
|
