| Categories | 13MP Camera Module |
|---|---|
| Brand Name: | Sinoseen |
| Model Number: | SNS-USB214-V1.0 |
| Certification: | RoHS |
| Place of Origin: | Shenzhen,China |
| MOQ: | 3 |
| Price: | negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
| Delivery Time: | 2-3weeks |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Type: | USB camera module |
| Sensor: | 1/3.06" SONY IMX214 |
| Resolution: | 13MP (4208*3120) |
| Dimensions: | 19.25mmx8.5mm,(customizable) |
| Lens FOV: | 120°(optional) |
| Focus Type: | Fixed focus |
| Interface: | USB2.0 |
| Feature: | HD |
| Company Info. |
| Shenzhen Sinoseen Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

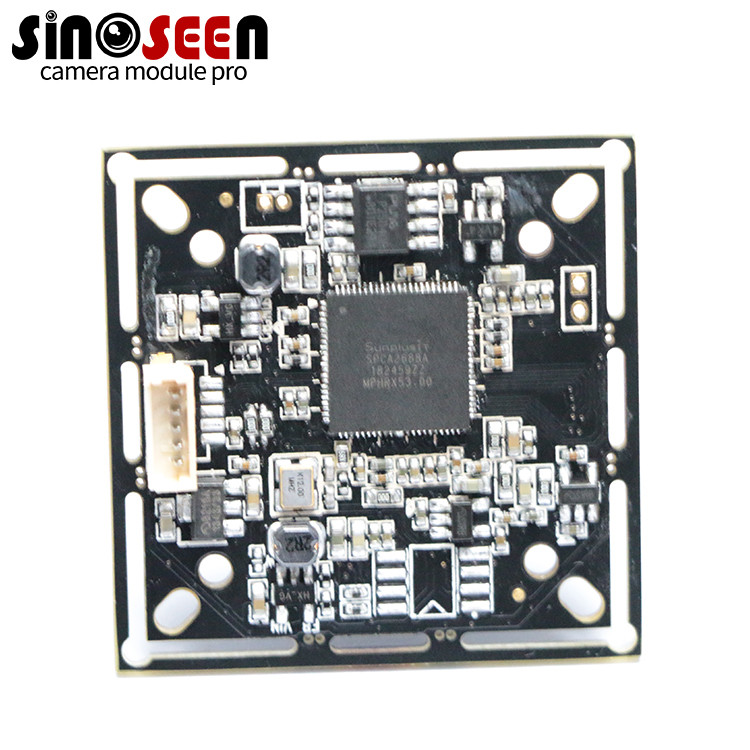

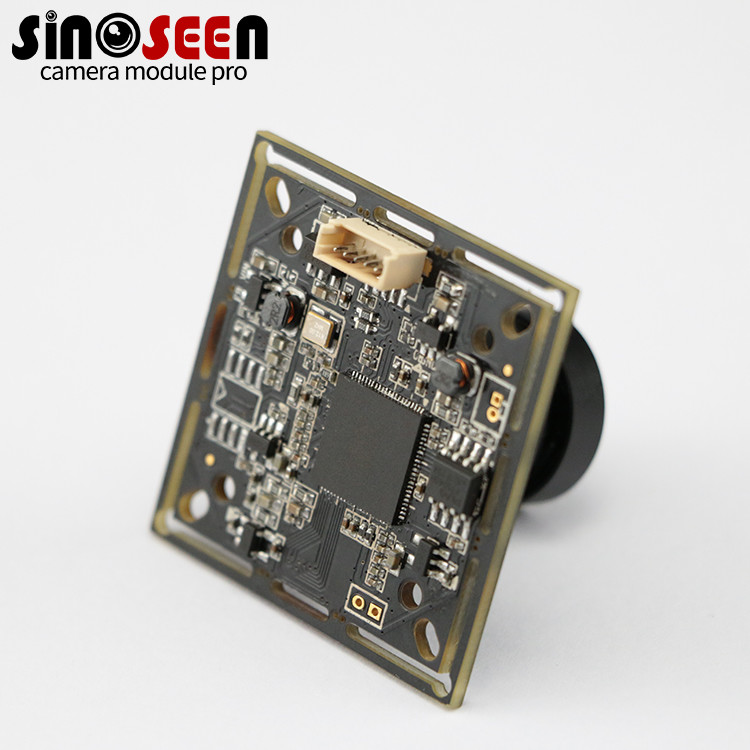

Sony IMX214 Sensor 13MP Camera Module HD Wide Angle Fixed Focus
Sinoseen Good Price 13MP Wide Angle Fixed Focus Hd USB Camera Module With Sony IMX214 Sensor
13MP Camera Module
This is a special USB camera module, the chip is SONY IMX214. Maybe
you will be more curious, why it is a USB camera module, but it
uses a MIPI camera module. Now, let me solve your question, because
sometimes there are many finished camera modules on the market. In
order to solve the financial pressure, or sometimes the market is
not good, they will deal with these finished modules at
preferential prices. Sometimes it is even cheaper than the price of
the chip itself.
Therefore, if you need a high-resolution USB camera module and hope
it is cheap enough, then this solution will be your best choice. Of
course, such finished modules are not always available.
Specification
Pixel Size | 1.4μm x 1.4μm |
Effective Pixels | 4208*3120 |
Image Sensor | 1/3.06" |
Sensor Type | SONY IMX214 |
Lens View | FOV120°(Optional),F/N(Optional) |
TV Distortion | <1% (Optional) |
Temperature(Operation) | 0～60℃ |
Temperature(Storage) | -20～70℃ |
Dimension | 19.25*8.5mm (Customizable) |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application
scenarios, resolution, size, and lens requirements. We will have a
professional team of engineers to assist you in choosing the most
suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to
confirm the details with you. Once the drawing is confirmed, we
will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it
is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we
will send the samples to you via DHL FedEx UPS or any other courier
methods, usually within a week.
|
