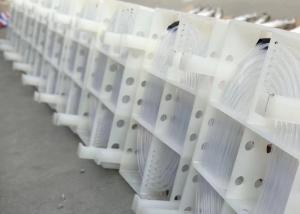

PTFE Tube High Purity Immersion Heat Exchanger For Chemical Solution

High-purity Heating And Cooling Chemical Solution Immersion Coils Of FEP/PTFE/PFA

FEATURES

All wetted parts of fluoropolymer (FEP, PFA, or PTFE) construction.

Heavy duty CPVC mounting bracket and 1/8-inch thick perforated guard helps protect the coil from damage.

Heavy wall tubing improves circulation and minimizes pressure drop.

SPECIFICATIONS

Standard coils are FEP and rated up to 30 PSI steam service. PFA coils are available for steam service up to 60 PSI.

5.5 square foot to 120 square foot of exchange area standard.

10 PSI minimum steam pressure required for operation.

Tubing sizes: 1/2 inch (13mm) diameter for larger coils and 1/4 inch (7mm) diameter for smaller coils.

The products are made of (PTFE, FEP, PFA,) materials. The product material is strictly designed according to the customer's requirements to meet the technical conditions of the process. The product is assembled by using tube bundles (ø3, ø5, ø4, ø4, ø5, ø6,... ø12) to penetrate through the flanges at both ends to form heat exchange The inlet and outlet of the heat exchanger are assembled and fixed with (PP, PVC, PTFE, PVDF frame), which can prevent the damage of the heat exchanger due to the collision of the workpiece.

FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.
Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.
Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.
Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.
Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.
Q: How late can you ship?
A: Normally 7 days after comfirmed the order.

PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.
As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive
