Large Torque H/B Heavy Duty Helical Gear Reducer Cylindrical Speed Reducer For Wind Turbine

Large Torque H/B Heavy Duty Helical Gear Reducer Cylindrical Speed Reducer For Wind Turbine

Product description

Specification

1) Output speed: 1.7~1200r/min
2) Output torque: up to 47,000N.m
3) Motor power: 2.52~5366kW

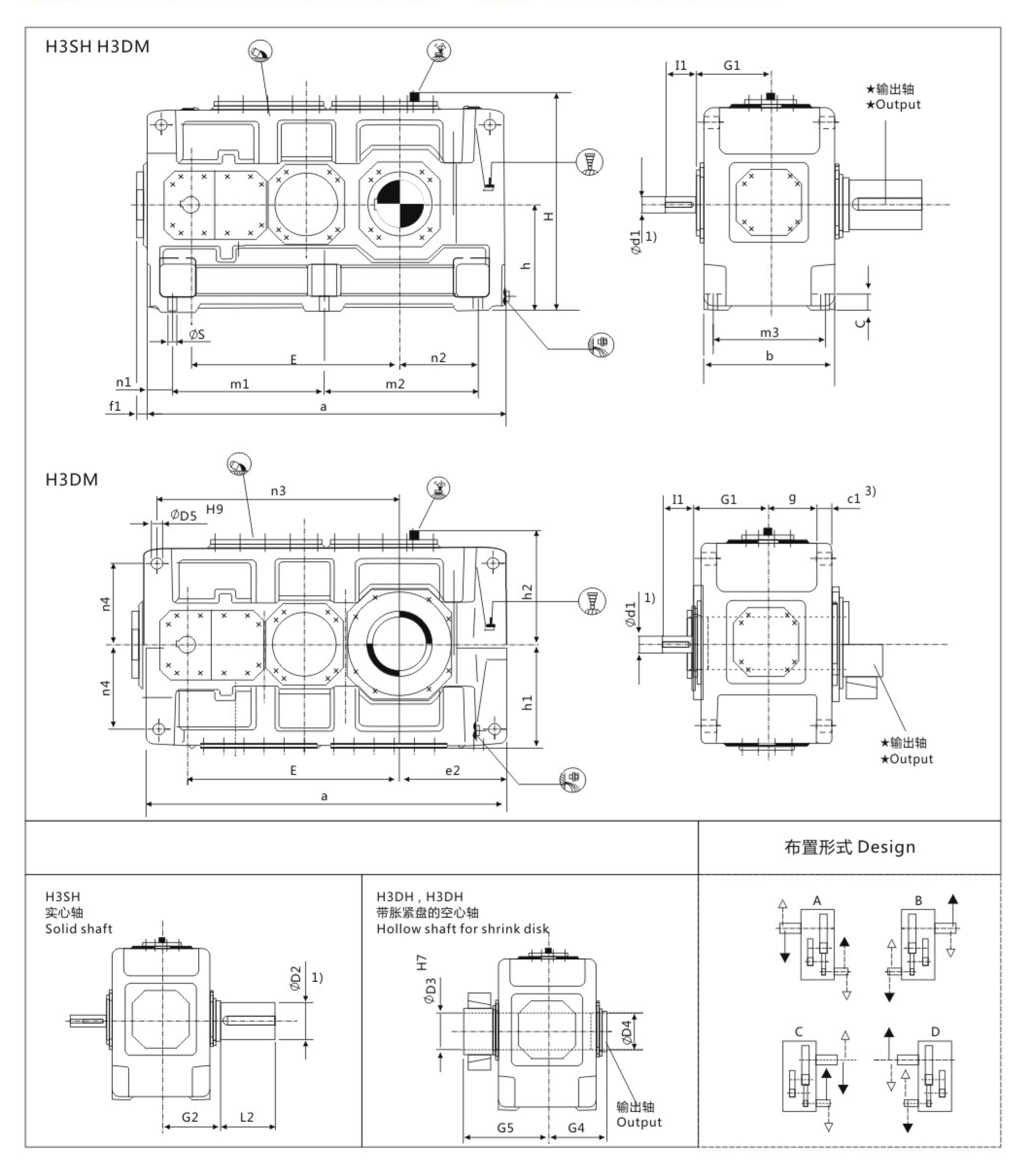

4) Mounted form: foot-mounted ,flange-mounted, axis mounted, shrink mounted

Features

1. Generally accepted design of H. B Series Gear Units, transformable to industry-specific Gear units according to customer's requirement
2. Parallel shafts, right-angled shafts, horizontal or vertical mounting modes, reduced Components and increased models.
3. Sound-absorbable structure, lager surface area and bigger fan; Advanced grinding Process of cylindrical and bevel gears, resulting in limited temperature rise, low noise, Improved stability and larger transmission power.
4. Mounting mode: Foot-mounted, flange-mounted, swing base-mounted, Torque-arm-mounted.
5. Input mode: Motor connection flange or input shaft
6. Output mode: Solid shaft with parallel key, hollow shaft with parallel key, hollow shaft With shrink disk, hollow or solid shaft with involute splines, solid shaft with flange.
7. Obtaining larger ratio combined with R, K and S series

Henan Dongtai Gear Co., Ltd. was founded in 1994. It’s a high-tech enterprise which can design and manufacture all kinds of gear reducers; The special reducer is non-standard design and customized.

Our main products are H & B series heavy-duty industrial gearbox, ZDY、ZLY、ZSY、ZFY series hard tooth surface cylindrical gear reducer; DBY/DCY/DFY/DCYK series hard tooth surface bevel gear reducer; QY, ZQ, ZSC series crane special reducer; R series helical gear reduction motor, F series parallel shaft helical gear reduction motor, K series spiral bevel gear reduction motor, S series helical gear worm gear reduction motor;0.5T-20T electric hoist reducer and various of shaft parts. We have the company's unique patent product which is anti-seepage oil reducer (The patent number: 200420003269.7). The product completely solves the problem of oil leakage of gear reducer which has plagued the industry for many years. The products have been sold to nearly 30 provinces, cities and autonomous regions in China, at the same our products are matched with more than 30 large crane factories in the industry. The company has excellent equipment, perfect process equipment, strong technical force, advanced testing instruments and complete testing means. The company undertakes the production and development of various standard and non-standard gears, and we have has passed ISO9001:2001 Quality System Certification.

The company is willing to provide the high quality, low price, high quality service business, the principle of contract and credit, the enterprise spirit of unity, development and innovation, to go hand in hand in economic construction, support each other and create a brilliant future together with friends.
