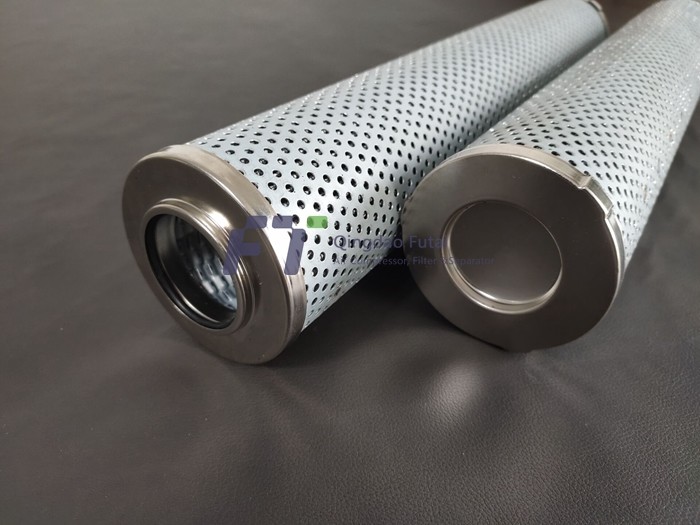

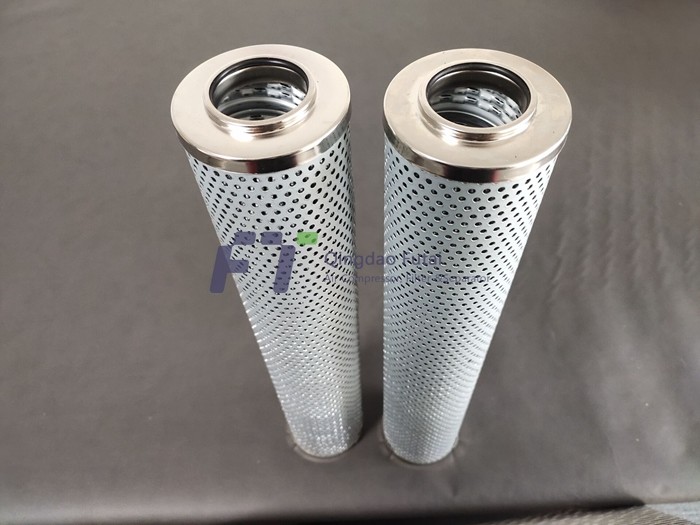

Customized Hydraulic And Pneumatic Equipment Hydraulic Oil Filter Cartridge

Product Description:

The hydraulic filter element is installed in the fuel tank, which simplifies the system piping, saves space and makes the system layout more compact. They are designed with automatic shut-off valves. When the system is maintained, the oil in the fuel tank will not return. After replacing the oil filter, they are replaced. Will be contaminated at the same time, the oil will not flow out.

The hydraulic return filter element is installed in the oil circuit of the hydraulic system to remove the worn metal powder and other mechanical impurities in the hydraulic system components to keep the oil circuit clean and prolong the life of the hydraulic system.

The oil filter element is designed with a bypass valve. When the pressure difference reaches 0.35MPa, if the filter cannot be replaced immediately, the bypass valve at the top of the oil filter will automatically open (pressure difference is 0.4MPa) to protect the system. Normal operation.

They also designed magnetic devices. Magnetic devices can filter out ferromagnetic particles above 1 micron.

1.Use imported Depthype filter material, tapered hole structure, gradient filter to maximize particle interception and extend service life.

2.Use Hightech support materials. High-tech support materials not only support filters, materials and avoid compression set, but also protect materials from damage during processing.

3.Use special spiral winding to make the filter layer firmly connected. The fixed pleat distance ensures uniform flow of fluid through the filter layer. Not only can the pressure drop be improved, but the service life can be extended.

If you don't find the part number you want in my online shop, please do not hesitate to contact us, Maybe I can check it for you. At the same time, we are a factory and can also customize unconventional filter elements for you at any time.

​

Qingdao Futai, Air Compressor Filter Manufacturer in China.
