Categories | Motorized Flip Socket |
---|---|
Certification: | CE ROHS |
Place of Origin: | Guangdong, China |
Brand Name: | Boente |
Model Number: | EK9233UK |
MOQ: | 50 Pieces |
Price: | $55.00/Pieces 50-199 Pieces |
Packaging Details: | 1pcs/box 8box/carton |
Warranty: | 12 months |
Customized: | Yes |
Type: | Tabletop Socket |
Grounding: | Non-Grounding |
Rated Voltage: | 110V-250V |
Rated Current: | 10A |
Application: | Commercial |
WIFI: | No |
Product name: | table mount socket outlet |
Material: | Aluminum Alloy |
Color: | Silver/Black |
Panel corner: | Round |
Configuration: | 2*UK power+2*network+1*h-d-m-i+1*vga+1*3.5 audio+1*usb |
Product Size: | 405*110*110mm |
Cutout size: | 375*104*104mm |
eletrical flip up angle: | 180 degree |
Certificate: | CE ROHS |

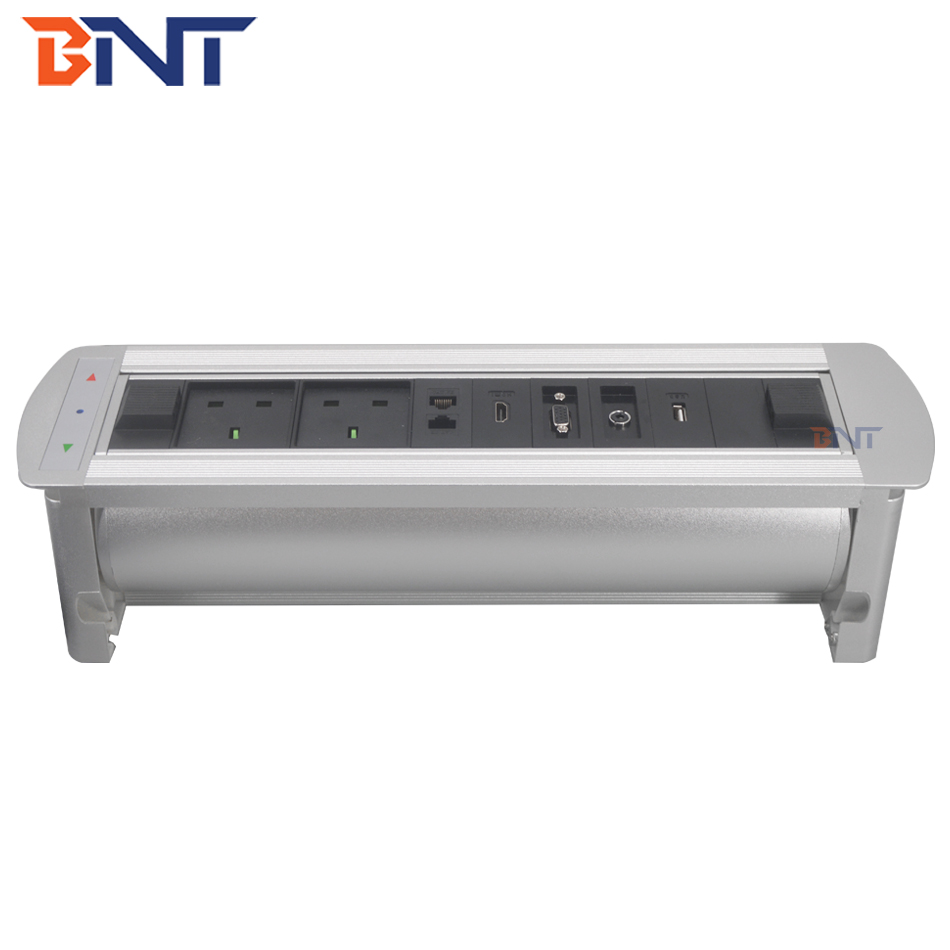

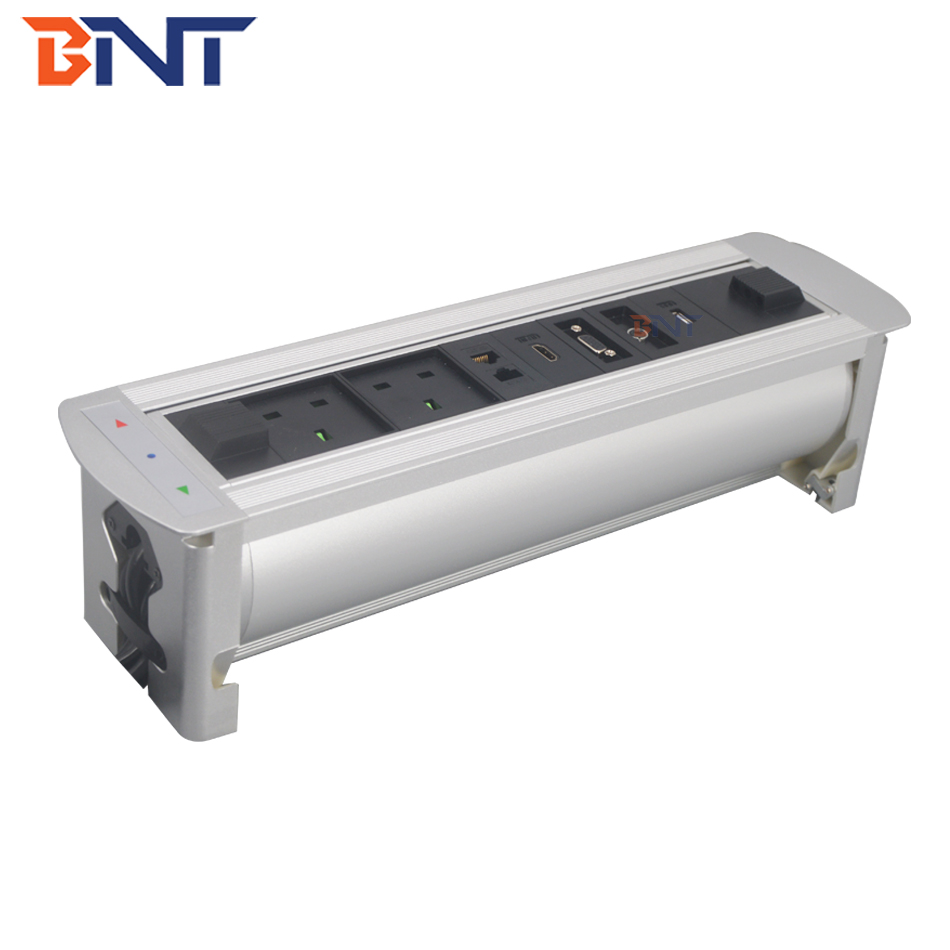

Multifuctional 180 degree overturn electrical flip up table mounted socket outlet
<
Introduction
EK series table socket outlet is designed as a eletrical flip up
table mounted socket outlet with muti-functional configuration, it
can be hidden into the table to anti-electric shock and save the
space.When someone wants to use the socket, just to press the
switch control, the socket panel will automatically 180 degree
roate from the table, then the socket is exposed to the tabletop
for use. When it is unuse, it is closed by 180 degree roatation to
flush with the desktop.
It’s widely used for the high-tier office table, conference room
table AV solution, hotel room and training room.
Selling Point:
1.Motorized flip up by motors,convenient to control
2.Hidden design to save more space and makes a modern office
environment
3.Competitive price and high quality
4.Made by Aluminum alloy material, which is corrosion resistant,
wear-resistant,smooth surface and not easy to scratch.
5.High quality 3mm panel thickness aluminum panel surface, not easy
to bend
6.1PCS customized is availble, the modules can be customized as the
customer's requirement
7.Cable length are available with different length to 1.0m ~ 5m
8. Easy installation, just cut out a square hole on the table and install the socket accordingly.
Specification:
Model No. | EK9233UK |
Product name | table mounted socket outlet |
Catalogy | Electric rotating interconnection box |
Application | High-tier office, conference room |
Material | Aluminum alloy surface panel |
Rotating angle | 180 degree |
Color | Silver / Black |
Panel Size | 405*110mm |
Box size | 375*102*105mm |
Configuration | 2*UK power+2*network+1*h-d-m-i+1*vga+1*3.5 audio+1*usb |
How to install and operation:
1. Cut out a properly square hole on the table;
2. Put the socket into the square hole, the connction cable hidden under the table;
3. The indicator light is illuminated when product power up;
4. Press the green touch button if use, the product will rotate 180
degree to the desktop.
5. Press the red touch button if unused, the product will rotate 180 degrees to the hidden position.
![]() |
