Dia 160cm Conical Rock Drilling Auger With Round Shank Chisel

Categories Drilling Auger
Brand Name: BJTUFF
Model Number: 400-3000mm or as required
Certification: ISO9001
Place of Origin: China
MOQ: 1 Piece
Price: Prices are determined by quantity and model of product
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 300 Unit/Units per Month
Delivery Time: 3-5 days after payment
Packaging Details: standard export packs -Wood case outside, plastic cases inside.
Material: 16Mn or GB-Q355B
Teeth Series: Bullet Teeth
Color: Black or as required
Kelly Box size: 200*200mm as usual or as your required
Application: Rotary Drilling Rig
Product name: Conical Rock Auger
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

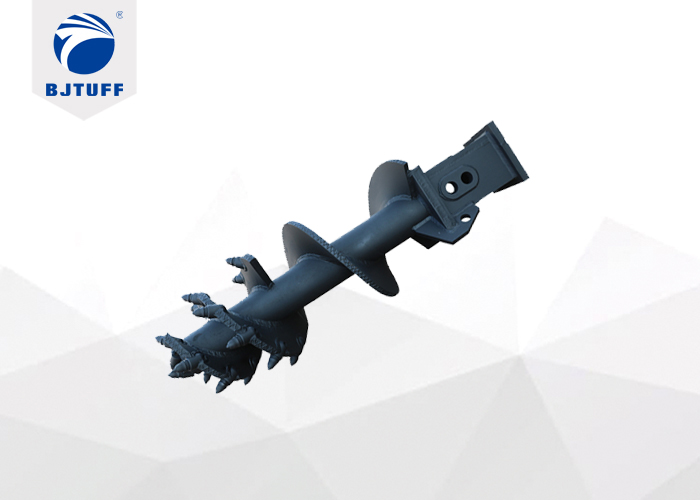

Dia 160cm Conical Rock Drilling Auger With Round Shank Chisel

Various Models Conical Rock Drilling Auger Bucket With Round Shank Chisel


Feature:
Located by pilot, conical structure drilling into the rock;
Double cutter bears uniform force and can avoid inclined hole ;
Double spiral easy to carry soil, but single spiral is easy to dump spoil when
meeting cohensive soil;
Applicable
layers:
pebble,mudstone,sandstone layer,medium weathered rock, bedrock;


Model List
Cutting Dia.
Spiral HIT.
Spiral Pitch
Spiral THK.
Spiral OD.
Center Tube OD.
Teeth No.
φ600
1200
600+400
30+20
550
219
15
φ800
1400
600+400
30+20
750
245
21
φ900
1400
600+400
30+20
850
245
22
φ1000
1500
600
30+20
950
245
23
φ1200
1500
600
30+30
1150
245
25
φ1500
1500
600
30+30
1450
273
32
φ1600
1500
600
30+30
1550
273
34
φ1800
1500
600
35+30
1750
273
38
φ2000
1500
600
35+30
1950
273
38
φ2200
1500
600
35+30
2150
273
40
φ2500
1500
600
35+30
2450
273
40

Remark : The length is in milimeters, weight in kilograms.


Customizable Items:


Cutting Diameter Custom : various cutting diameter based on demand, like φ620,φ850 etc.
Spiral Height Custom : design as demand such as
heightening spiral to increase the efficiency for drilling more once.
Spiral Pitch Custom : adjust the spiral pitch according to different layers;
Key Component Reinforce Custom : reinforce auger to extend life cycle;
Kelly Box Custom : custom kelly box size based on the kelly bar, like 130*130, 150*150 and etc;
